Series Name
|

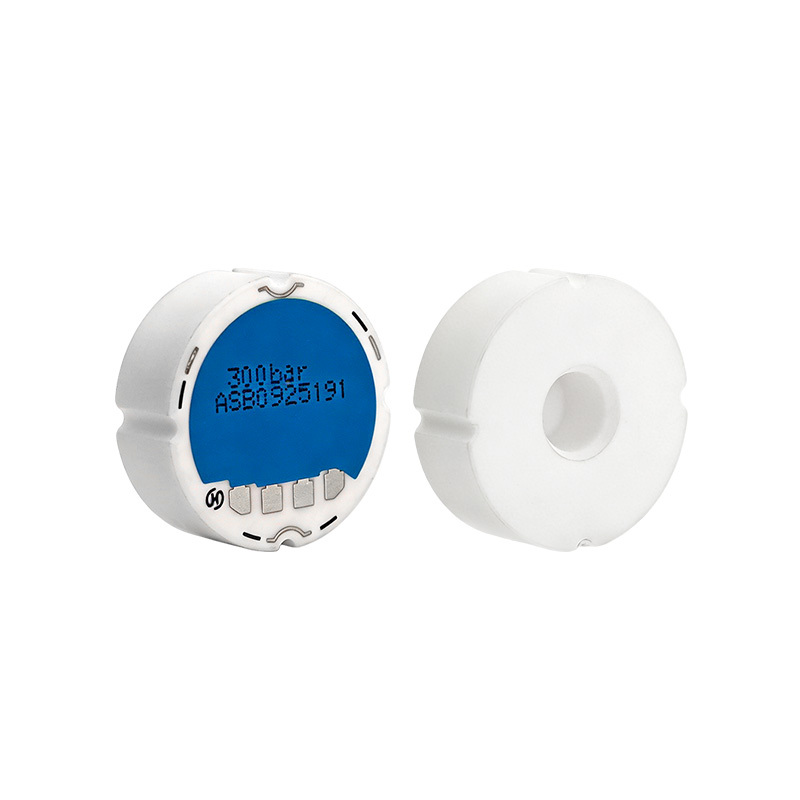

CPS18635K、CPS18350K
|
|
Type
|

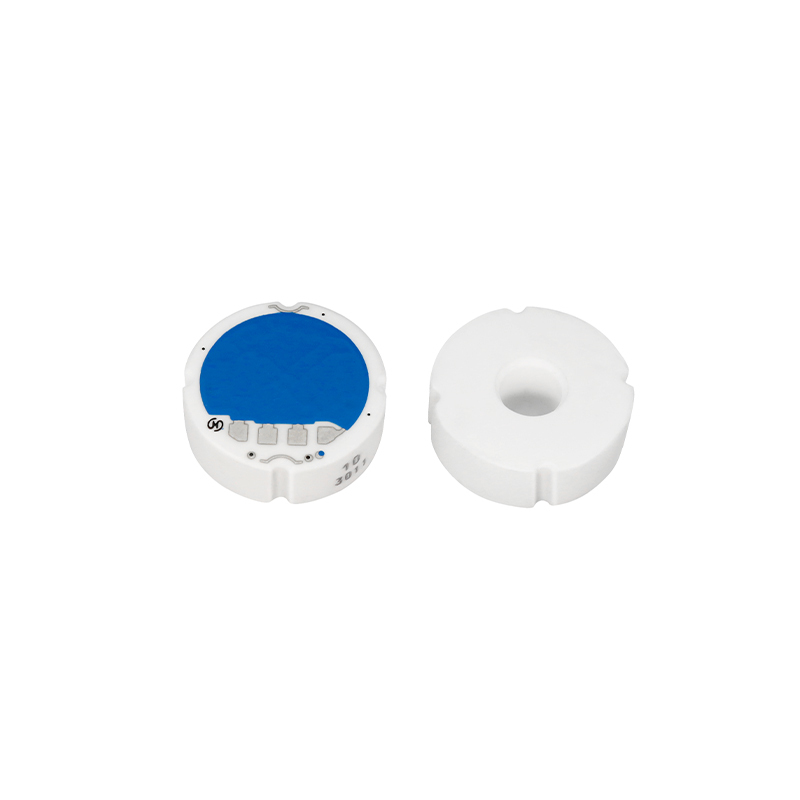

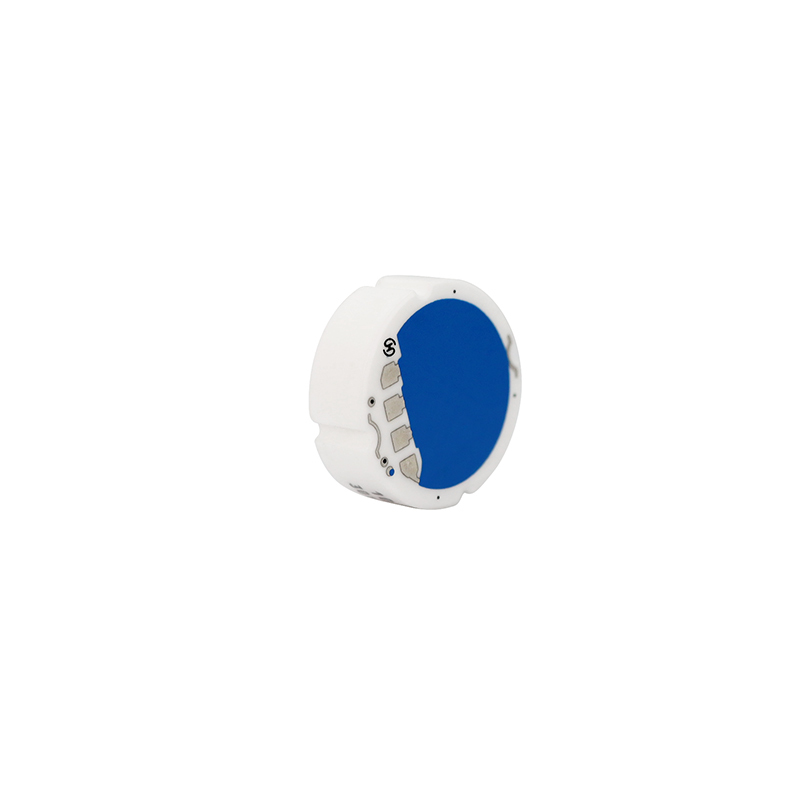

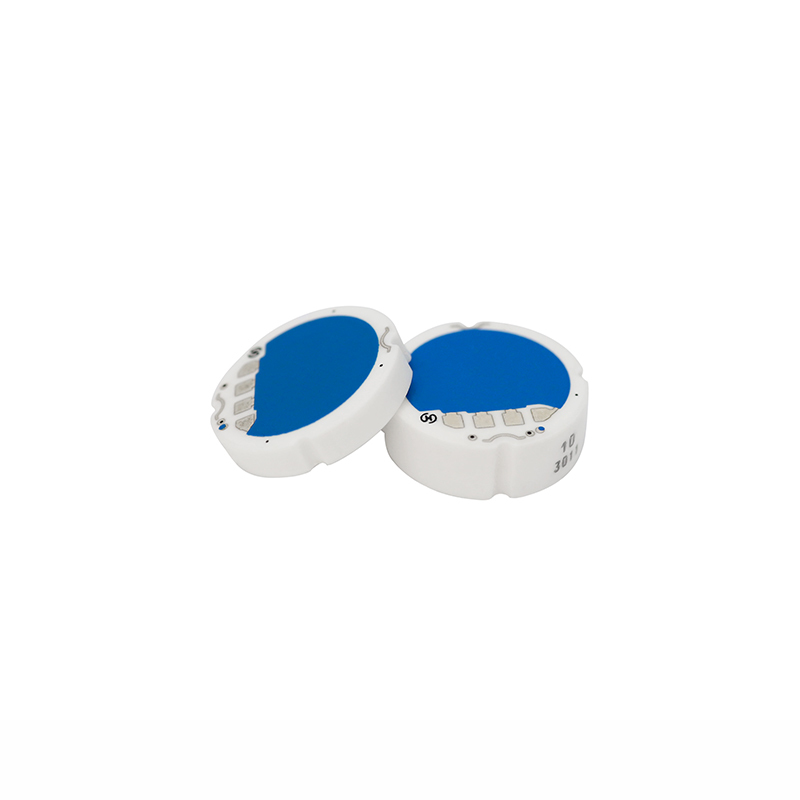

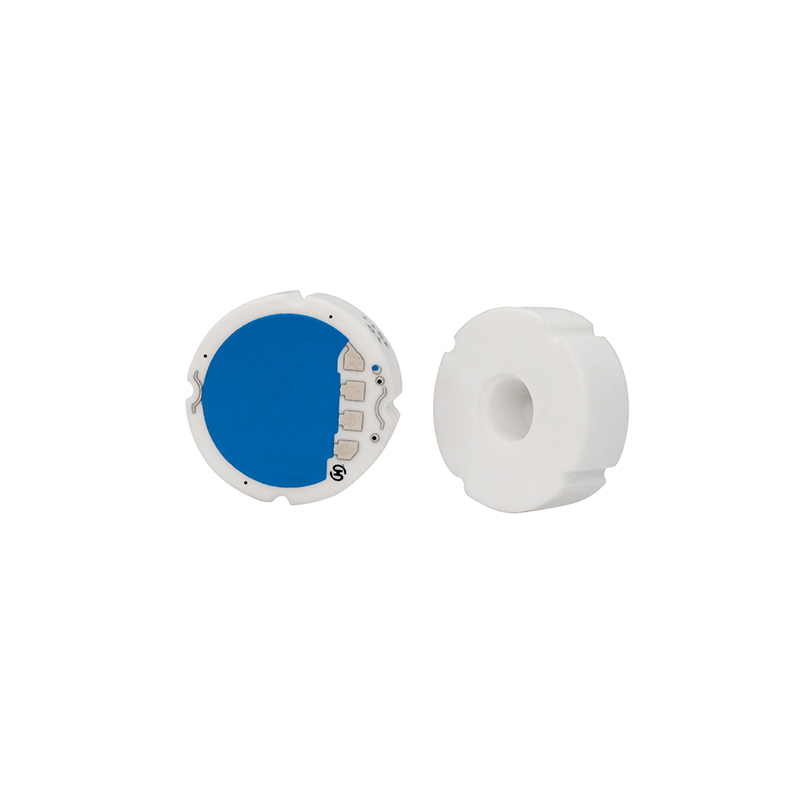

Small-hole 5.22mm Monolithic Piezoresistive Ceramic Pressure Sensor
|
|
Measured pressure type
|
Gauge
|
|
Size (diameter x height)
|
φ18x6.35mm、φ18x3.50mm
|
|
Supply voltage
|
2-30V DC
|
|
Bridge road impedance
|
※10.0KΩ±30%
|
|
TCR
|
≤100ppm/℃@-40℃~125℃
|
|
Working pressure
|
25/40/50/100/150/200/300/400bar
|
|
Overload pressure
|
＞2×FS
|
|
Burst pressure
|
＞3×FS
|
|
Operating temperature
|
-40℃~150 ℃
|
|
Storage temperature
|
-40℃~150 ℃
|
|
Zero offset
|
※0±0.2mV/V
|
|
Sensitivity calculation formula△C:
|
※1.5-3.5mV/V, Typ:2.5mV/V/FS
|
|
Output accuracy
|
0.50% FS Max.@20-25℃（≤100Bar），1.0% FS Max.@20-25℃（＞100Bar）
|
|
Response time
|
＜ 2mS
|
|
Insulation resistance
|
＞ 2KV
|
|
Zero-point long term stability@25℃
|
Zero@25℃：＜0.25 FSO (no time accumulation）
|
|
Cycle life
|
＞2 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃
|
|
Working medium
|
oil,water,gas,refrigerant, coolant, chemical solvents, detergents, etc
|
