Air Compressor Pressure Monitoring
HXL-100E Compressor Pressure Monitoring Fit
HXL-100E is built for industrial air compressor pressure measurement where engineers need ceramic-core durability, pressure shock resistance and output flexibility. Work with a pressure transmitter manufacturer or a pressure transducer manufacturer by preparing the operating range, medium, output signal and installation details early.
-40 to 135 deg Ctemperature compensation range
5 to 8X F.S.listed overload resistance
Multiple outputsconfiguration discussion needed
Compressor Duty Boundary
Match The Transmitter To The Compressor Duty
A compressor transmitter is selected around the conditions it must survive and the signal it must deliver. For HXL-100E, the strongest published selection signals are the ceramic pressure sensor core, wide temperature compensation, high overload margin, shock resistance and configurable output options.
- Pressure eventsReview normal range, startup spikes, shutdown conditions and the maximum pressure the transmitter may see during service.
- Medium and mounting faceCompressor points may involve air, moisture, oil mist, particles or temperature variation. Confirm how the flush diaphragm interface meets the medium and mounting position.
- Control-system signalChoose the output format needed by the controller, display or monitoring system before finalizing the pressure transmitter configuration.
Configuration Inputs
Plan The Signal, Range And Interface Before RFQ
The fastest discussion is not just a model name. It combines the compressor duty point with the mechanical and electrical interface the finished transmitter must support.
| Pressure range | State the working range, expected pressure spikes and the safety margin required by the compressor system. |
|---|---|
| Measured medium | Describe whether the measurement point may involve dry air, oil mist, water, particles or other compressor-side conditions. |
| Output signal | List the control-system input requirement so the multiple-output capability can be matched to the receiving equipment. |
| Installation details | Confirm port, thread, sealing, connector, cable routing and available space around the compressor measurement point. |
| Quantity and customization | Share forecast quantity and any custom specification needs when the project requires a tailored transmitter configuration. |
For purchasing teams
Use the model, application, range and quantity together. A short RFQ with these fields reduces back-and-forth and avoids terminology-only matching.
For integrators
Confirm how the transmitter output enters the compressor control architecture, especially when the receiving device expects a defined signal format.
Terminology Bridge
Read Sensor, Transducer And Transmitter Terms Together
Industrial catalogs often use related words for different layers of the same measurement assembly. Treat each term as a clue to function, then confirm the final construction and output.
Ceramic pressure sensor core
The core is the sensing layer that responds to pressure. It supports the measurement approach, while the finished transmitter still depends on electronics, housing, sealing and output.
View ceramic-core categoryPressure transducer
A transducer emphasizes conversion from applied pressure into an electrical response. It may be a component, a module or a packaged industrial measurement product.
View pressure productsPressure transmitter
A transmitter usually emphasizes a conditioned signal that can be sent to a controller, display or monitoring system. Output and supply requirements still need project confirmation.
Review HXL-100ERelated Pressure Products
Compare Nearby Measurement Options
When HXL-100E is too specific to compressor duty, review adjacent HXL pressure products by application, output and installation environment.

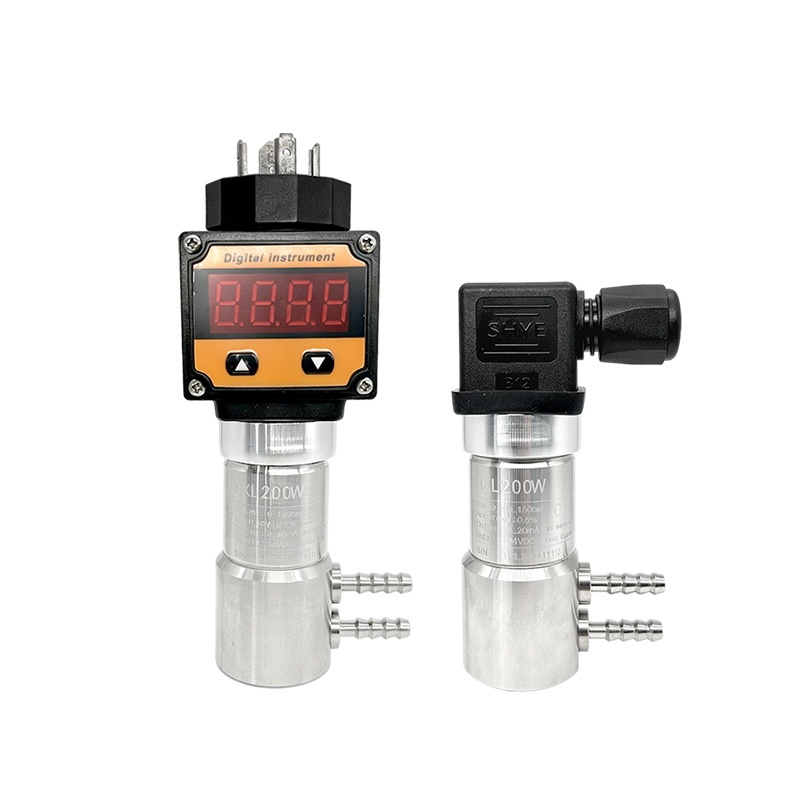

HXL-200W Micro Differential Pressure Sensor
Consider this route when the project centers on micro differential pressure, multiple outputs and protected industrial measurement.
View HXL-200W

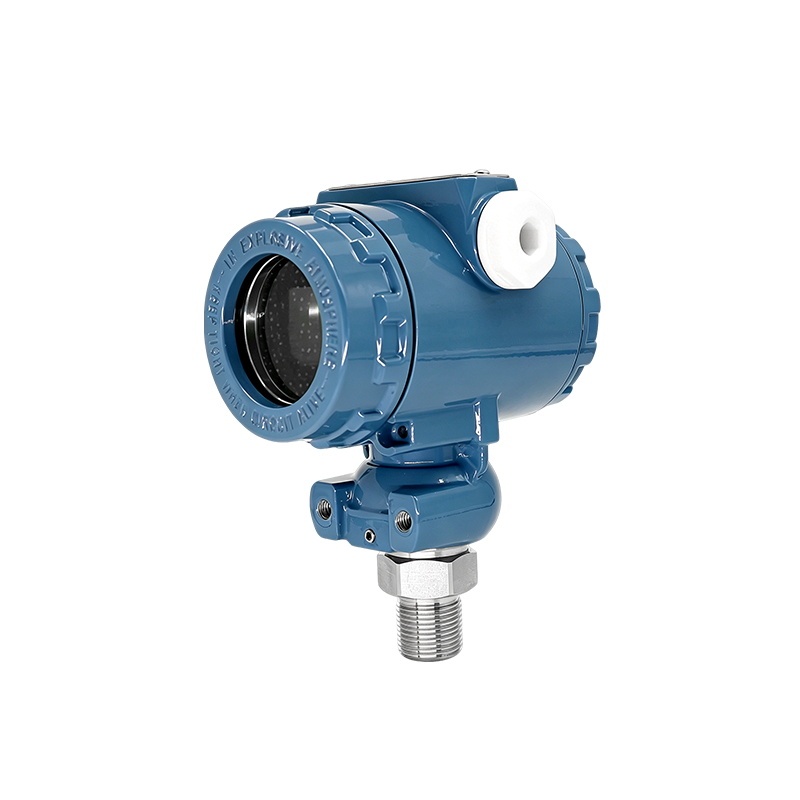

HXL-100F Hydraulic And Pneumatic Transmitter
Use this comparison point for hydraulic or pneumatic pressure work where high precision and burst resistance are part of the selection brief.
View HXL-100F

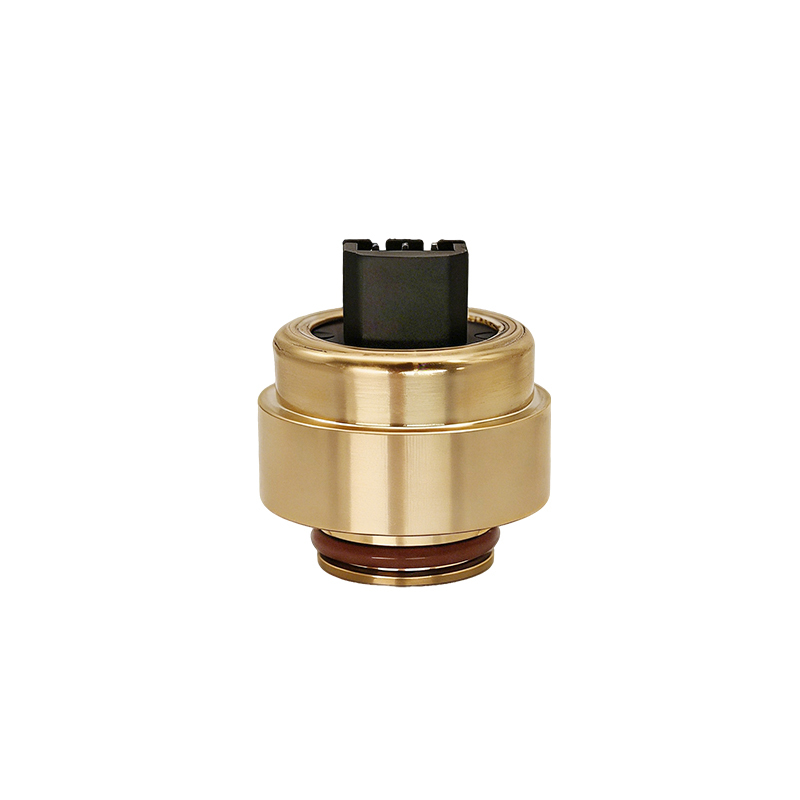

Water Pump Pressure Transmitter
Review this option when the measurement point belongs to variable-frequency water supply, fire protection, municipal water or HVAC circulation equipment.
View water-pump transmitterTechnical Reading
Clarify The Terms Behind Compressor Pressure Measurement
These three technical articles help engineering and purchasing teams align terminology before confirming a transmitter configuration.
Ceramic Core And Flush Diaphragm In Compressor Transmitters
Use this when the project needs a clearer boundary between the sensing core, diaphragm interface and finished transmitter assembly.
Read the compressor article
Ceramic Pressure Sensor Cores And Flush Diaphragm Designs
Read this before treating ceramic material, flush geometry and transmitter performance as the same purchasing requirement.
Read the design article
Pressure Transmitter Vs Pressure Transducer
Use this comparison to decide whether the conversation should focus on conversion, packaged output, wiring or the control-system signal.
Read the terminology articleEngineering FAQ
Questions To Settle Before Selecting HXL-100E
What compressor information should be prepared before discussing HXL-100E?
Prepare the pressure range, measured medium, expected output signal, installation environment, quantity, and any customization needs. These inputs help narrow the pressure transmitter configuration.
Why does the ceramic sensing core matter for air compressor use?
The HXL-100E uses a special ceramic pressure sensor core for pressure shock resistance and overload tolerance. The complete fit still depends on the pressure range, medium, connection, output, and operating environment.
What temperature range is listed for the HXL-100E?
The product information lists a temperature compensation range from -40 to 135 deg C. Confirm the actual installation temperature and medium conditions before final selection.
How should overload and burst pressure be interpreted?
HXL-100E is described with overload resistance above 5 to 8 times full scale and maximum burst pressure up to 8 times full scale. These values are selection signals, not a substitute for matching the rated range and application details.
Is a pressure transmitter the same as a pressure transducer?
The terms often overlap. A transducer emphasizes pressure-to-electrical conversion, while a transmitter usually emphasizes a conditioned output for a controller, display, or monitoring system.
Where can engineers review related HXL pressure products?
The pressure transducer collection includes related HXL pressure products for hydraulic, pneumatic, water-pump, differential-pressure, and other industrial measurement applications.
