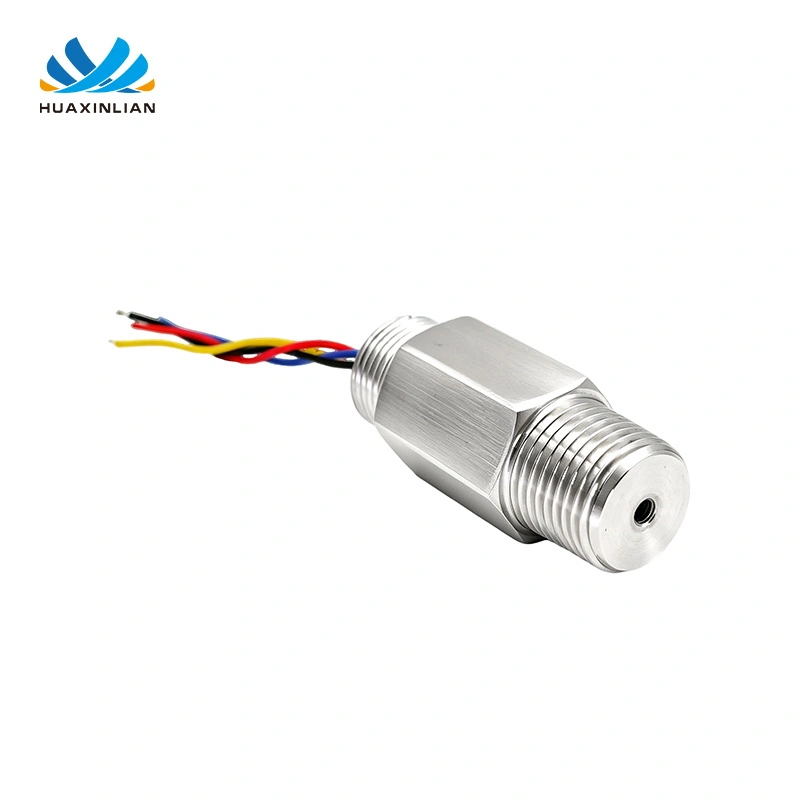

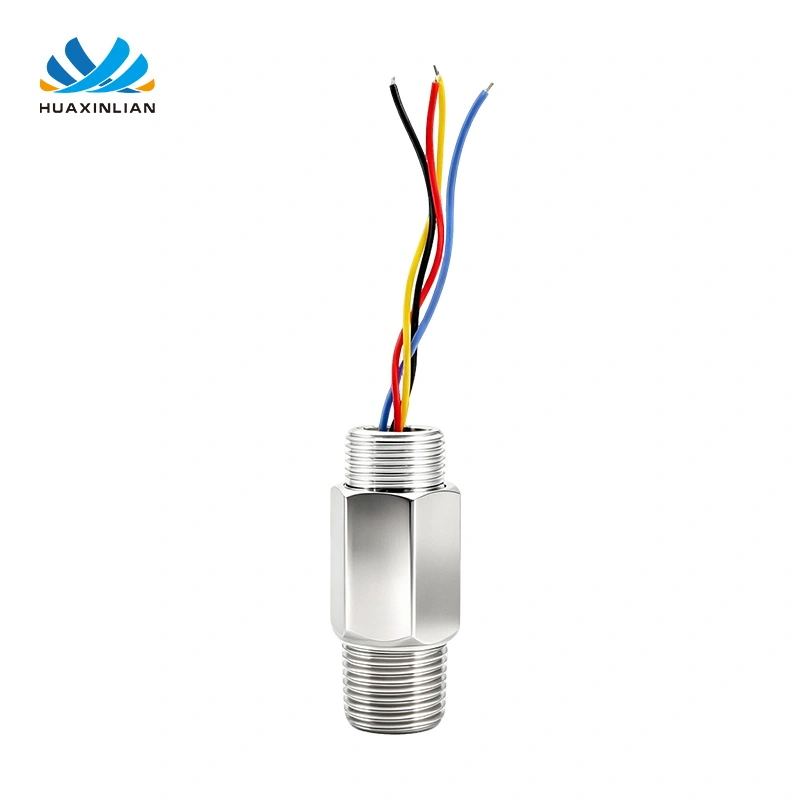

For fire protection systems that require reliable pipe network monitoring, this HXL-500 combines a pressure transmitter with a flush ceramic pressure transducer to deliver stable static and dynamic readings in humid, dusty, and high-interference environments.
Settle the vocabulary first
Four words get used interchangeably in procurement documents, and the difference is not marketing — it is the output signal and what the device does with it. Settle the definitions first and the rest of the selection collapses into a short list.
| Term | Output | What it does | Who buys it |
|---|---|---|---|
| Sensor | Raw mV, element only | The sensing element itself. Any amplification, filtering or loop conditioning is added downstream by someone else. | OEMs building their own electronics around the element. |
| Transducer | mV or amplified analogue, no standardised loop | Converts pressure into an electrical signal, but the signal format is not standardised across suppliers. | System integrators and panel builders who define their own signal chain. |
| Transmitter | 4–20 mA, 0–10 V or RS485 | Converts and conditions the signal so it is loop-ready for a PLC, controller or BMS input. | Plant, building and fire-system projects that wire straight into a controller. |
| Switch | Setpoint trip, no proportional output | Trips at a set pressure. There is no continuous reading to trend or alarm on. | Simple alarm, interlock and pump cut-out duty. |
The HXL-500 on this page is a transmitter, not a bare element: the fire-protection series conditions the signal, adds digital temperature compensation and reports static and dynamic pressure rather than exposing a raw millivolt output.
Decision order
Price is settled last because it is a consequence of the six inputs below. Work down the list and the shortlist writes itself; skip a row and the cost shows up after delivery.
| Step | What you decide | What it changes | If it is wrong |
|---|---|---|---|
| 1 · Medium | Water, air, oil, steam, fuel or slurry | Wetted materials and seal choice for the sensing face. | Incompatible wetted parts and premature seal failure. |
| 2 · Pressure range | The working band and the peak the line can see | Element selection and how much burst headroom you are buying. | Saturation on transients, or a cell that fails at the first surge. |
| 3 · Accuracy class | What the control loop can tolerate | The cell and the compensation route behind the reading. | A quotation that cannot be met once the loop is commissioned. |
| 4 · Output signal | 4–20 mA, 0–10 V or RS485 | How the unit is wired into the controller and how far the signal runs. | A re-wire or a converter added after the units arrive. |
| 5 · Process connection | Thread or connection standard for the tapping point | How the transmitter mounts into the pipework or manifold. | Adaptors, extra fittings and a new leak path. |
| 6 · Environment | Humidity, temperature, washdown, electromagnetic noise | Housing, cable entry and ingress rating. | Drift, condensation and unstable readings in service. |
Steps 2 to 5 are project-specific on this platform and are confirmed against the datasheet rather than quoted from this hub — the HXL-500 page publishes its protection rating, temperature range and compensation method, not a range or output table.
Product anatomy
The fire-protection series is built around a self-developed flush diaphragm ceramic sensor rather than an oil-filled piezoresistive monolithic cell, and the parts around it are specified for pipework that sees surges.
Specifications that kill a project
Each of these is quoted as an HXL-500 attribute, not as a general rule for every transmitter on the market. They are the lines that decide whether a unit survives its first year in a plant room.
Up to 5 times burst pressure capacity against traditional piezoresistive designs. On a pump discharge line the surge is the event that ends a transmitter's life, so the headroom is the specification you are actually buying.
IP68 protection is stated for long-term stable operation in humid, dusty and extreme-temperature conditions. Basements, pump rooms and washdown areas are where an IP65 unit quietly fails.
The built-in temperature sensor drives full digital temperature compensation, linearity correction and zero-point calibration. Analogue trim cannot follow the same curve across a −40 °C to 125 °C range.
Strong anti-interference capability for stable signal output in complex electromagnetic environments — the reason a reading stays flat next to VFDs, contactors and pump starters.
Field failure modes
These are the failure modes the flush ceramic design is aimed at. Each one links to the note that covers it in more detail.
Valve closure and pump stop events send a pressure spike down the line. The HXL-500 carries water-hammer-resistant structural parts and up to 5× burst headroom for exactly this duty.
Read the flush diaphragm noteAn oil-filled piezoresistive cell that ruptures leaks into the pipework and takes the reading with it. The flush diaphragm ceramic sensor is the replacement path stated on the product page.
See the HXL-500 constructionHigh humidity and temperature swing drive moisture into the housing and onto the electronics. IP68 protection and full digital compensation are what keep the output stable in that environment.
Read the humidity noteReadings creep as the electronics age and the ambient temperature changes. Built-in zero-point calibration is the countermeasure, and it removes the frequent manual recalibration otherwise needed.
Read the zero-drift noteWhere it belongs
The stated intended use is narrow on purpose: this is a fire-protection transmitter, not a general-purpose industrial sensor. It is bought by fire protection equipment manufacturers, facility managers and safety compliance personnel.
Pressure monitoring on suppression pipework, where a lost reading is a compliance problem rather than a nuisance alarm. Flush ceramic construction matters because the line is expected to sit idle and then work first time.
Panel and controller integration for systems that must report line pressure continuously. A transmitter output is what the control panel is designed to read.
Static and dynamic pressure captured in real time from the same unit, together with the medium temperature, for networks that are trended rather than merely tripped.
Plant rooms, risers and confined service spaces where the compact housing and modular design allow retrofit into pipework that is already in place.
Non-standard builds
The platform is described as offering fully customizable OEM solutions. The published page does not enumerate the available variants, so the right column below is what we need from you rather than a list of options we can promise in advance.
Keep adjacent product options together for a faster catalog comparison.

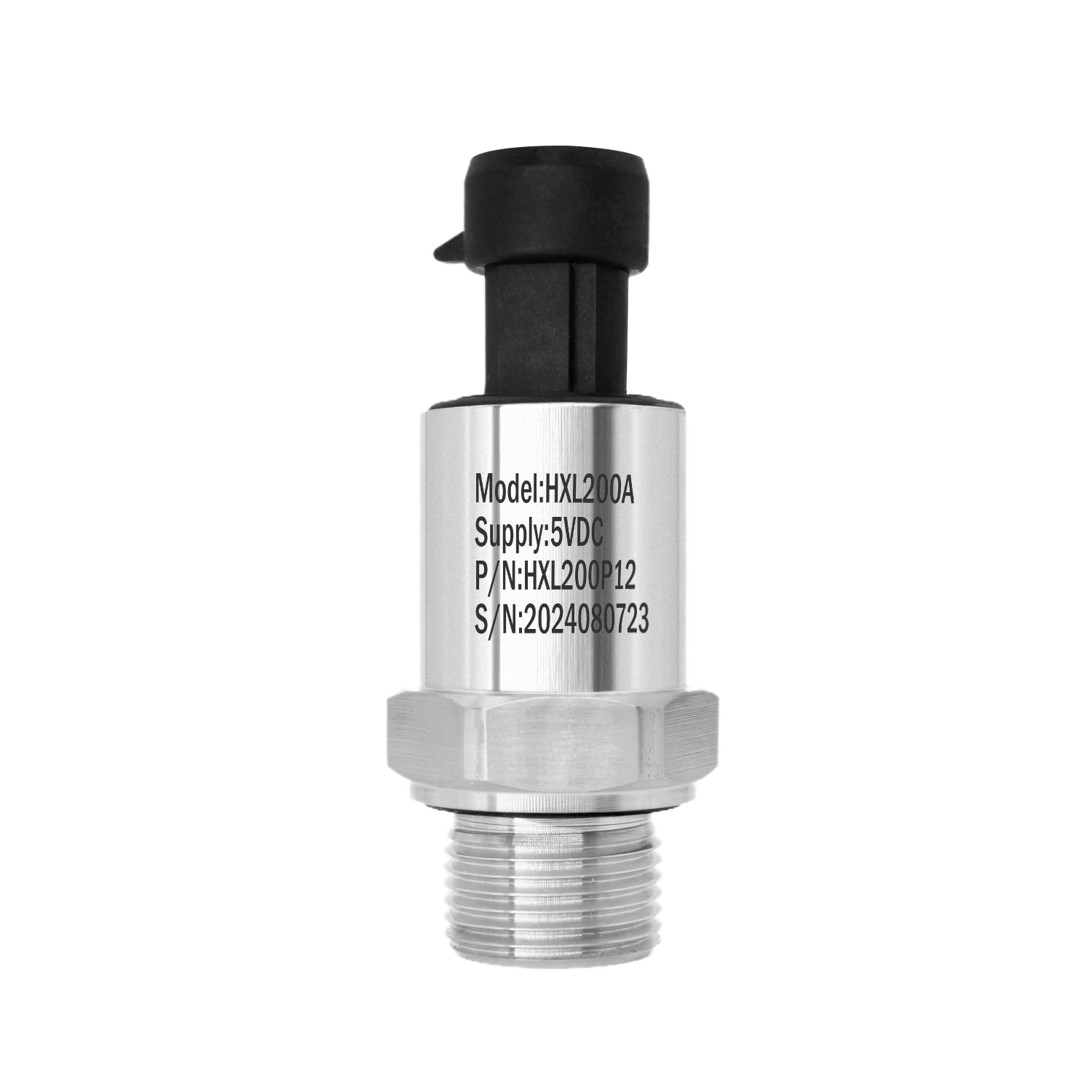

The HXL200AP12of transmitters are pressure products fully independently developed by Huaxinlian, utilizing self-developed ceramic cores. These products boast high temperature resistance, corrosion…
View product
HXL-100 Series Transmitter is a fully independent and self-developed product by Huaxinlian, designed for air compressor refrigeration pressure applications. Its core sensor utilizes a self-developed…
View product
HXL-100 Series Transmitter is a fully independent and self-developed product by Huaxinlian, designed for air compressor refrigeration pressure applications. Its core sensor utilizes a self-developed…
View productit is built for fire protection systems, supporting static and dynamic pipeline pressure monitoring in fire suppression networks, alarm and suppression systems, and industrial or commercial buildings.
the hxl-500 carries an ip68 protection rating and is rated for -40°c to 125°c, so it can keep working in humid, dusty, and temperature-challenging installation environments.
the self-developed flush diaphragm ceramic sensor replaces traditional piezoresistive monolithic designs, reducing the risk of diaphragm rupture and water leakage while the structural parts resist water hammer.
yes. a built-in temperature compensation sensor supports full digital temperature compensation, linearity correction, and zero-point calibration, which limits the need for frequent manual recalibration.
the sensor supports dual monitoring of static and dynamic pressure and integrates temperature measurement, so medium temperature can be tracked alongside pipe network pressure.
use the contact page to share your application, required quantity, and any specification points you need reviewed, and the supplier team can respond with pricing and supporting documentation.
