Product Parameters
| Parameters | Electrical Characterisitics |

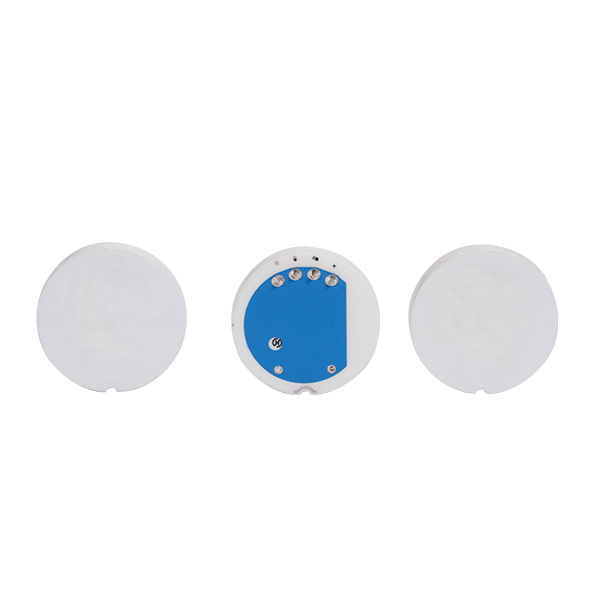

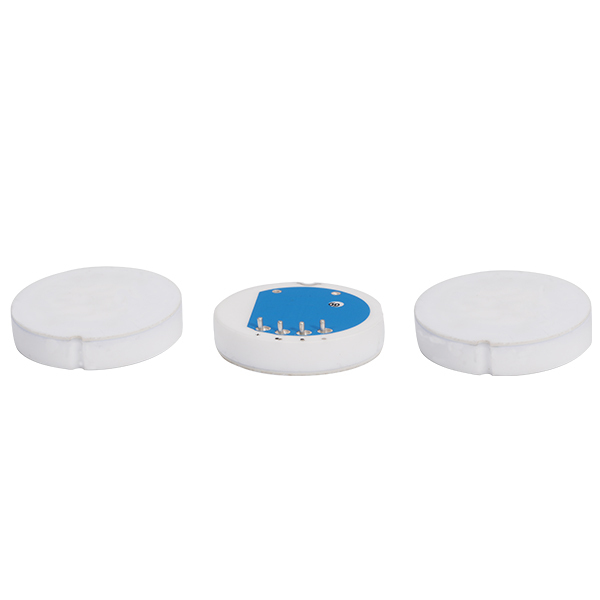

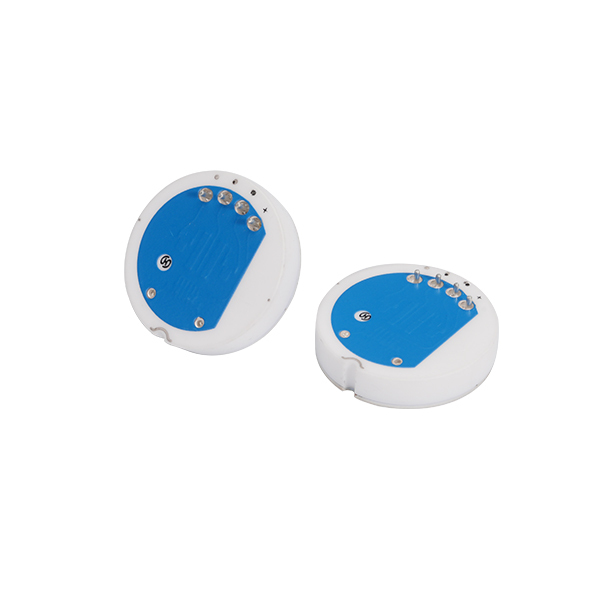

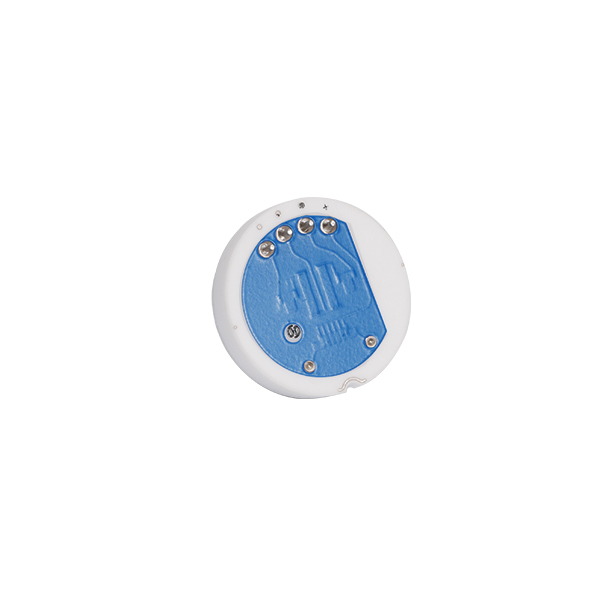

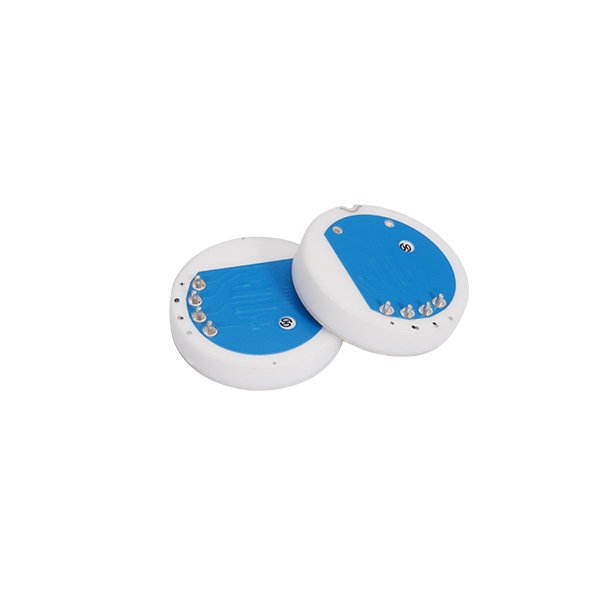

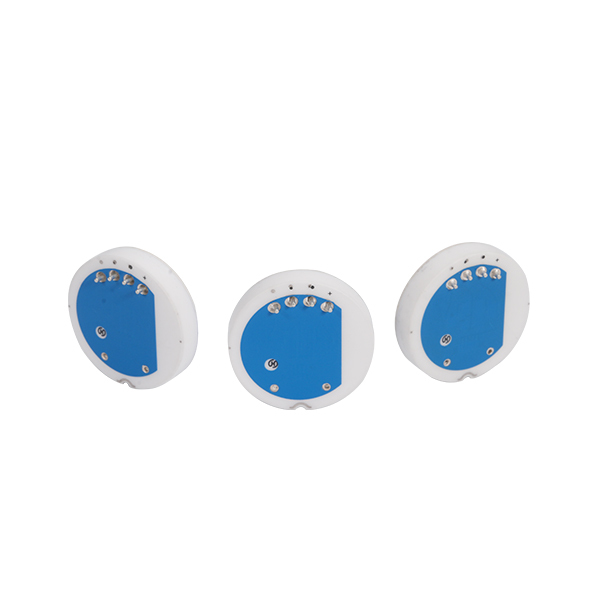

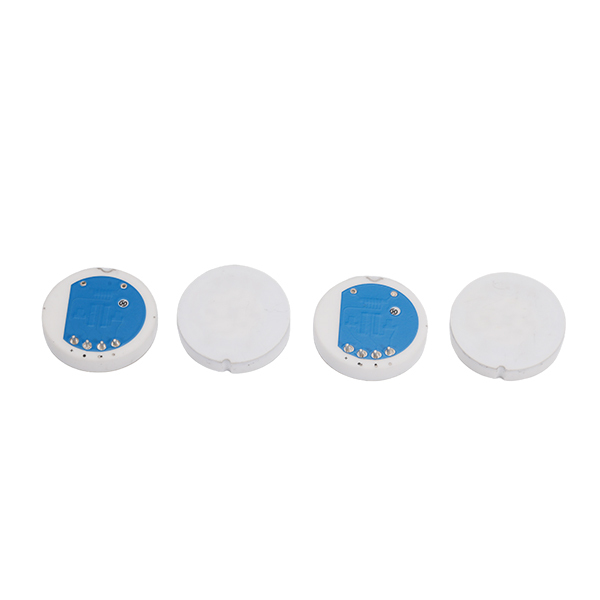

| Series Name | RS214A Series |
| Type | Temperature compensation Flush diaphragm |
| Size (diameter x height) | 21x(4.25~4.92)mm |
| Supply voltage | 2-30 V DC |
| Bridge road impedance | ※10.0kΩ ± 30% |
| TCR | ≤ 100 ppm/℃@-40℃~135 ℃ |
| Operating temperature | ‘-40 ℃~135℃ |
| Storage temperature | ’-40℃~150 ℃ |
| Temperature dirft | ※ Tco&Tcs 0.02%FS/℃ Max |
| Nonlinearity | 0.25% FS Max |
| Hysteresis & repeatability | 0.25% FS Max |
| Zero offset | ※0±0.4mV/V |
| Sensitivity | ※2.0-4.0mV/V, Typ: 3.0mV/V/FS |
| Response time | ＜ 2mS |
| Insulation resistance | ＞ 2KV |
| Zero-point long term stability@25℃ | Zero@25℃：＜0.25 FSO (no time accumulation） |
| Cycle life | 5 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃ |
| RS214A | ||||
| 21x(4.10-4.77)mm Series | ||||
| Product Model | Working Pressure Range | Product thickness H | Overload Pressure | Burst Pressure |
| HXL-RS214A002C | 0-2 Bar | 4.25 ± 0.05 mm | ＞ 10 Bar | ＞ 20 Bar |
| HXL-RS214A005C | 0-5 Bar | 4.30 ± 0.05 mm | ＞ 25 Bar | ＞ 40 Bar |
| HXL-RS214A010C | 0-10 Bar | 4.40 ± 0.05 mm | ＞ 30 Bar | ＞ 60 Bar |
| HXL-RS214A020C | 0-20 Bar | 4.55 ± 0.05 mm | ＞60 Bar | ＞ 120 Bar |
| HXL-RS214A032C | 0-32 Bar | 4.65 ± 0.05 mm | ＞ 100 Bar | ＞ 160 Bar |
| HXL-RS214A050C | 0-50 Bar | 4.70 ± 0.05 mm | ＞ 150 Bar | ＞ 250 Bar |
| HXL-RS214A070C | 0-70 Bar | 4.85 ± 0.05 mm | ＞250 Bar | ＞ 350 Bar |
| HXL-RS214A100C | 0-100 Bar | 4.92 ± 0.05mm | ＞300 Bar | ＞ 400 Bar |
