Product Parameters
| Parameters | Electrical Characterisitics |

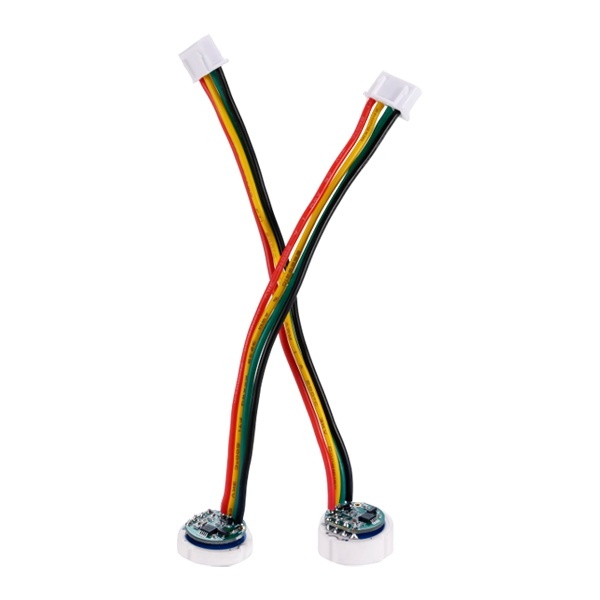

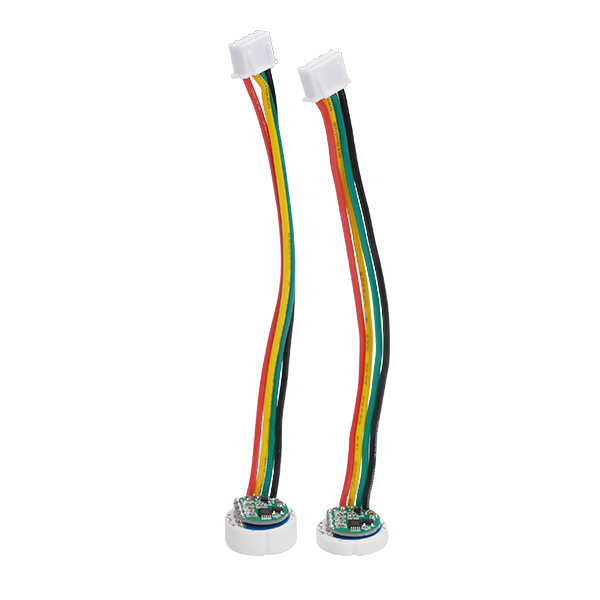

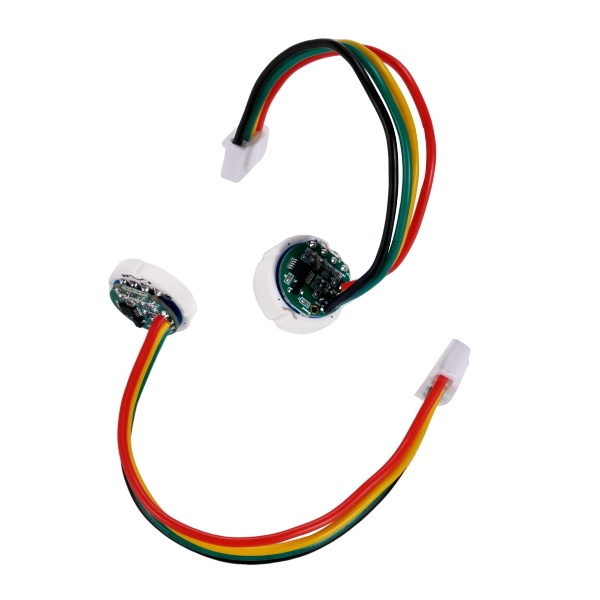

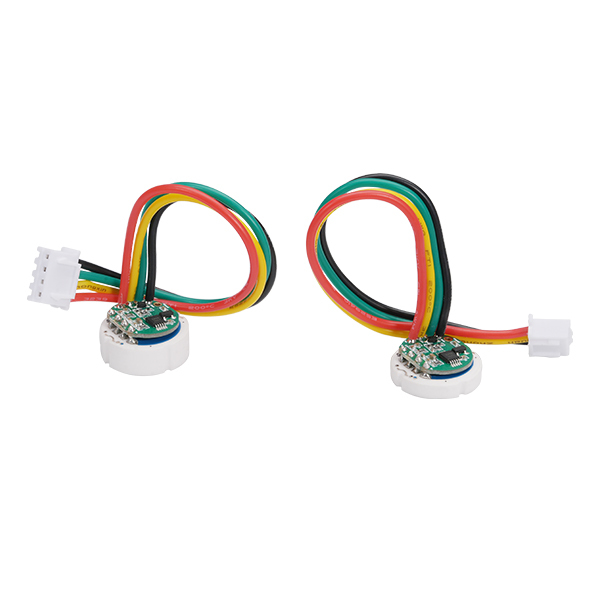

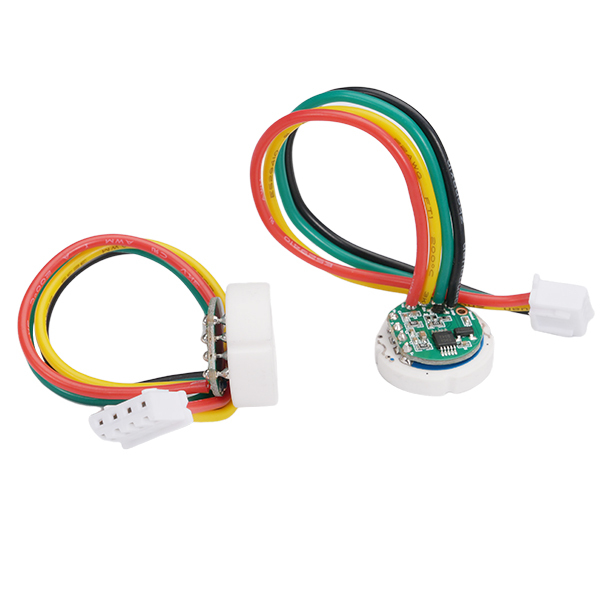

| Series Name | RS186MV/RS183MV |
| Type | Flush diaphragm module |
| Size (diameter x height) | φ18x（6.3-6.95）/φ18x （3.3-3.78）mm |
| Supply voltage | 5.0 ± 10% DC (optional 8-32V DC ) |
| Working current | ＜10 mA |
| Output signal | 0.5-4.5V DC |
| Over voltage | ＜ 12V DC |
| Operating temperature | ‘-40 ℃~125℃ |
| Storage temperature | ’-40℃~150 ℃ |
| Nonlinearity | 0.25% FS Max |
| Hysteresis & repeatability | 0.25% FS Max |
| Output accuracy | ※ ± 1.0% Vcc@0-70℃， ± 3.0% Vcc@-40 ℃~125℃ |
| Response time | ＜ 10 mS |
| Zero-point long term stability@25℃ | Zero@25℃：＜0.25 FSO (no time accumulation） |
| Cycle life | 5 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃ |
| Working medium | oil, water, gas, refrigerant, coolant, chemical solvents, detergents, etc |
| Product model | Working pressure range | Product thickness H | Overload pressure | Burst pressure |
| HXL-RS186A005MV | 0-5Bar | 6.30±0.05mm | >20Bar | >40Bar |
| HXL-RS186A010MV | 0-10Bar | 6.30±0.05mm | >30Bar | >50Bar |
| HXL-RS186A016MV | 0-16Bar | 6.35±0.05mm | >48Bar | >80Bar |
| HXL-RS186A020MV | 0-20Bar | 6.35±0.05mm | >60Bar | >100Bar |
| HXL-RS186A025MV | 0-25Bar | 6.45±0.05mm | >75Bar | >125Bar |
| HXL-RS186A035MV | 0-35Bar | 6.45±0.05mm | >100Bar | >150Bar |
| HXL-RS186A050MV | 0-50Bar | 6.55±0.05mm | >150Bar | >250Bar |
| HXL-RS186A070MV | 0-70Bar | 6.65±0.05mm | >200Bar | >300Bar |
| HXL-RS186A100MV | 0-100Bar | 6.78±0.05mm | >250Bar | >400Bar |
| HXL-RS186A200MV | 0-200Bar | 6.95±0.05mm | >400Bar | >600Bar |
| Thickness 18×3.50mm Series | ||||
| Product model | Working pressure range | Product thickness H | Overload pressure | Burst pressure |
| HXL-RS183A005MV | 0-5Bar | 3.30±0.05mm | >20Bar | >40Bar |
| HXL-RS183A010MV | 0-10Bar | 3.30±0.05mm | >30Bar | >50Bar |
| HXL-RS183A016MV | 0-16Bar | 3.35±0.05mm | >48Bar | >80Bar |
| HXL-RS183A020MV | 0-20Bar | 3.35±0.05mm | >60Bar | >100Bar |
| HXL-RS183A025MV | 0-25Bar | 3.45±0.05mm | >75Bar | >125Bar |
| HXL-RS183A035MV | 0-35Bar | 3.45±0.05mm | >100Bar | >150Bar |
| HXL-RS183A050MV | 0-50Bar | 3.55±0.05mm | >150Bar | >250Bar |
| HXL-RS183A070MV | 0-70Bar | 3.65±0.05mm | >200Bar | >300Bar |
| HXL-RS183A100MV | 0-100Bar | 3.78±0.05mm | >250Bar | >400Bar |
