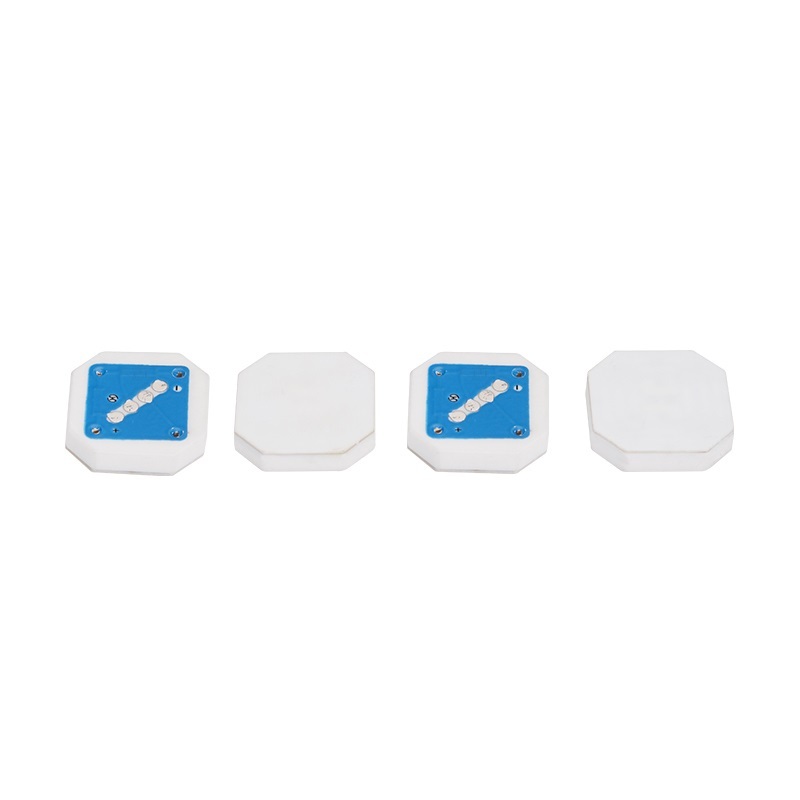

• RS143A

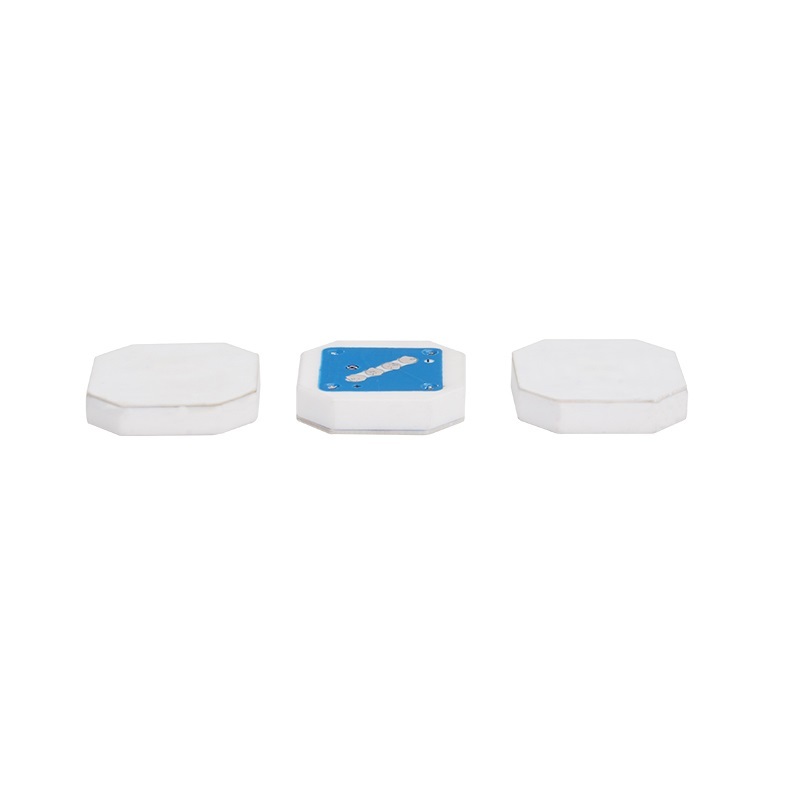

  • RS143A

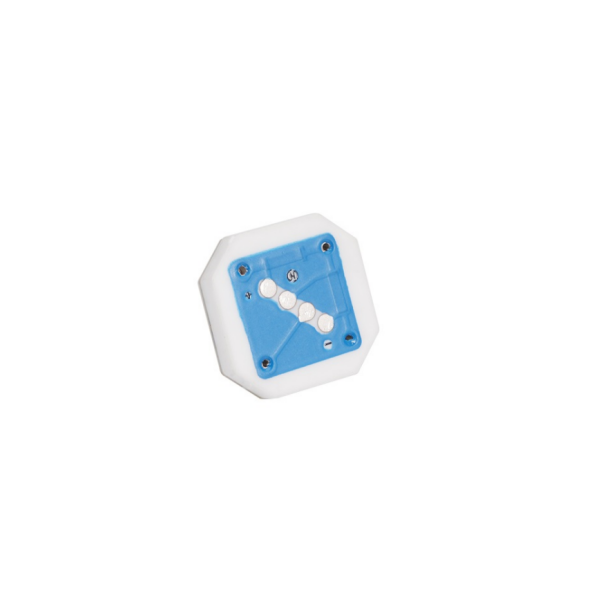

  • RS143A

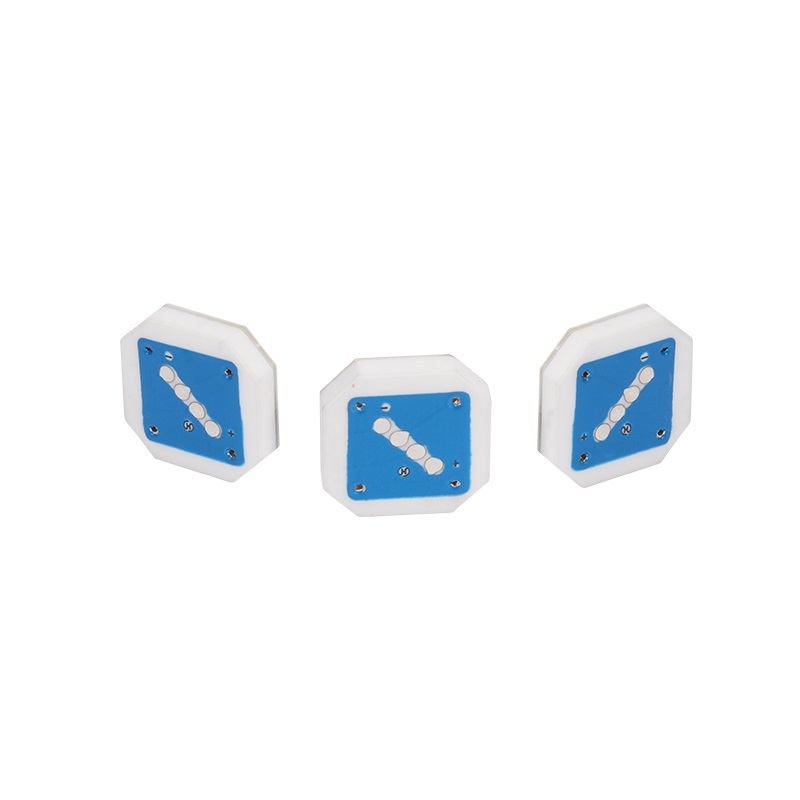

  • RS143A

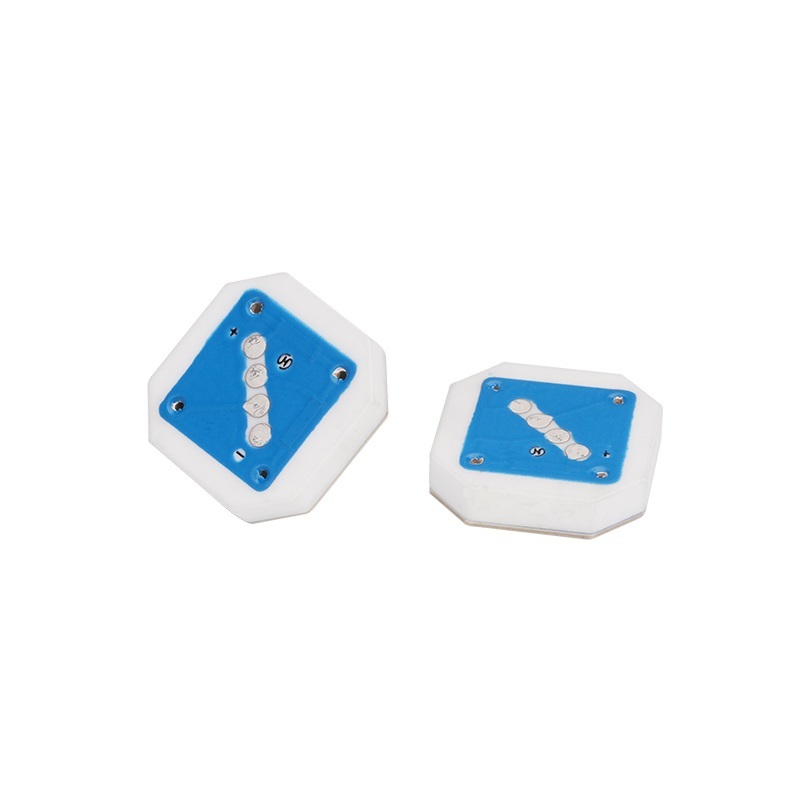

  • RS143A

Description

  • Patented circuit layout design
  • Unique structural design
  • Ultra-high overload and burst pressure, suitable for high-impact pressure scenarios
  • Wide temperature range, broad applicability
  • High-elasticity diaphragm to enhance sensitivity and meet high-precision measurement requirements
  • Supports precise data acquisition

Product Parameters

Parameters Electrical characterisitics
Series Name RS143A Series
Type  Flush diaphragm
Size (Length,width,height) 14x14x3.05 mm
Supply voltage 2-30 V DC
Bridge road impedance 5.0kΩ ± 30%
TCR ≤ 100 ppm/℃@-40℃~135 ℃
Operating temperature ‘-40 ~135
Storage temperature ’-40~150
Temperature dirft    Tco&Tcs 0.03%FS/ Max / Tco&Tcs 0.05% FS/ optional
Nonlinearity 0.25% FS Max
Hysteresis & repeatability 0.25% FS Max
Zero offset 0±0.4mV/V
Sensitivity ※2.0-4.0mV/V, Typ: 3.0mV/V/FS
Response time  2mS
Insulation resistance  2KV
Zero-point long term stability@25 Zero@25℃:<0.25 FSO (no time accumulation
Cycle life 5 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35

Product Range

RS143A



14x14x3.0mm Series

Product Model

Working Pressure Range

Overload Pressure

Burst Pressure

HXL-RS143A010C

0-10 Bar

> 30 Bar

> 50 Bar

HXL-RS143A020C

0-20 Bar

> 60 Bar

> 100 Bar

HXL-RS143A035C

0-35 Bar

> 70 Bar

> 150 Bar

HXL-RS143A050C

0-50 Bar

> 100 Bar

> 200 Bar

HXL-RS143A070C

0-70 Bar

> 140 Bar

> 300 Bar

HXL-RS143A100C

0-100 Bar

> 200 Bar

> 300 Bar
