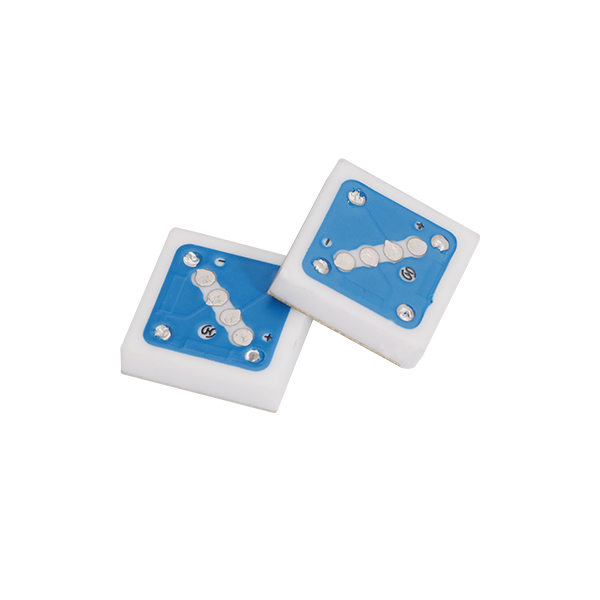

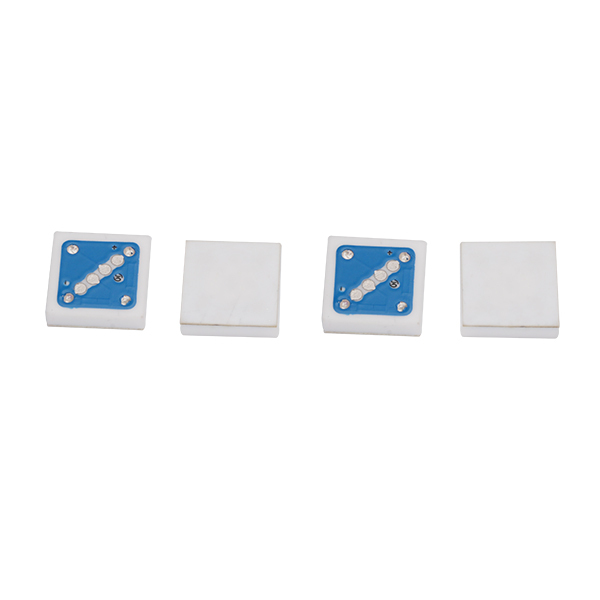

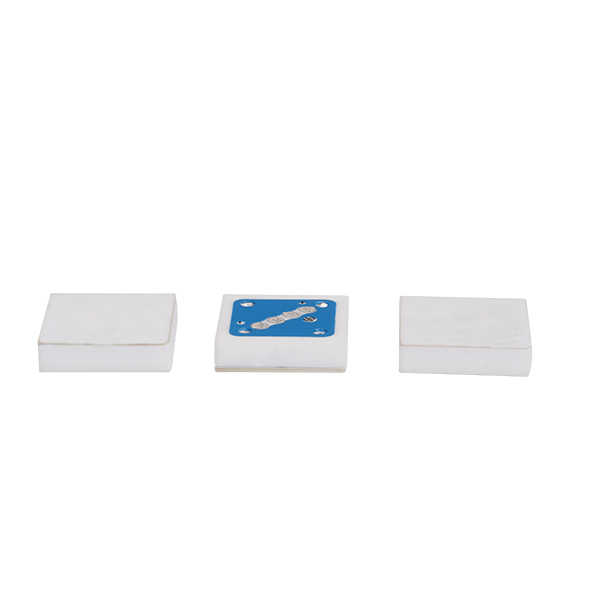

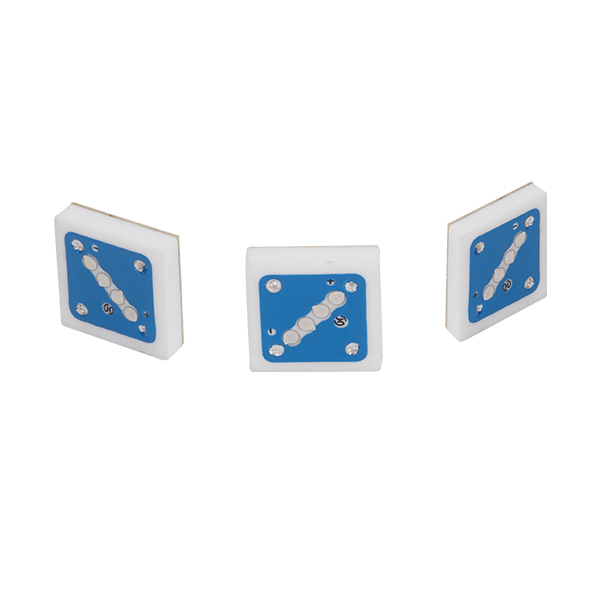

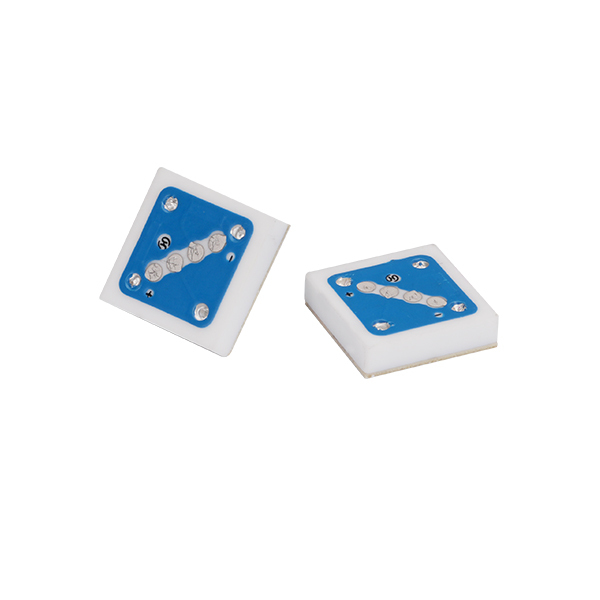

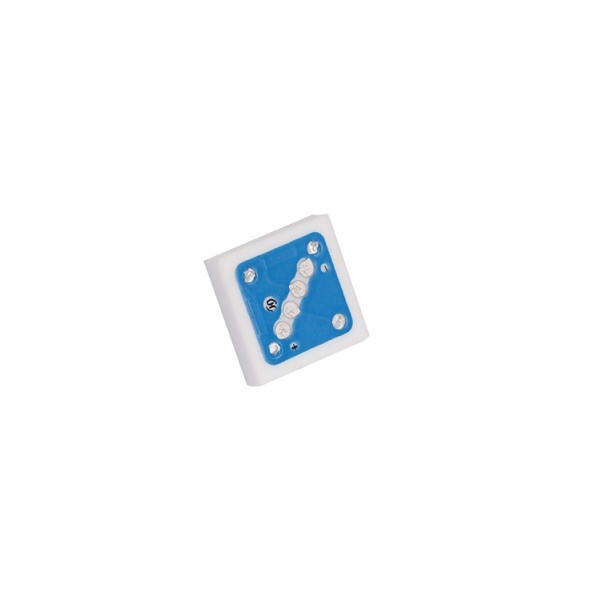

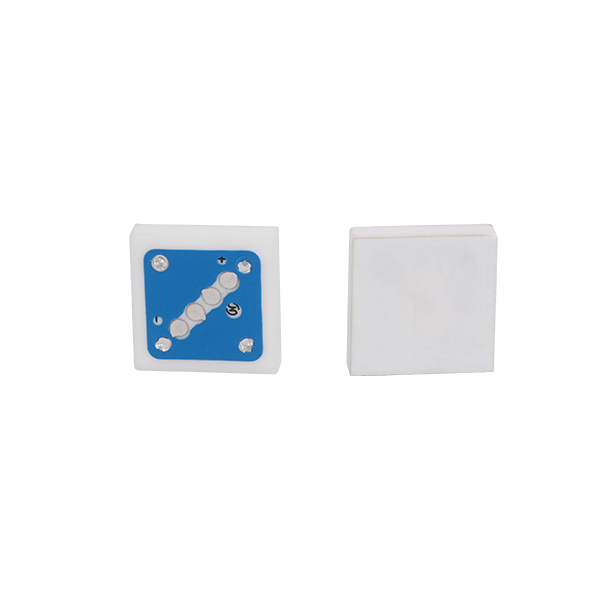

Description

  • Patented circuit layout design
  • Unique structural design
  • Ultra-high overload and burst pressure, suitable for high-impact pressure scenarios
  • Wide temperature range, broad applicability
  • High-elasticity diaphragm to enhance sensitivity and meet high-precision measurement requirements
  • Supports precise data acquisition

Produc Parameters

Parameters Electrical characterisitics
Series Name RS123 Series
Type  Flush diaphragm
Size (Length x width xheight) 12x12x3.0mm
Supply voltage 2-30 V DC
Bridge road impedance 5.0kΩ ± 30%
TCR ≤ 100 ppm/℃@-40℃~135 ℃
Operating temperature ‘-40 ~135
Storage temperature ’-40~150
Temperature dirft   ※ Tco&Tcs 0.03%FS/℃ Max / Tco&Tcs 0.05% FS/℃ optional
Nonlinearity 0.25% FS Max
Hysteresis & repeatability 0.25% FS Max
Zero offset 0±0.4mV/V
Sensitivity ※2.0-4.0mV/V, Typ: 3.0mV/V/FS
Response time  2mS
Insulation resistance  2KV
Zero-point long term stability@25 Zero@25℃:<0.25 FSO (no time accumulation
Cycle life 5 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35

Product Range

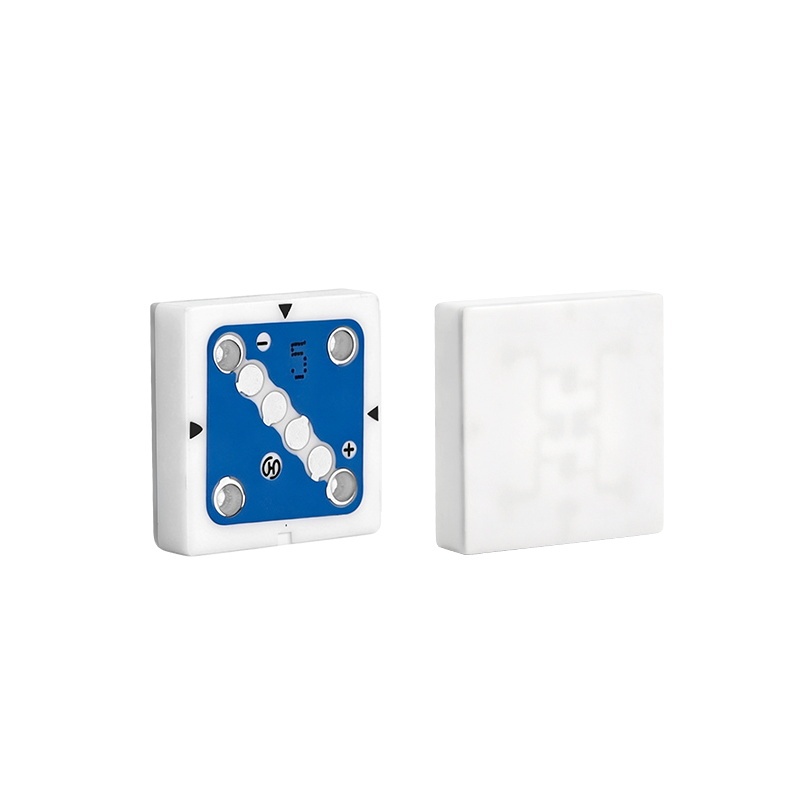

RS123A
12x12x3.0mm Series
Product Model Working Pressure Range Pressure type Overload Pressure Burst Pressure
HXL-RS123A005C 0-5  Bar Gauge   > 15 Bar > 25 Bar
HXL-RS123A010C   0-10  Bar Gauge/Sealed Gauge > 25 Bar > 40  Bar
HXL-RS123A020C 0-20  Bar Gauge/Sealed Gauge > 40  Bar > 60  Bar
HXL-RS123A030C   0-30  Bar Gauge/Sealed Gauge > 60  Bar > 100  Bar
HXL-RS123A050C 0-50  Bar  Sealed Gauge   > 100 Bar > 150  Bar
