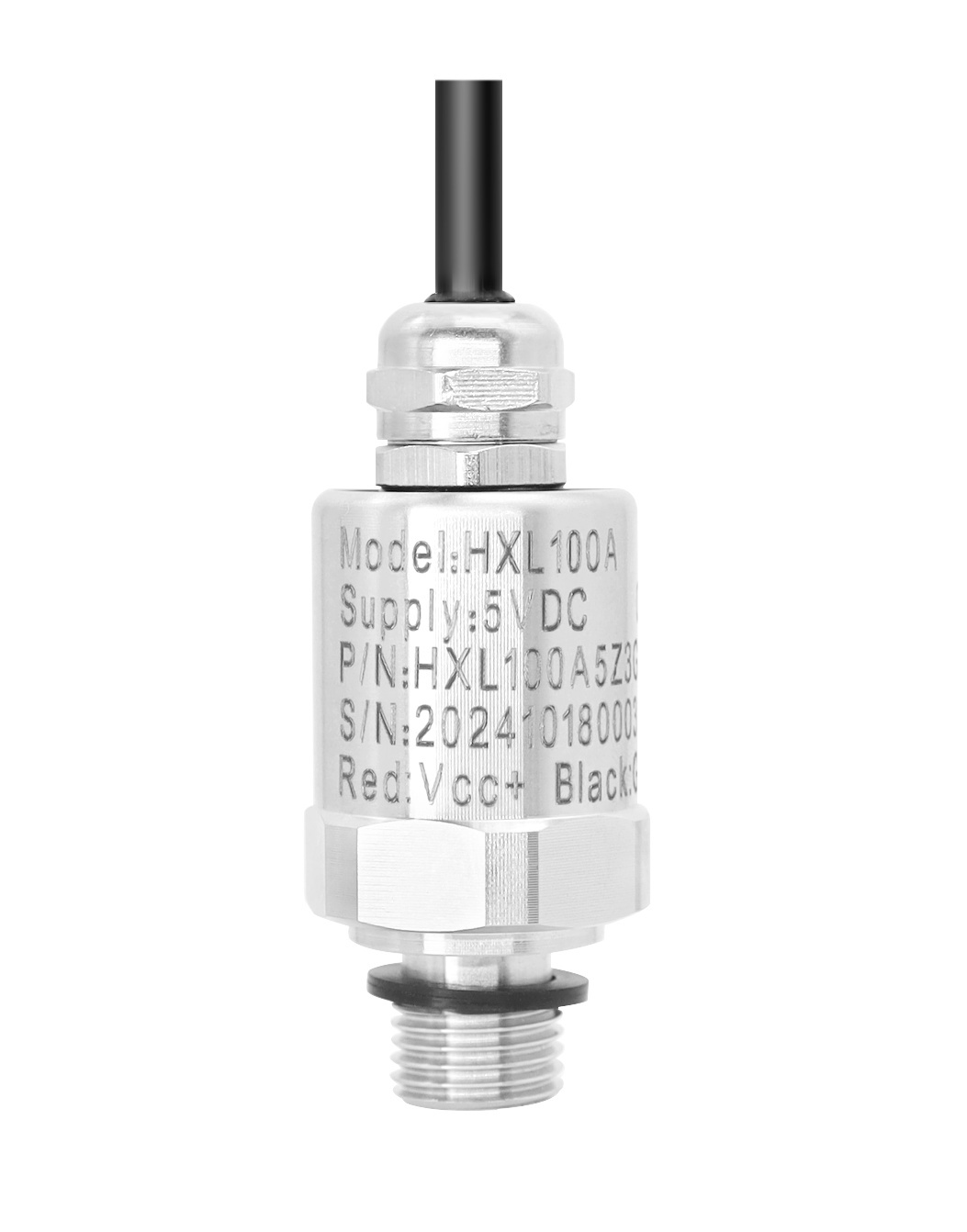

HXL-100A Refrigeration Pressure Transmitter

No.HXL-100A
HXL-100 Series Transmitter is a fully independent and self-developed product by Huaxinlian, designed for air compressor refrigeration pressure applications. Its core sensor utilizes a self-developed ceramic core. The product features high temperature resistance, corrosion resistance, high stability, and high reliability. With its compact size, superior overall performance, and cost-effectiveness, it is suitable for measuring industrial liquids and gases. It is particularly well-suited for applications in hydraulic energy, railway transportation, petrochemical industry, mechanical control, and air compression systems.
  • HXL-100A Refrigeration Pressure Transmitter
  • Description

  • Technical Specificat

☆Pressure range:-1-0-1...400bar
☆Output signal:0-5V/0-10V/0.5-4.5V/10-90%比例
☆Supply voltage:8-32V DC/12-32V DC/8-32V DC,5V DC/3.3-5.5V DC
☆Electrical connection:Straight joint
☆ Accuracy:≤±0.50%F.S.(Routine);≤±1%F.S.
☆Threaded interface:G1/4"
☆Work temperature: -35℃~105℃
☆Applications:   Industrial Refrigeration Units、Air Conditioning and Refrigeration Units、 Process Control、Compressed Air Systems
