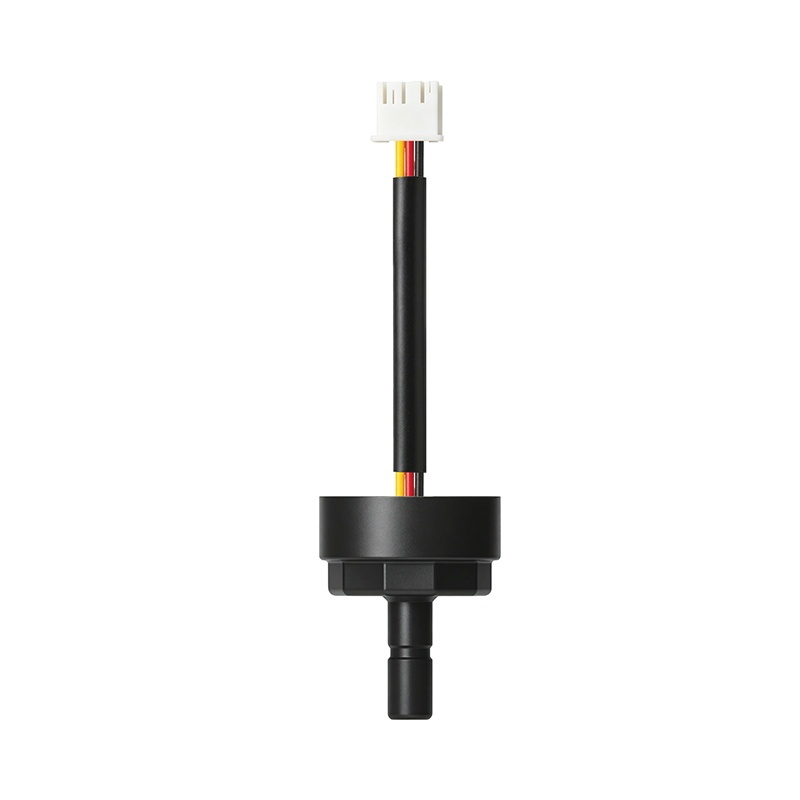

Food Grade Ceramic Pressure Sensor Dedicated for Water Dispenser RO Membrane Protection,HXL-400

The HXL-400 series pressure sensors are applied in new-type water dispensers. They enable more accurate water pressure detection and prevent the water pump from idling under no-water or low water pressure conditions, thus avoiding pump burnout.In addition, the sensor can precisely monitor water pressure. After the machine stops when full, pure water flows into the RO membrane housing to replace the residual water inside. This ensures pure water is available immediately upon the next startup, achieving zero stale water and low TDS water performance. It effectively reduces limescale and impurities, and extends the service life of the RO membrane.
  • Food Grade Ceramic Pressure Sensor Dedicated for Water Dispenser RO Membrane Protection,HXL-400
  • Description

  • Technical Specificat

Products Description

* Temperature resistance: 0°C ~ 105°C
* Based on mature flush diaphragm ceramic technology,
it features ultra-high overload capacity and high burst pressure performance
* Corrosion resistant with excellent media compatibility
* Long service life and low drift over time
* Fast response speed

Parameters Electrical characteristics
Pressure type Gauge Pressure, Absolute Pressure
Pressure range 0-10/20Bar (Customizable)
Accuracy ±1% FS&10℃-40℃, ±2% FS&0℃~+105℃
Electrical performance Three wire system
Output signal 0.5-4.5V DC
Power supply voltage 4.7~16V DC
Operating temperature 0℃-105℃
Storage temperature -20℃-125℃
Electrical connections XHB-3P 2.54mm Pitch White Terminal Connector
Pressure connection Three-way buckle base
Material quality - Housing Food-grade POM
Material quality - Sensor Ceramic (Standard)
Material quality - O-shaped sealing ring Food-grade silicone rubber
Response time <10ms
Overload pressure >2×FS
Burst pressure >5×FS
Long term stability Zero @25℃:<0.25%FSO(no time accumulation)
Cycle life >2 million pressure cycles @2-5Hz,0~full scale pressure~0,15~35℃
Protection rating IP65, Customizable
Working medium Water, Water vapor
