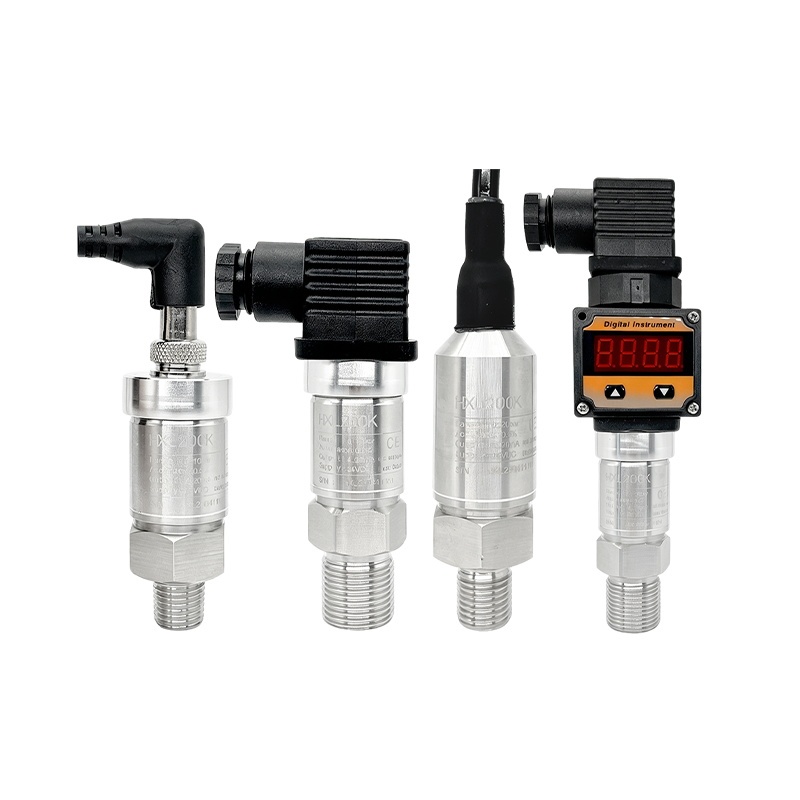

* Reverse polarity protection, transient overcurrent and overvoltage protection, compliant with EMI protection requirements
* All-stainless steel housing with various pressure connection options
* Wide pressure range coverage
* Multiple signal outputs
* Supports Customization for Various Specifications
| Parameters | Electrical characteristics |
|---|---|
| Pressure type | Absolute Pressure, Gauge Pressure, Sealed Gauge Pressure |
| Pressure range | 0 ~ 0.03 ... 0 ~ 1000 Bar (Customizable) |
| Accuracy | ±0.5% FS; ±0.25% FS; ±0.1% FS |
| Electrical performance | Two wire system; Three wire system; Four wire system |
| Output signal | 4~20mA; 0-10V DC; RS485 Digital output |
| Power supply voltage | 5V DC, 12V DC, 24V DC |
| Operating temperature | -40℃~100℃ |
| Storage temperature | -40℃~120℃ |
| Electrical connections | Elbow aviation connector, Straight Connection, Hirschmann connector |
| Pressure connection | External thread; M20×1.5; Thread specifications can be customized according to customer requirements |
| Material quality - Housing | Stainless Steel; Customizable |
| Material quality - Sensor | Diffused Silicon |
| Material quality - O-shaped sealing ring | NBR / FKM / PTFE |
| Response time | ≤15ms |
| Overload pressure | ＞6~1.1×FS |
| Burst pressure | ＞10×FS (Please specify during model selection) |
| Long term stability | <0.1% FS/year (Typical); <0.2% FS/year (Maximum) |
| Cycle life | >1 million pressure cycles |
| Protection rating | IP65, IP67, IP68 |
| Working medium | Water, weak acid solutions, mineral oil, alcohols and other liquids and gases |
