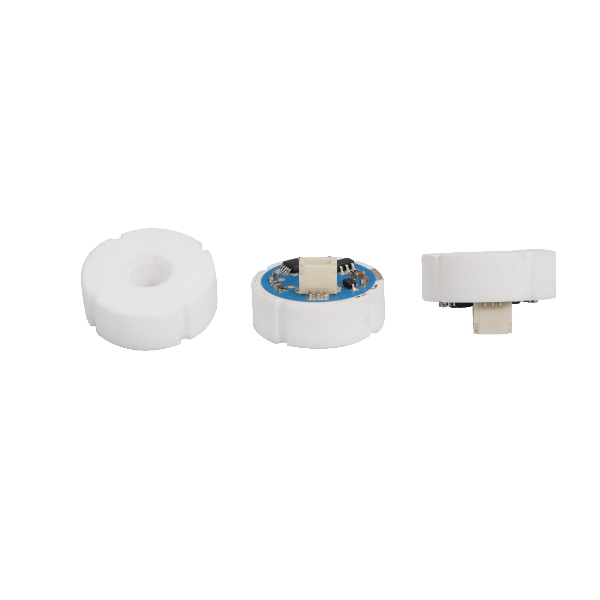

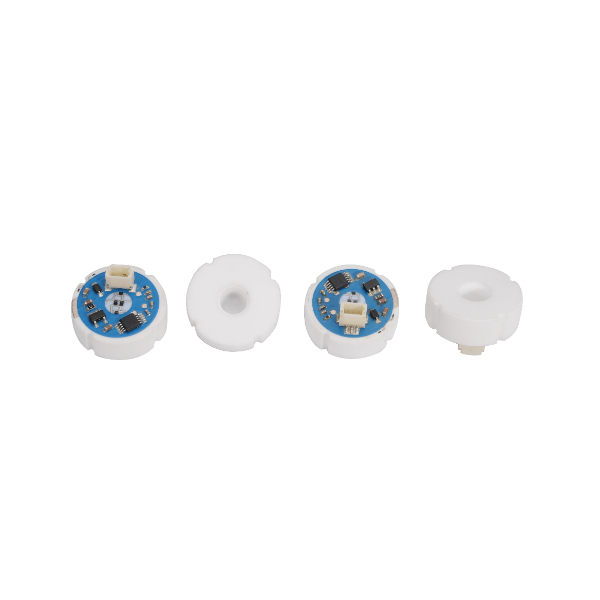

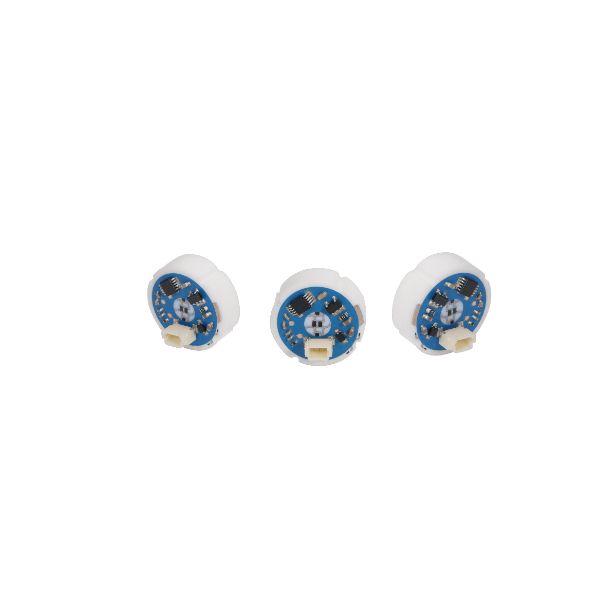

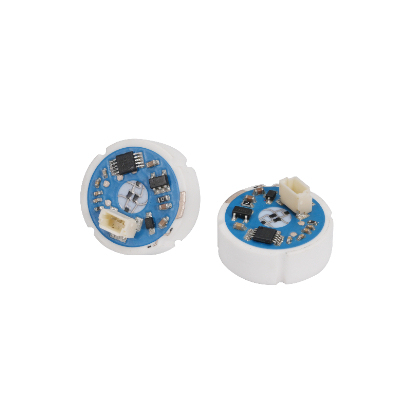

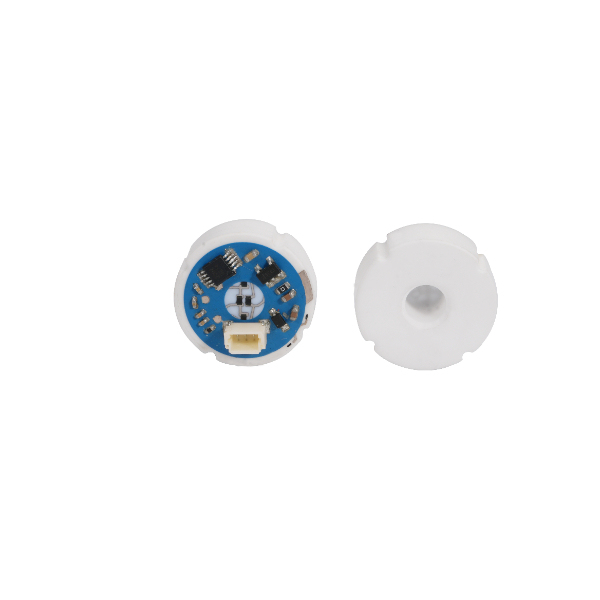

Description

  • Integrated design with high product stability
  • Supports customization of various output signals such as current, voltage, IIC, etc.
  • Easy and convenient to use
  • Excellent EMC protection and reverse polarity protection

 Produc Parameters

Parameters

Electrical Characterisitics

Series Name

CPS 18635MV2/CPS18350MV2

Type

 Monolithic module

Size (diameter x height)

φ18x6.35/φ18x3.5mm

Supply voltage

5.0-16.0V DC

Working current

<10 mA

Output signal

0.5-4.5V DC

Working pressure

0-50 Bar G

Overload pressure

 100 Bar G

Burst Pressure

 150 Bar G

Operating temperature

‘-40 ~125

Storage temperature

’-40~150

Nonlinearity

0.25% FS Max

Hysteresis & repeatability

0.25% FS Max

Output accuracy

 ± 1.0% Vcc@0-70℃, ± 3.0% Vcc@-40 ~125

Response time

 2mS

Zero-point long term stability@25

Zero@25℃:<0.25 FSO (no time accumulation

Cycle life

2 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35

Working medium

oil, water, gas, refrigerant, coolant, chemical solvents, detergents, etc



Produc Range



CPS18635MV2/CPS18350MV2  Series

Range Parameters

Thickness 18×6.35mm Series

Product model

Working pressure range

Overload pressure

Burst pressure (Bar)

HXL-CPS18635G002MV2

0-2Bar

2

4

HXL-CPS18635G005MV2

0-5Bar

10

15

HXL-CPS18635G010MV2

0-10Bar

20

30

HXL-CPS18635G016MV2

0-16Bar

32

48

HXL-CPS18635G020MV2

0-20Bar

40

60

HXL-CPS18635G025MV2

0-25Bar

50

75

HXL-CPS18635G030MV2

0-30Bar

60

90

HXL-CPS18635G050MV2

0-50Bar

100

150

HXL-CPS18635G100MV2

0-100Bar

200

300

HXL-CPS18635G200MV2

0-200Bar

300

500

HXL-CPS18635G300MV2

0-300Bar

450

600

HXL-CPS18635G400MV2

0-400Bar

600

/

HXL-CPS18635G600MV2

0-600Bar

800

/

Thickness 18×3.50mm Series

Product model

Working pressure range

Overload pressure

Burst pressure

HXL-CPS18350G005MV2

0-5Bar

10

15

HXL-CPS18350G010MV2

0-10Bar

20

30

HXL-CPS18350G020MV2

0-20Bar

40

60

HXL-CPS18350G030MV2

0-30Bar

60

90

HXL-CPS18350G050MV2

0-50Bar

100

150

HXL-CPS18350G100MV2

0-100Bar

200

300
