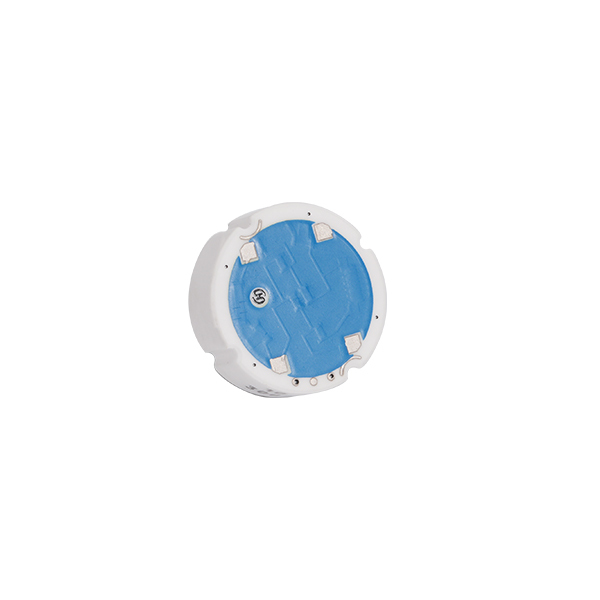

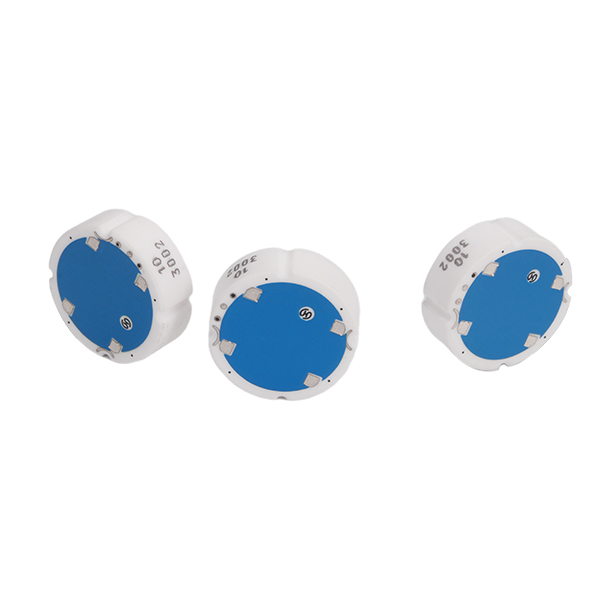

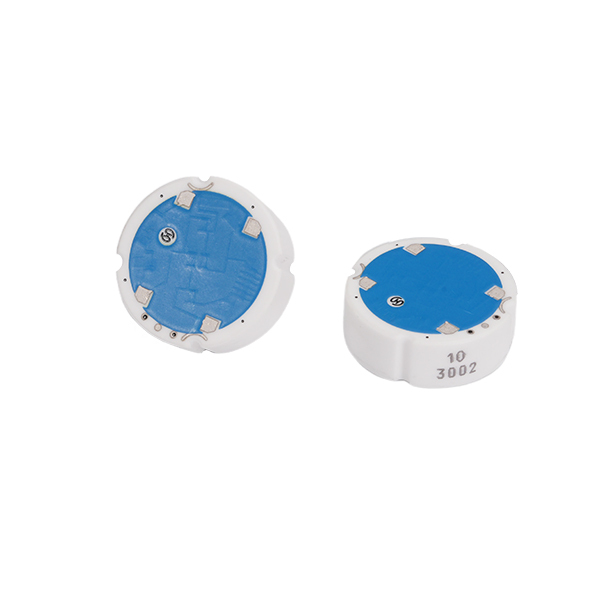

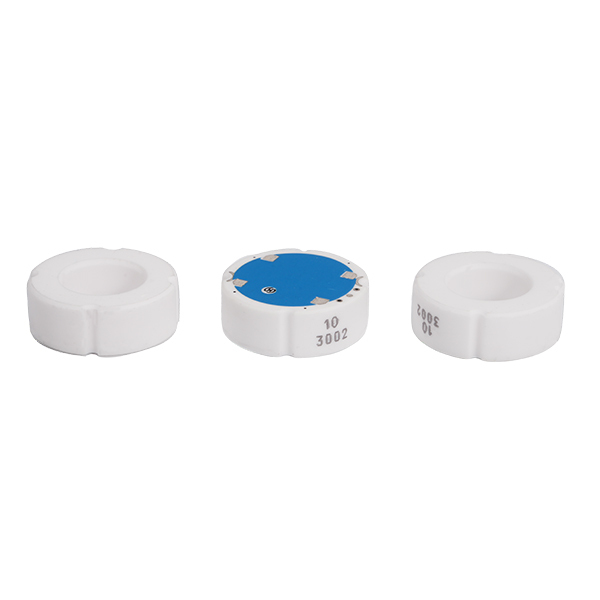

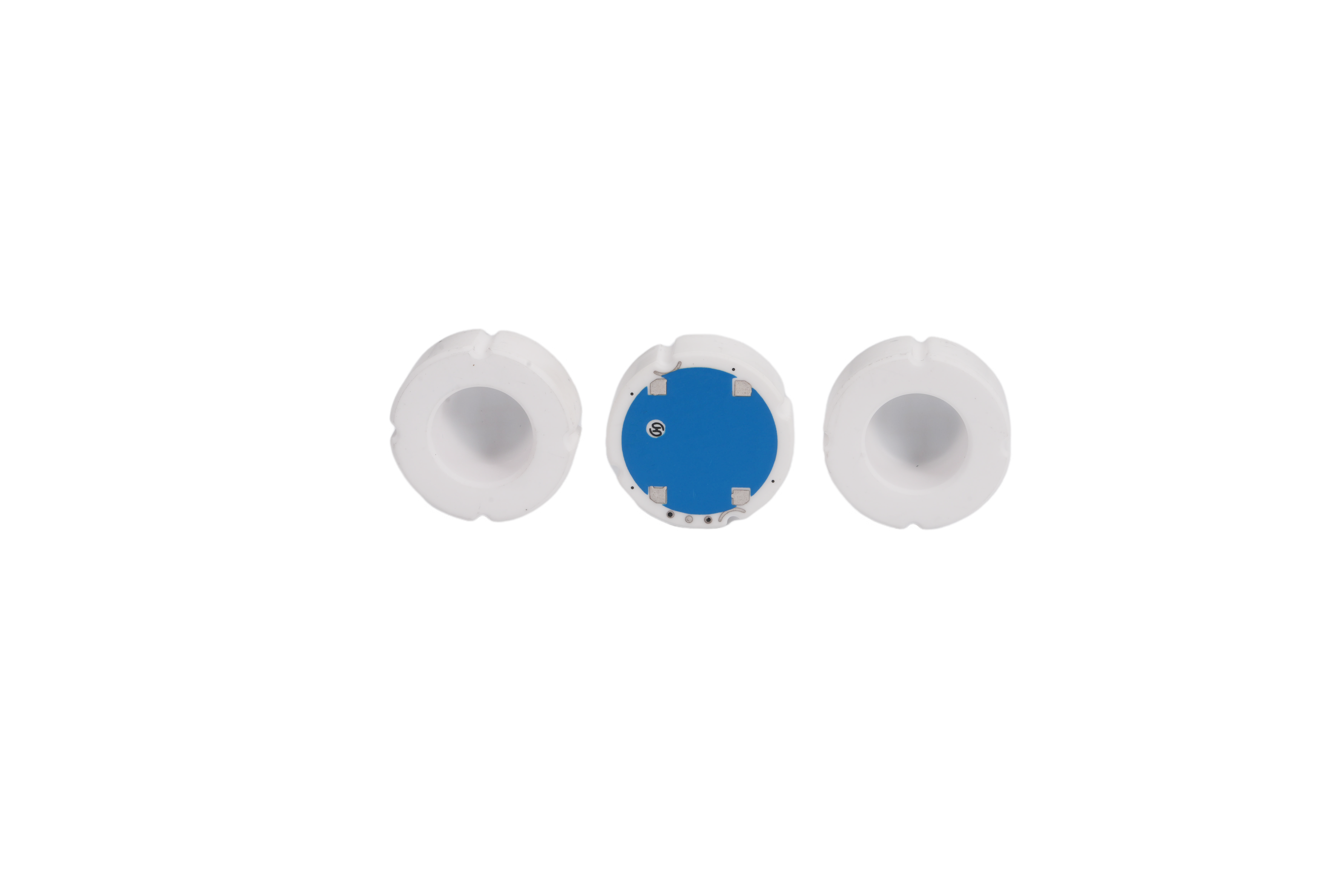

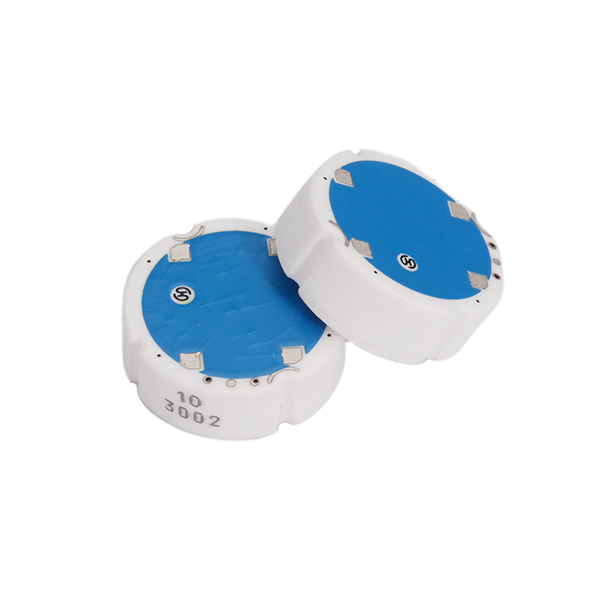

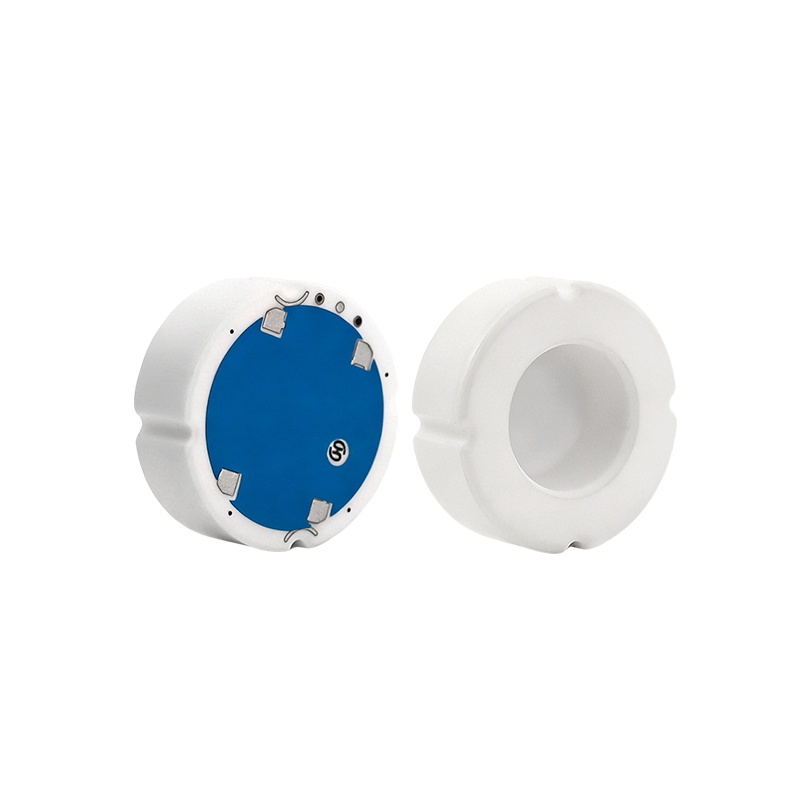

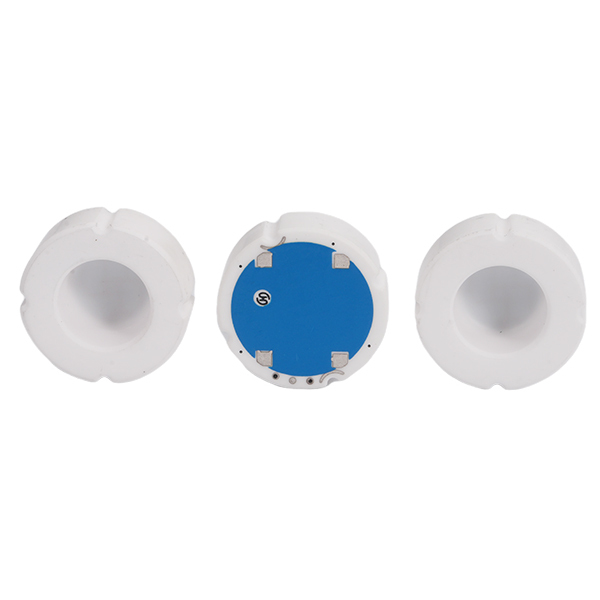

Product Parameters
| Parameters | Electrical Characterisitics |
| Series Name | CPS18635H/ CPS350H Series |
| Type | Temperature compensation Monolithic |
| Size (diameter x height) | φ18*6.35 mm/ φ18*3.50mm |
| Supply voltage | 2-30 V DC |
| Bridge road impedance | ※10.0kΩ ± 30% |
| TCR | ≤ 100 ppm/℃@-40℃~125 ℃ |
| Operating temperature | ‘-40 ℃~135℃ |
| Storage temperature | ’-40℃~150 ℃ |
| Temperature dirft | ※ Tco&Tcs 0.02%FS/℃ Max |
| Nonlinearity | 0.25% FS Max |
| Hysteresis & repeatability | 0.25% FS Max |
| Zero offset | ※0±0.4mV/V |
| Sensitivity | ※2.0-4.0mV/V, Typ: 3.0mV/V/FS |
| Response time | ＜ 2mS |
| Insulation resistance | ＞ 2KV |
| Zero-point long term stability@25℃ | Zero@25℃：＜0.25 FSO (no time accumulation） |
| Cycle life | 2 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃ |
Product Range
|
CPS18635H /CPS18635H
|
|||
|
6.35mm Series
|
|||
| Product Model | Working Pressure Range | Overload Pressure | Burst Pressure |
| HXL-CPS18635G002F | 0-2 Bar | 2 | 4 |
| HXL-CPS18635G005F | 0-5 Bar | 10 | 15 |
| HXL-CPS18635G010F | 0-10 Bar | 20 | 30 |
| HXL-CPS18635G016F | 0-16 Bar | 32 | 48 |
| HXL-CPS18635G020F | 0-20 Bar | 40 | 60 |
| HXL-CPS18635G025F | 0-25 Bar | 50 | 75 |
| HXL-CPS18635G030F | 0-30 Bar | 60 | 90 |
| HXL-CPS18635G050F | 0-50 Bar | 100 | 150 |
| HXL-CPS18635G100F | 0-100 Bar | 200 | 300 |
| HXL-CPS18635G200F | 0-200 Bar | 300 | 500 |
| HXL-CPS18635G300F | 0-300 Bar | 450 | 600 |
| HXL-CPS18635G400F | 0-400 Bar | 600 | / |
| HXL-CPS18635G600F | 0-600 Bar | 800 | / |
| 3.50mm Series | |||
| Product Model | Working Pressure Range | Overload Pressure | Burst Pressure |
| HXL-CPS18350G005H | 0-5 Bar | 10 | 15 |
| HXL-CPS18350G010H | 0-10 Bar | 20 | 30 |
| HXL-CPS18350G016H | 0-16 Bar | 32 | 48 |
| HXL-CPS18350G020H | 0-20 Bar | 40 | 60 |
| HXL-CPS18350G025H | 0-25 Bar | 50 | 75 |
| HXL-CPS18350G030H | 0-30 Bar | 60 | 90 |
| HXL-CPS18350G050H | 0-50 Bar | 100 | 150 |
| HXL-CPS18350G100H | 0-100 Bar | 200 | 300 |
