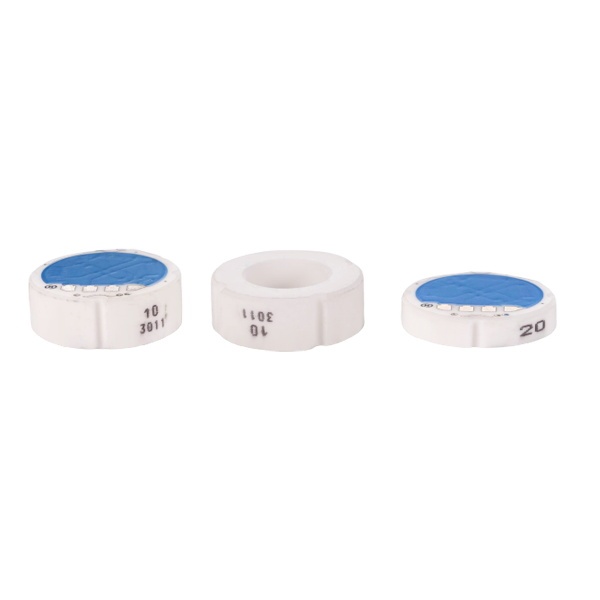

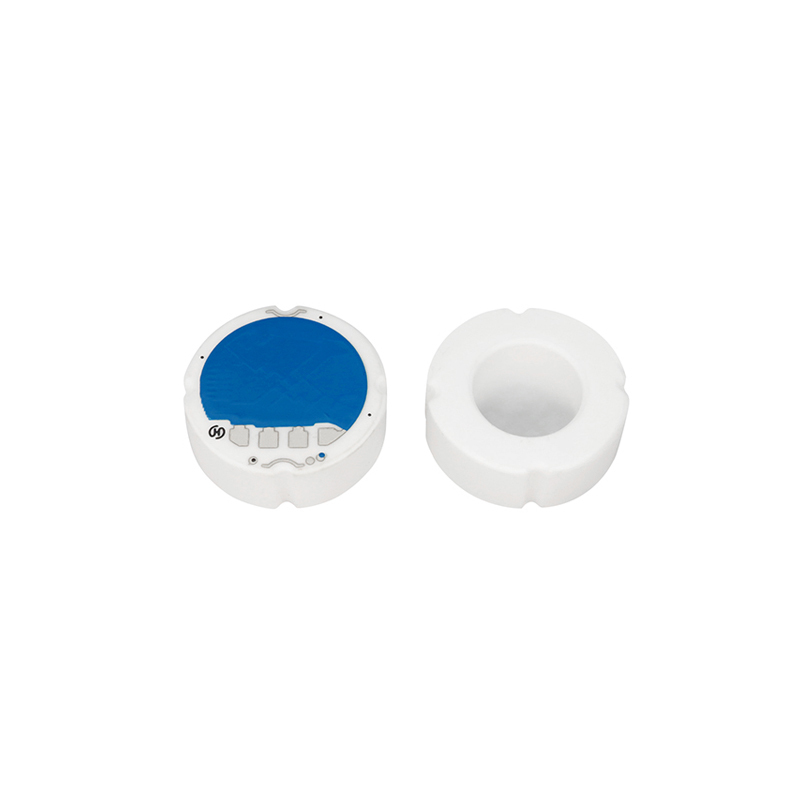

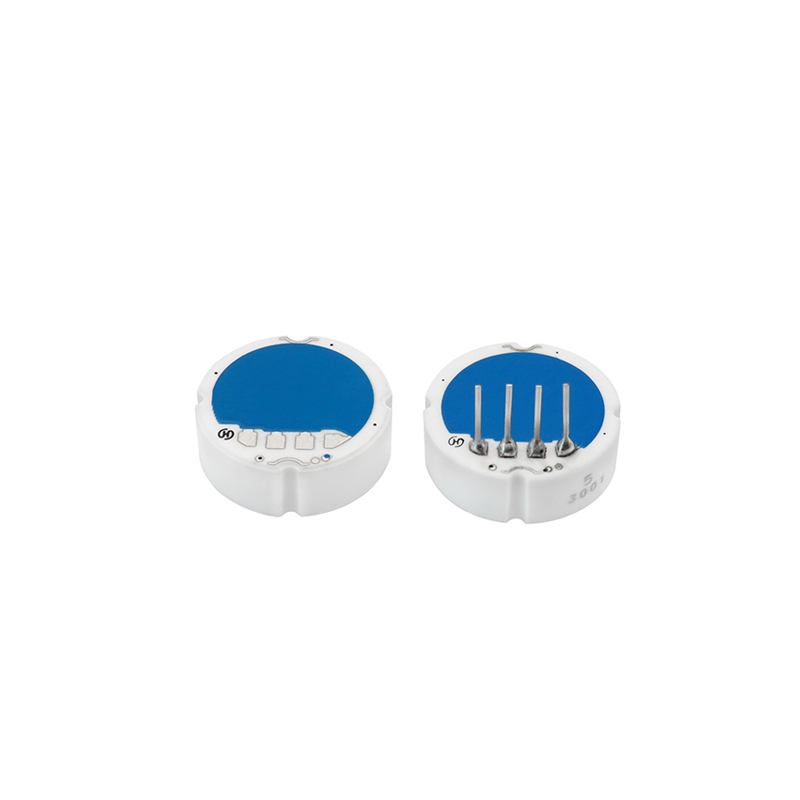

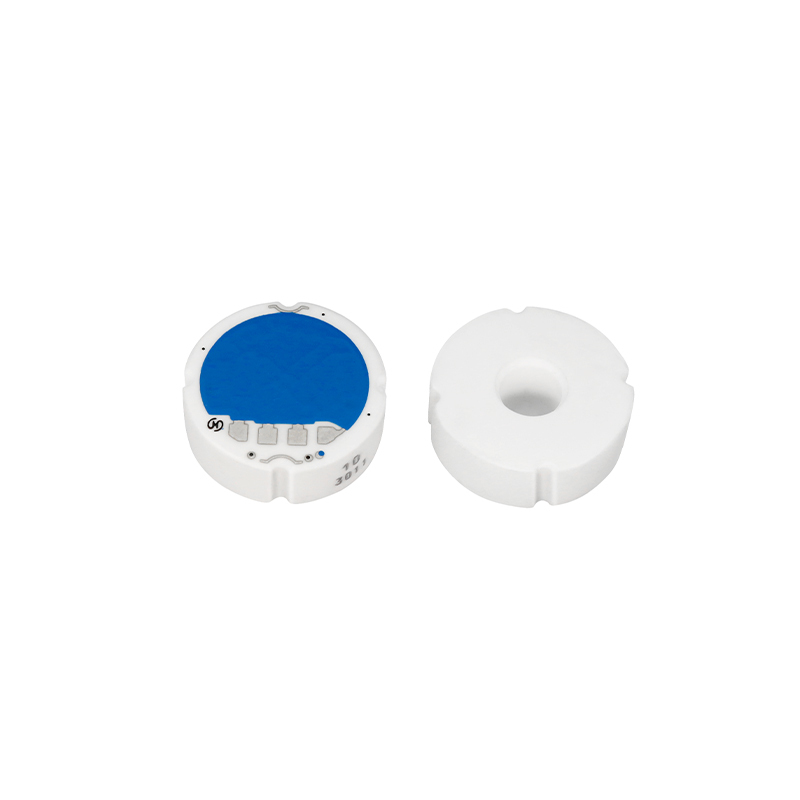

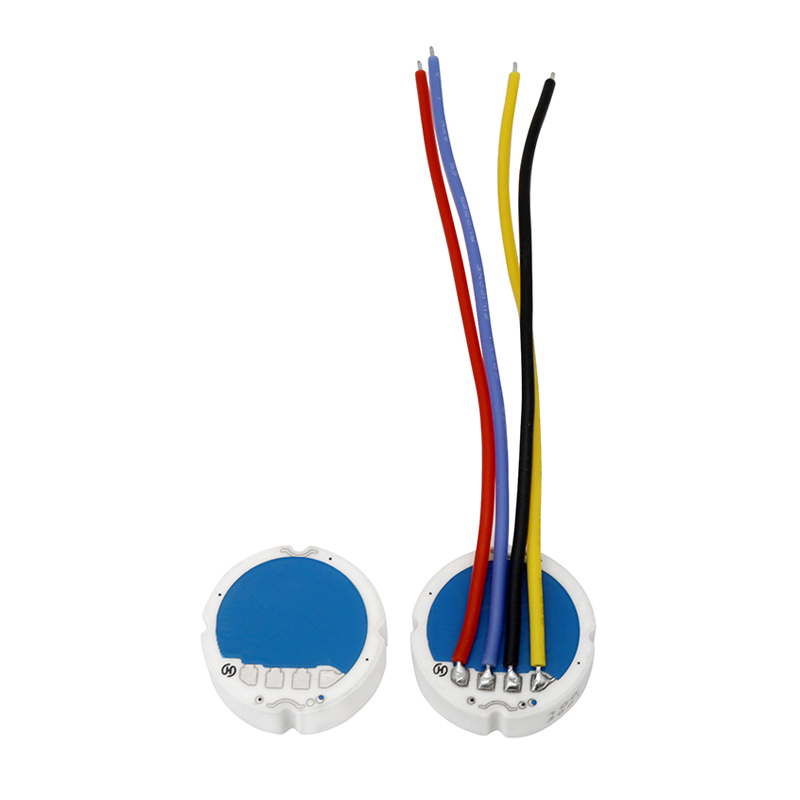

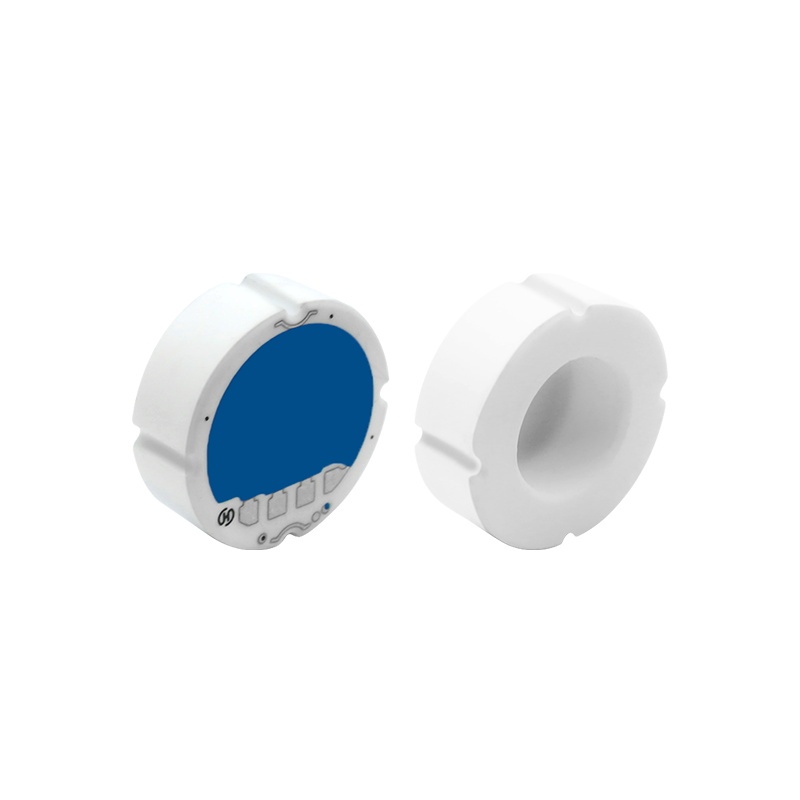

Ceramic base with high elasticity mold
Excellent corrosion and wear resistance
Shock resistant
Wide temperature range
Internal active temperature compensation with low temperature drift coefficient
Compact size, easy to package
Patented circuit layout design
Product Parameters
| Parameters | Electrical characterisitics |
| Series Name | CPS18635G/ CPS350G |
| Type | Monolithic |
| Size (diameter x height) | φ18*6.35 mm/ φ18*3.50mm |
| Supply voltage | 2-30 V DC |
| Bridge road impedance | ※10.0kΩ ± 30% |
| TCR | ≤ 100 ppm/℃@-40℃~125 ℃ |
| Operating temperature | ‘-40 ℃~135℃ |
| Storage temperature | ’-40℃~150 ℃ |
| Temperature dirft | ※ Tco&Tcs 0.02%FS/℃ Max |
| Nonlinearity | 0.25% FS Max |
| Hysteresis & repeatability | 0.25% FS Max |
| Zero offset | ※0±0.4mV/V |
| Sensitivity | ※2.0-4.0mV/V, Typ: 3.0mV/V/FS |
| Response time | ＜ 2mS |
| Insulation resistance | ＞ 2KV |
| Zero-point long term stability@25℃ | Zero@25℃：＜0.25 FSO (no time accumulation） |
| Cycle life | 2 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃ |
Product Range
|

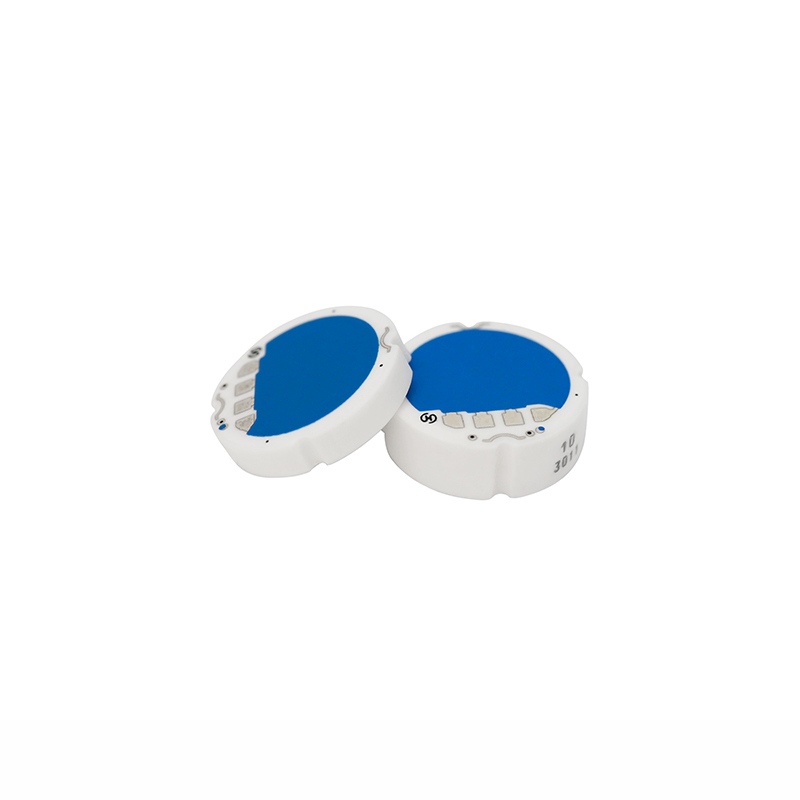

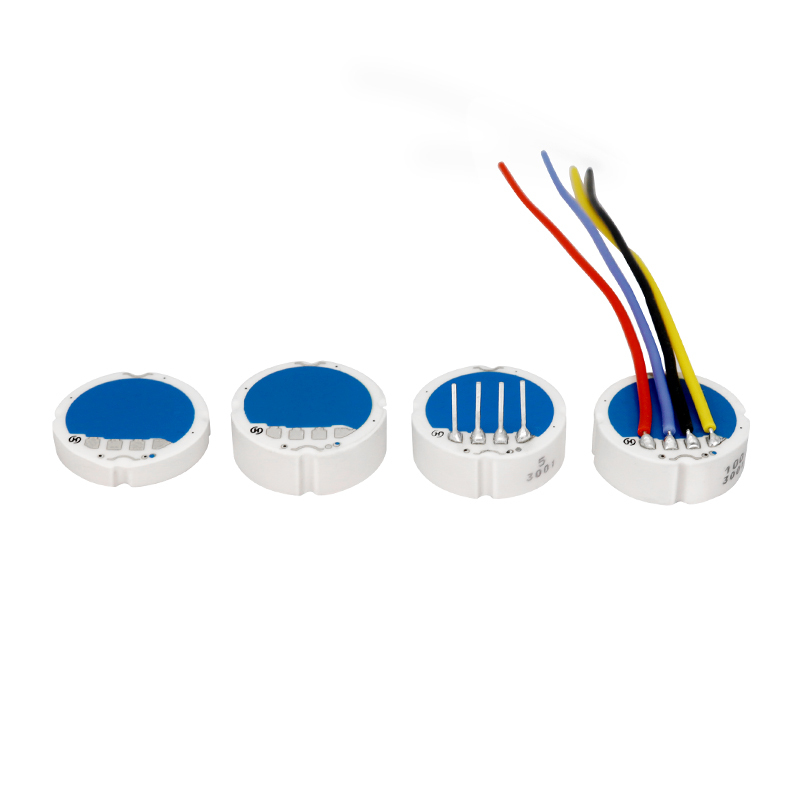

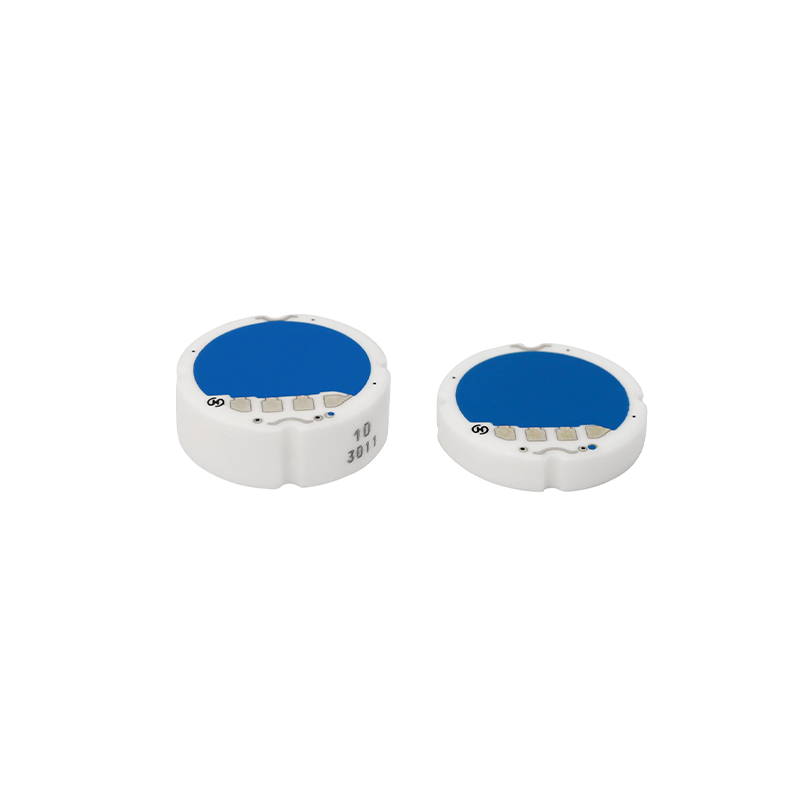

CPS18635G /CPS18350G
|
|||
|
6.35mm Series
|
|||
| Product Model | Working Pressure Range | Overload Pressure | Burst Pressure |
| HXL-CPS18635G002C | 0-2 Bar | 2 | 4 |
| HXL-CPS18635G005C | 0-5 Bar | 10 | 15 |
| HXL-CPS18635G010C | 0-10 Bar | 20 | 30 |
| HXL-CPS18635G016C | 0-16 Bar | 32 | 48 |
| HXL-CPS18635G020C | 0-20 Bar | 40 | 60 |
| HXL-CPS18635G025C | 0-25 Bar | 50 | 75 |
| HXL-CPS18635G030C | 0-30 Bar | 60 | 90 |
| HXL-CPS18635G050C | 0-50 Bar | 100 | 150 |
| HXL-CPS18635G100C | 0-100 Bar | 200 | 300 |
| HXL-CPS18635G200C | 0-200 Bar | 300 | 500 |
| HXL-CPS18635G300C | 0-300 Bar | 450 | 600 |
| HXL-CPS18635G400C | 0-400 Bar | 600 | / |
| HXL-CPS18635G600C | 0-600 Bar | 800 | / |
| 3.50mm Series | |||
| Product Model | Working Pressure Range | Overload Pressure | Burst Pressure |
| HXL-CPS18350G005C | 0-5 Bar | 10 | 15 |
| HXL-CPS18350G010C | 0-10 Bar | 20 | 30 |
| HXL-CPS18350G020C | 0-20 Bar | 40 | 60 |
| HXL-CPS18350G030C | 0-30 Bar | 60 | 90 |
| HXL-CPS18350G100C | 0-100 Bar | 200 | 300 |
