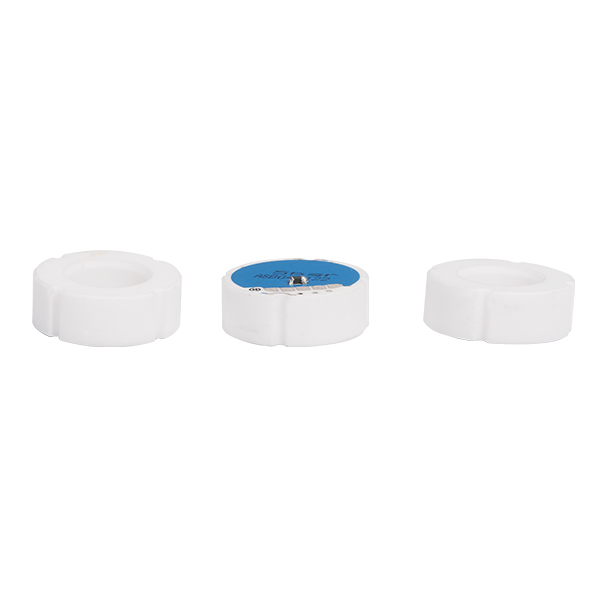

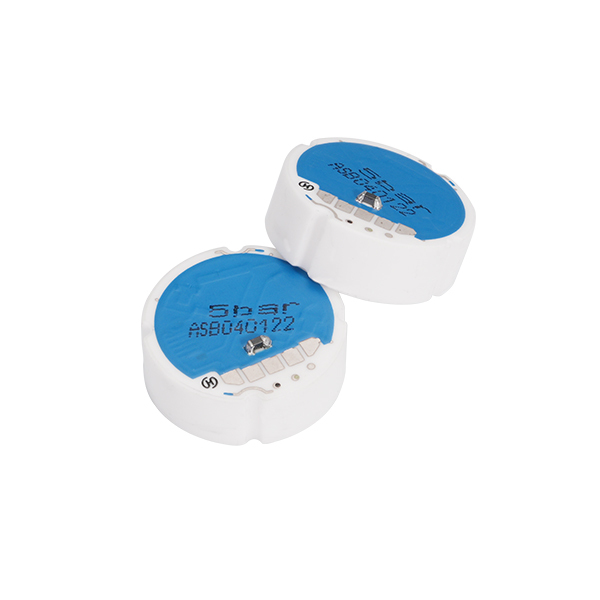

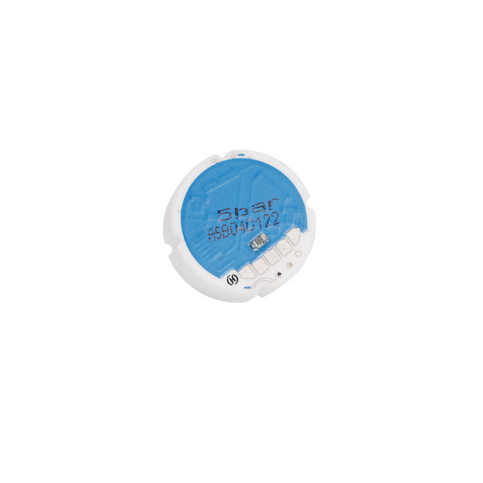

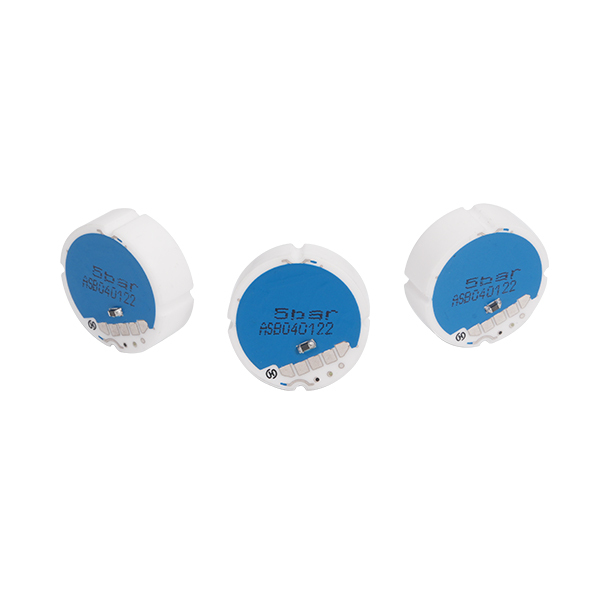

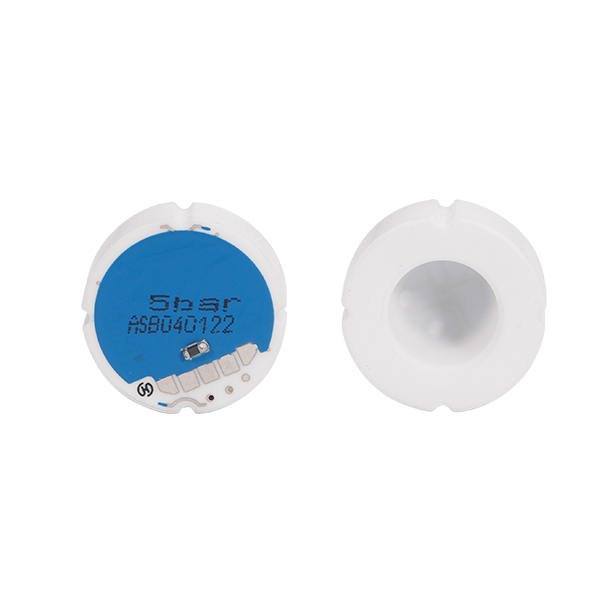

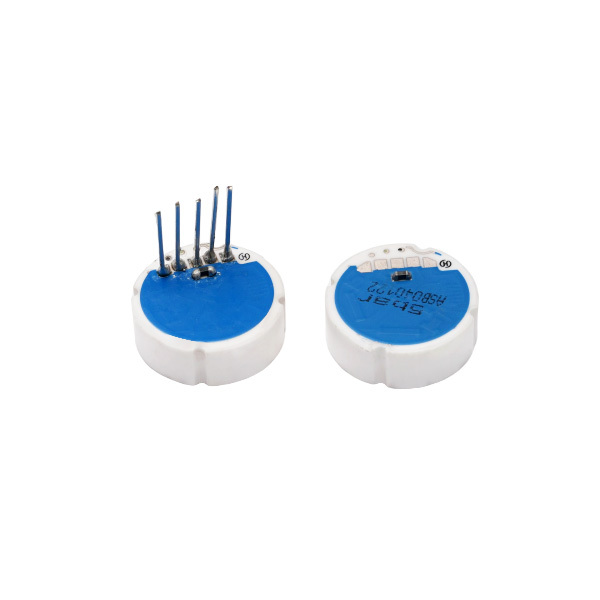

Description

Produc Introduction

Pressure and temperature combined into one

Ceramic base with high elasticity mold

Excellent corrosion and wear resistance

Shock resistant

Wide temperature range

Internal active temperature compensation with low temperature drift coefficient

Compact size, easy to package

Patented circuit layout design

Product Parameters

Parameters

Electrical characterisitics

Series Name

CPS18635E/ CPS350E Series

Type

combined pressure & temperature Monolithic

Size (diameter x height)

φ18*6.35 mm/φ 18*3.50mm

Supply voltage

2-30 V DC

Bridge road impedance

10.0kΩ ± 30%

TCR

≤ 100 ppm/℃@-40℃~125 ℃

NTC

※ 10KΩ±1%@25℃ B( 25℃/85 ℃ =3434K ±1%

Operating temperature

‘-40 ~135

Storage temperature

’-40~150

Temperature dirft

 Tco&Tcs 0.02%FS/ Max

Nonlinearity

0.25% FS Max

Hysteresis & repeatability

0.25% FS Max

Zero offset

0±0.4mV/V

Sensitivity

※2.0-4.0mV/V, Typ: 3.0mV/V/FS

Response time

 2mS

Insulation resistance

 2KV

Zero-point long term stability@25

Zero@25℃:<0.25 FSO (no time accumulation

Cycle life

2 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35


Product Range

CPS18635E /CPS18350E

6.35mm Series

Product Model

Working Pressure Range

Overload Pressure

Burst Pressure

HXL-CPS18635G002T

0-2 Bar

4

6

HXL-CPS18635G005T

0-5 Bar

10

15

HXL-CPS18635G010T

0-10 Bar

20

30

HXL-CPS18635G016T

0-16 Bar

32

48

HXL-CPS18635G020T

0-20 Bar

40

60

HXL-CPS18635G025T

0-25 Bar

50

75

HXL-CPS18635G030T

0-30 Bar

60

90

HXL-CPS18635G050T

0-50 Bar

100

150

HXL-CPS18635G100T

0-100 Bar

200

300

HXL-CPS18635G200T

0-200 Bar

300

500

HXL-CPS18635G300T

0-300 Bar

450

600

HXL-CPS18635G400T

0-400 Bar

600

/

HXL-CPS18635G600T

0-600 Bar

800

/









3.50mm Series

Product Model

Working Pressure Range

Overload Pressure

Burst Pressure

HXL-CPS18350G005T

0-5 Bar

10

15

HXL-CPS18350G010T

0-10 Bar

20

30

HXL-CPS18350G020T

0-20 Bar

40

60

HXL-CPS18350G030T

0-30 Bar

60

90

HXL-CPS18350G050T

0-50 Bar

100

150

HXL-CPS18350G100T

0-100 Bar

200

300
