* Supports reverse connection protection and short-circuit protection, eliminating concerns about board damage caused by short circuits or incorrect wiring.
* ESD safeguarded against electrostatic discharge, eliminating worries about component failure from winter static.
* ESD safeguarded against electrostatic discharge, eliminating worries about component failure from winter static.
* IIC digital output (compatible with 3.3V/5.0V power supply) and 0.5-4.5V DC analog voltage output options available.
*The product is manufactured in compliance with the IATF 16949:2016 automotive electronic component quality management system requirements, ensuring high quality and reliability.
* High-quality 6061 aluminum alloy housing material, offering oxidation resistance and high strength for extended service life.
* High-quality 6061 aluminum alloy housing material, offering oxidation resistance and high strength for extended service life.
* It employs a Flush diaphragm ceramic pressure sensor as its core sensing element, delivering high accuracy and resilience against 5-10 times overpressure. It is also resistant to corrosive chemical mixtures found in fertilizers, pesticides, and detergents.

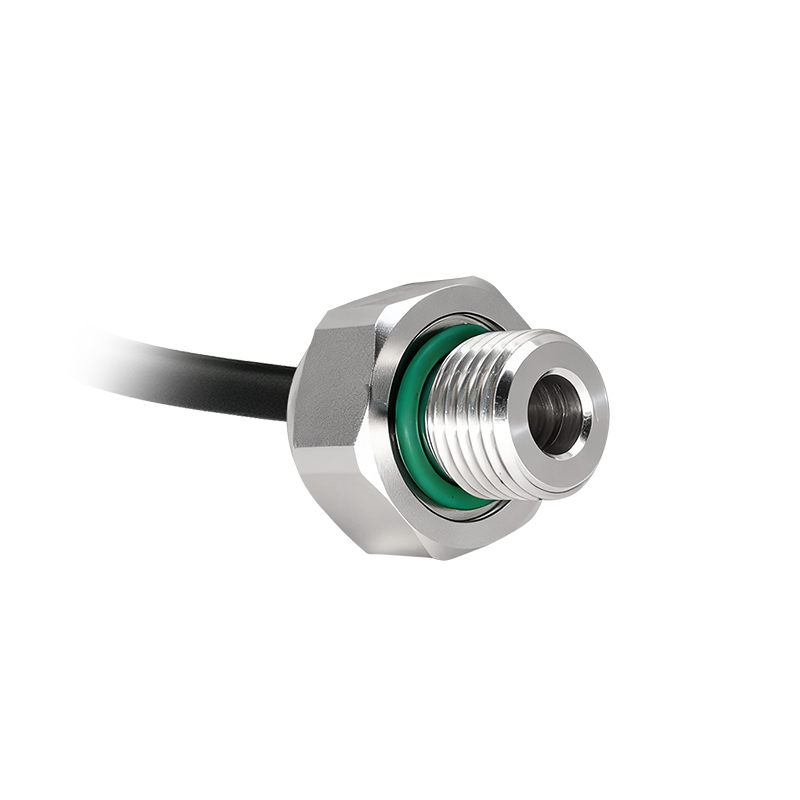

* φ6mm pressure guide hole allows direct water contact with the ceramic sensing diaphragm, eliminating concerns about pressure inaccuracy due to clogging.
* φ6mm pressure guide hole allows direct water contact with the ceramic sensing diaphragm, eliminating concerns about pressure inaccuracy due to clogging.
* Ultra-low power consumption of 3-5mW significantly extends battery life.
* Supports zero-point output recalibration, allowing Pressure sensors with usage-induced deviations to restore high accuracy.

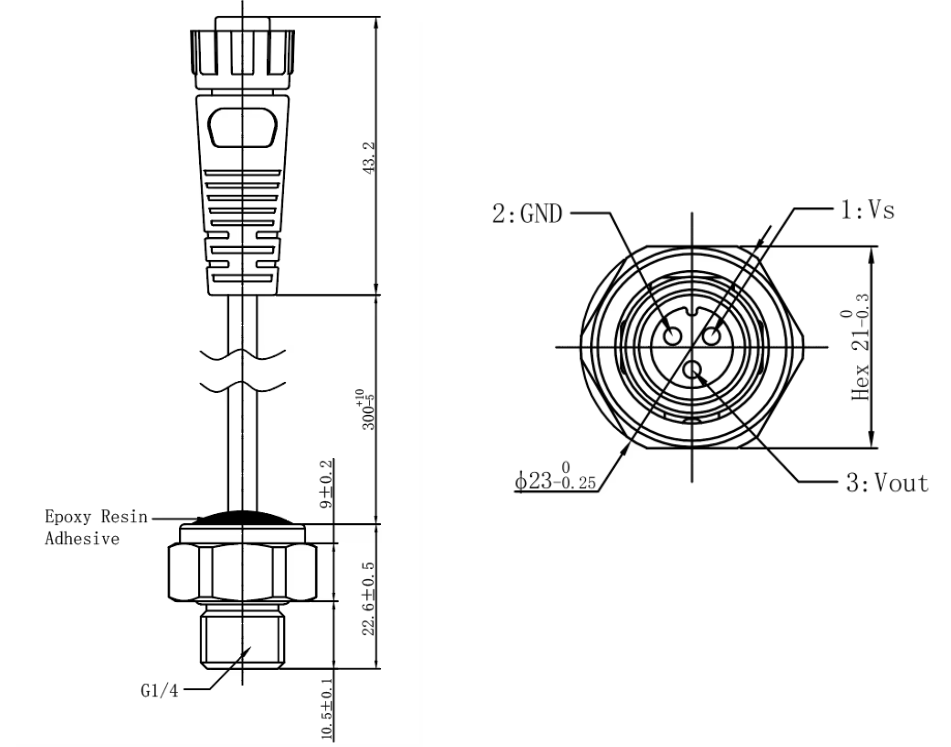

Product structure
Product Parameters
FAQ
Q1: Are your company's products manufactured in-house? Is it a factory?
A: Yes, we have a fully automated production facility of over 4,000 square meters in Jiangxi.
Q2: What is the production capacity of the factory?
A: We produce up to 300,000 sets per month.
Q3: What is your typical lead time for delivery?
A: It ranges from 3 days to 30 days, depending on the order quantity and specific requirements.
Q4: What are the advantages of your products? How do they differ from others?
A: Our products have excellent consistency in quality due to our fully automated production lines, achieving a comprehensive TEB accuracy of up to 1%.
Q5: Do you have any R&D patents?
A: Yes, we have 25 proprietary patent applications, including 9 national patents.
Q6: Are your products specifically for gauge pressure?
A: We offer gauge pressure, absolute pressure, and sealed gauge pressure products.
Q7: Can your pressure transmitters be customized according to our requirements?
A: Yes, we support customization of parameters such as measurement range, output signal, thread interface and protection level to meet your personalized application needs.
Q8: What is the working principle of your ceramic pressure transmitter?
A: Our transmitter adopts a flush diaphragm ceramic pressure sensor as the core component. When the pressure acts on the ceramic diaphragm, it will produce a tiny deformation, which is converted into a standard electrical signal output through the Wheatstone bridge circuit, so that the pressure value can be measured accurately.
Q9: In addition to pressure transmitters, does your company manufacture any other products?
A: In addition to manufacturing transmitters, we also produce pressure sensor cells and modules.

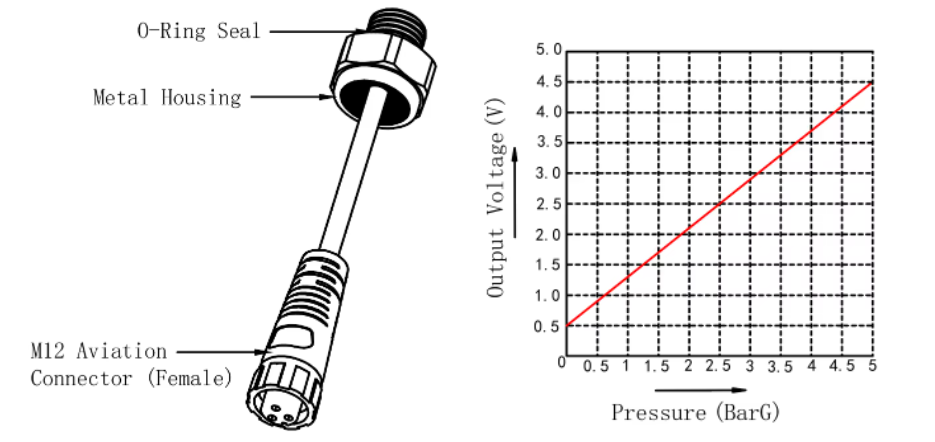

Product structure
Product Parameters
|
Working Voltage
|
4.75-16 VDC
|
|||
|
Working Current
|
＜3 mA,Typical Value: 1.5 mA
|
|||
|
Pressure Range
|
0-5 BarG
|
|||
|
0verload Pressure
|
＞2 times
|
|||
|
Burst Pressure
|
＞5 times
|
|||
|
0utput Voltage
|
※0.5-4.5V
|
|||
|
Operating temperature
|
-20℃~+85℃(Wire),-20℃~+105℃(Pressure sensor)
|
|||
|
Storage temperature
|
-20℃~+85℃
|
|||
|
0utput Accuracy
|
士0.5%FS @ 10℃-40℃， 士2%FS @ -20℃ +105℃
|
|||
|
Response Time
|
＜10mS
|
|||
|
Maximum Withstand Voltage
|
士20VDC
|
|||
|
ESD
|
Contact discharge:>8kV,Air discharge:>15kV
|
|||
|
Cycle Life
|
>2 Million Pressure Cycles @ 2-5Hz, full scale Pressure0，15-35℃
|
|||
|
Long -term Stability
|
Zero @25℃：＜0.25% FS0(No Time Accumulation)
|
|||
|
0perating Medium
|
Water, gas, oil and their mixtures
|
|||
|
Waterproof & Dustproof
|
IP6K8K
|
|||
