Series Name
|
RS186 2Bar
|
|
Type
|

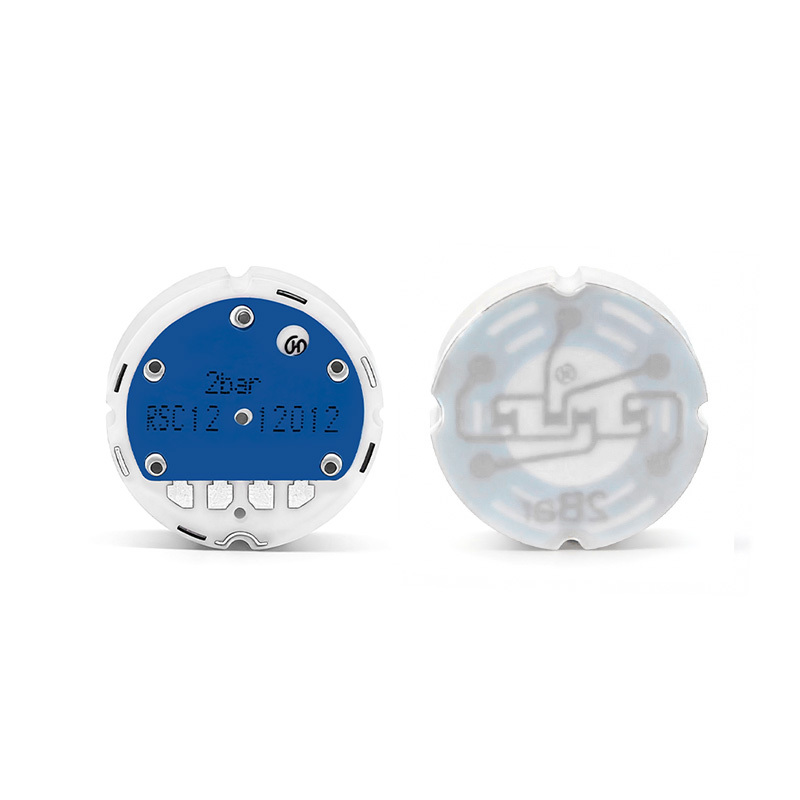

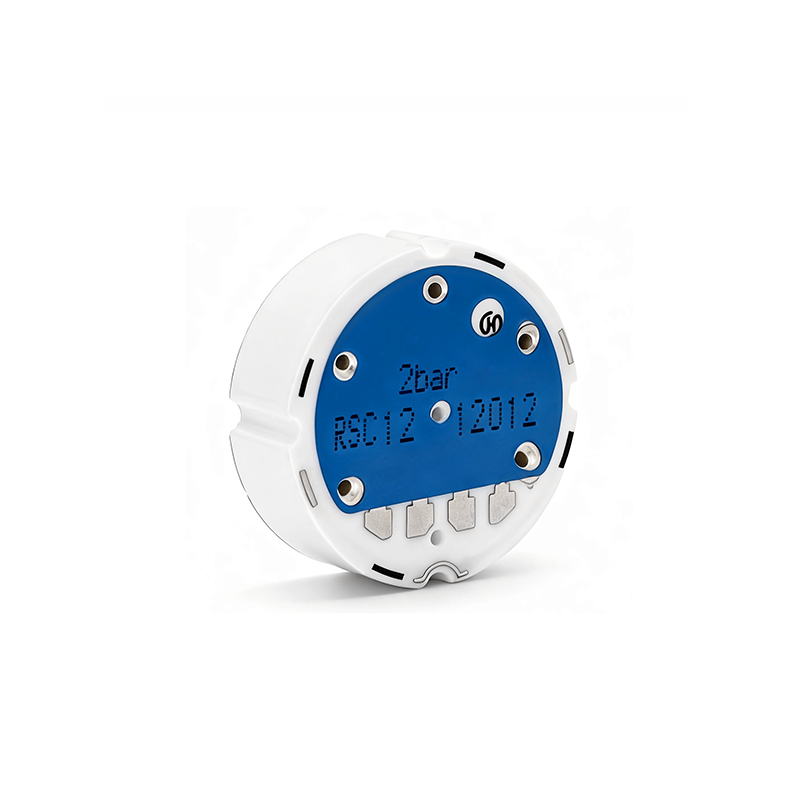

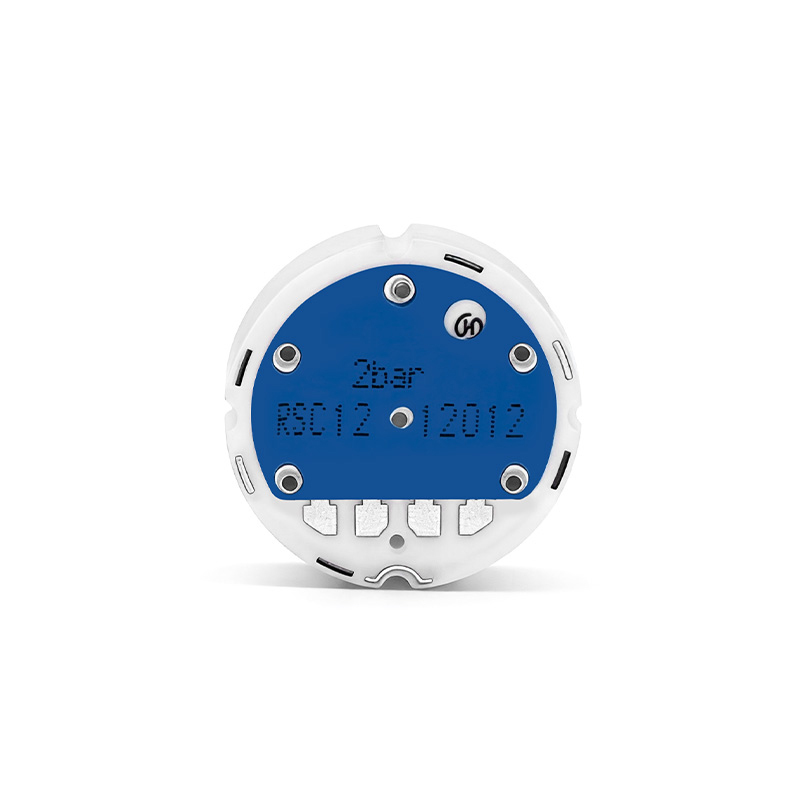

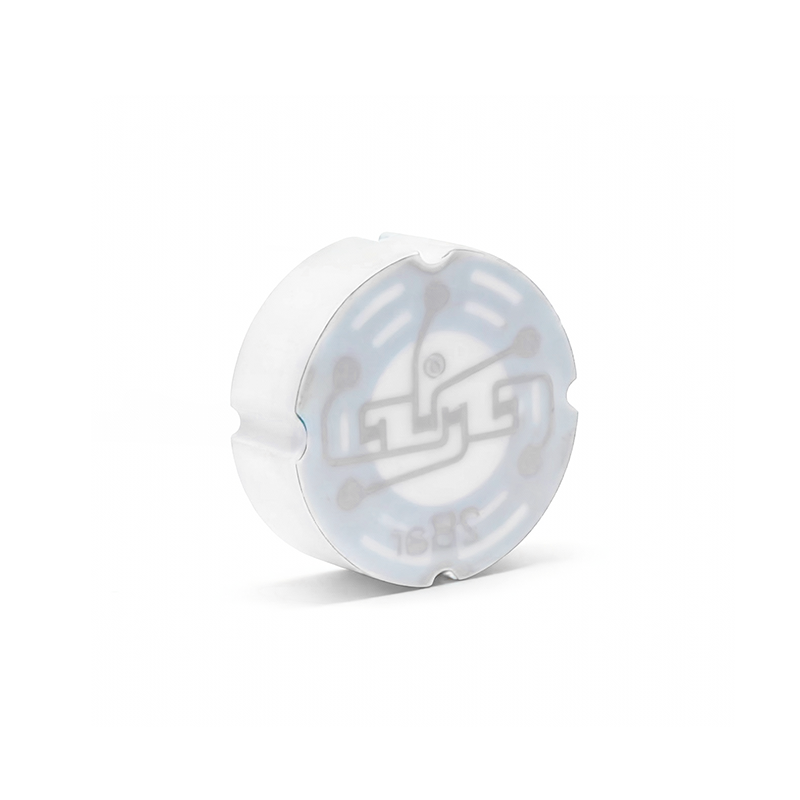

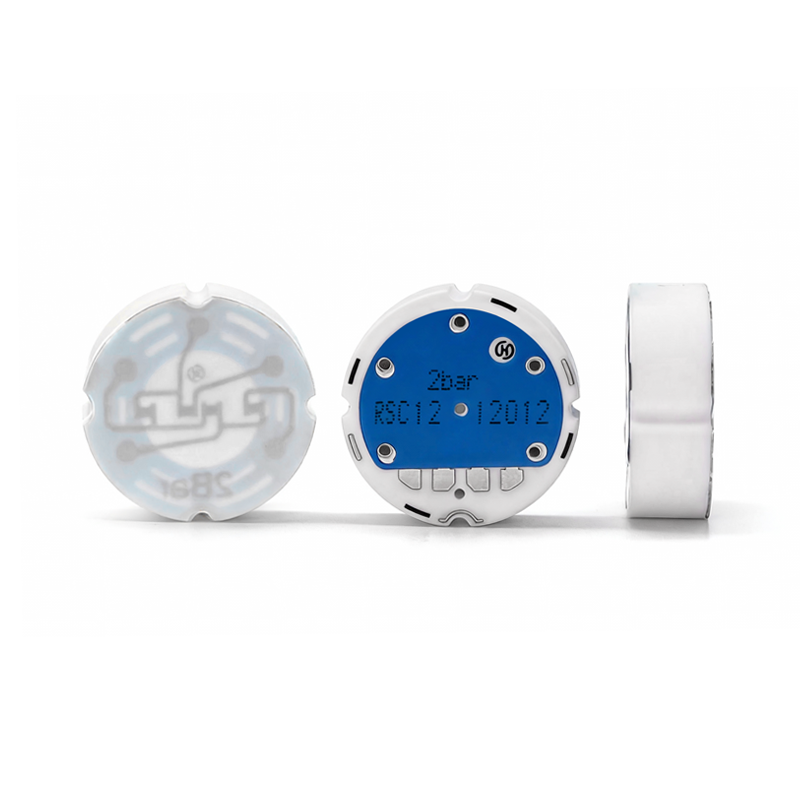

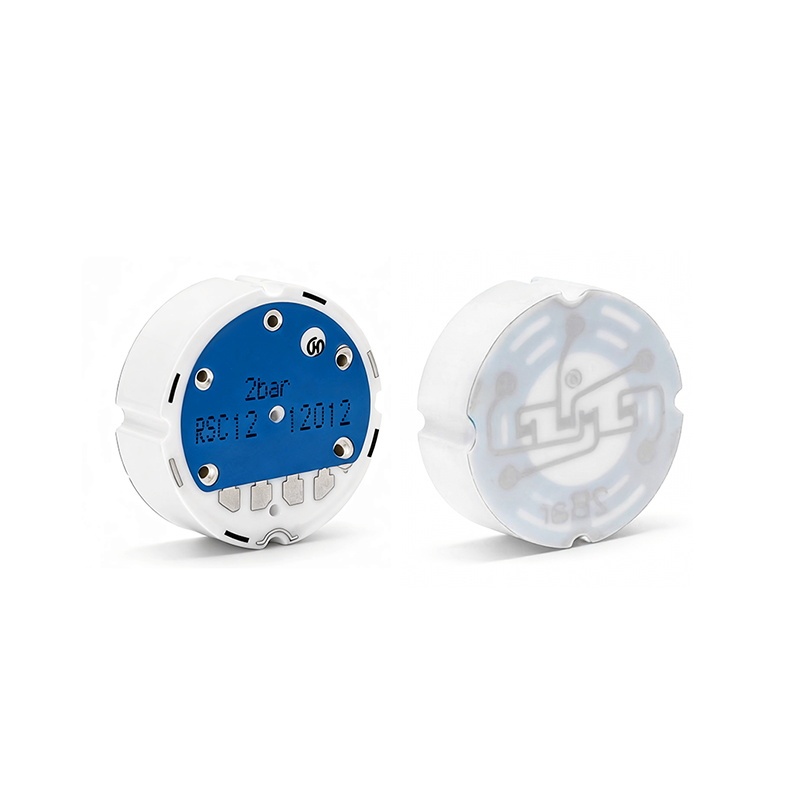

Temperature-Compensated Flush Diaphragm Ceramic Piezoresistive Sensor Core
|
|
Measured pressure type
|
Gauge Pressure, Absolute Pressure
|
|
Size (diameter x height)
|
18 x6.17mm
|
|
Supply voltage
|
2-30V DC
|
|
Bridge road impedance
|
10.0KQ士30%
|
|
TCR
|
<100ppm/℃@-40℃~125℃
|
|
Working pressure
|
0~2Bar
|
|
Overload pressure
|
>4Bar
|
|
Burst pressure
|
>12Bar
|
|
Operating temperature
|
-40℃~135℃
|
|
Storage temperature
|
-40℃~150℃
|
|
Temperature dirft
|
※Tco&Tcs 0.03%FSO/C Max.
|
|
Nonlinearity
|
0.30%FS Max
|
|
Hysteresis & repeatability
|
0.30%FS Max
|
|
Zero offset
|
※0±0.2mV/V
|
|
Sensitivity calculation formula△C:
|
※2.0-4.0mV/V/FS,典型值:3.0mV/V/FS
|
|
Response time
|
<2mS
|
|
Insulation resistance
|
>2KV
|
|
Zero-point long term stability@25℃
|
Zero@25℃：＜0.2 FSO (no time accumulation）
|
|
Cycle life
|
＞2 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃
|
