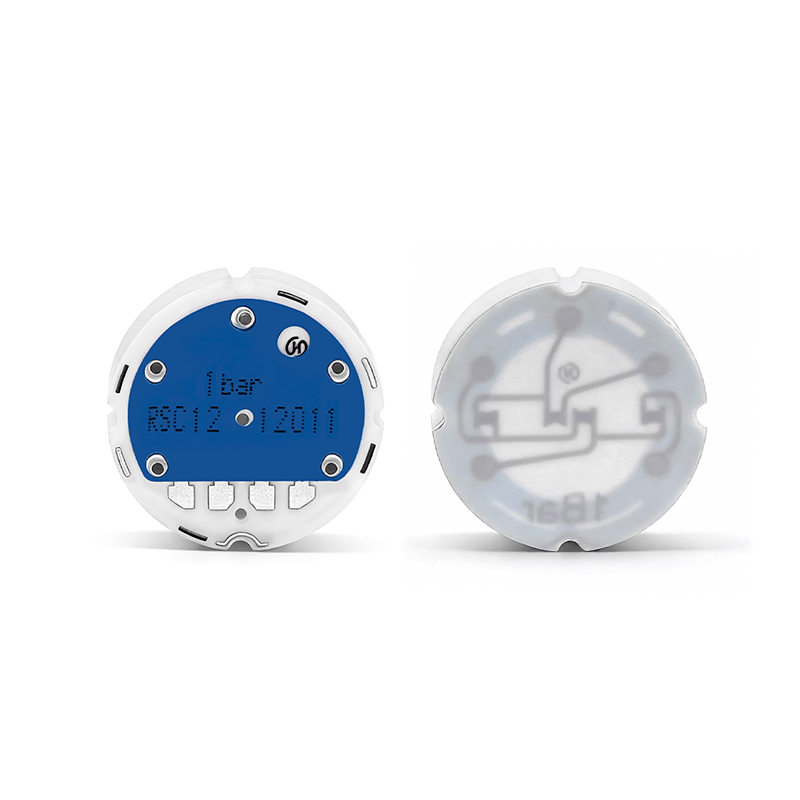

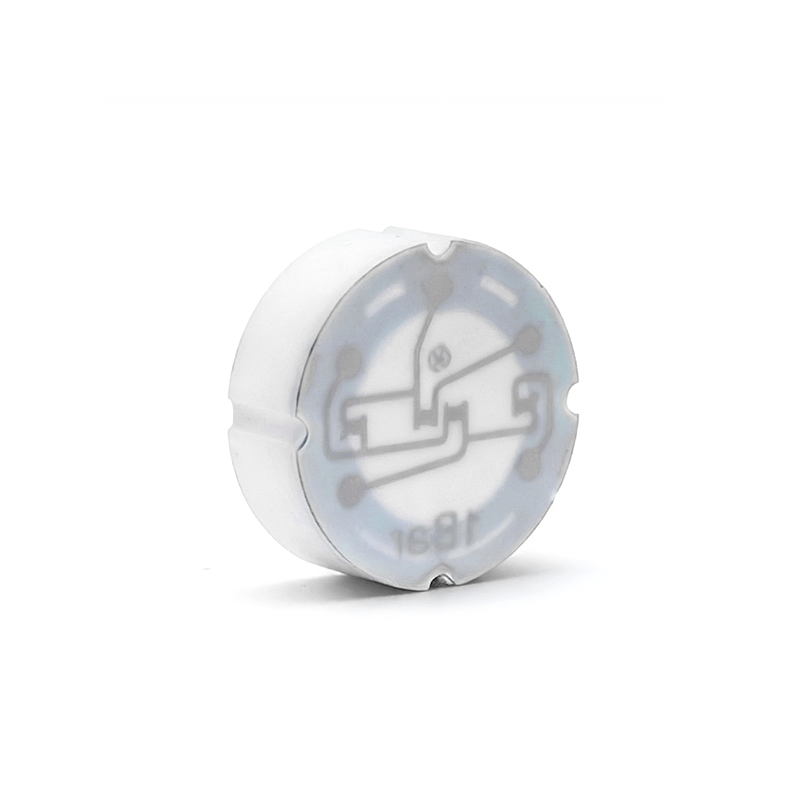

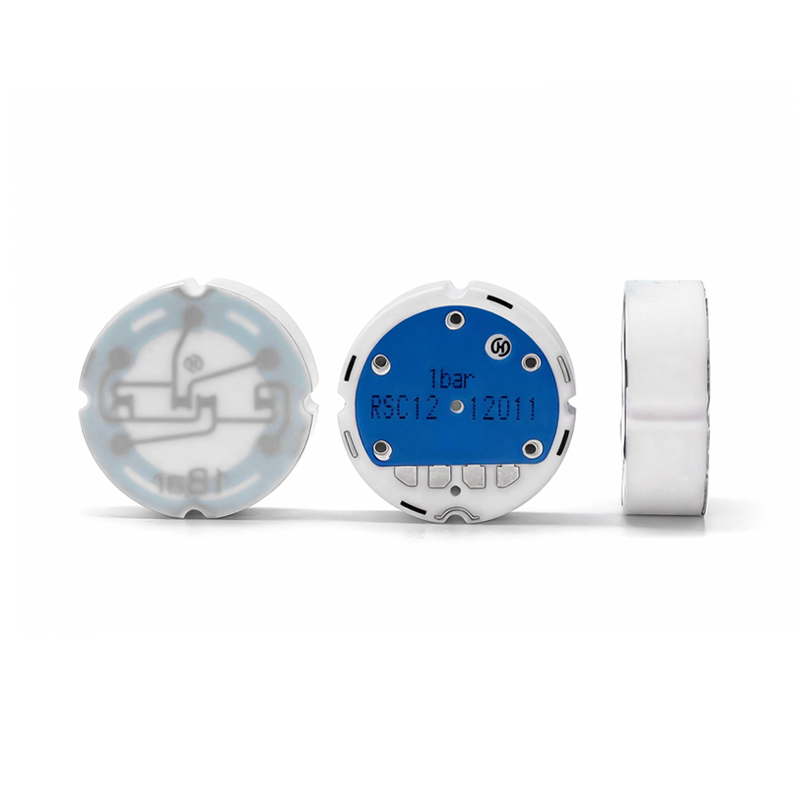

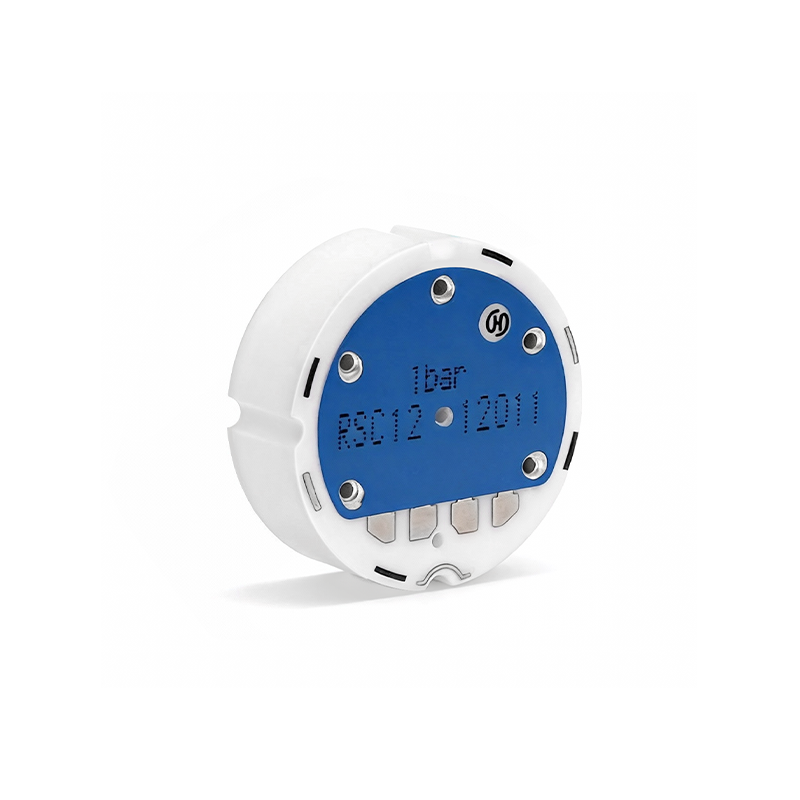

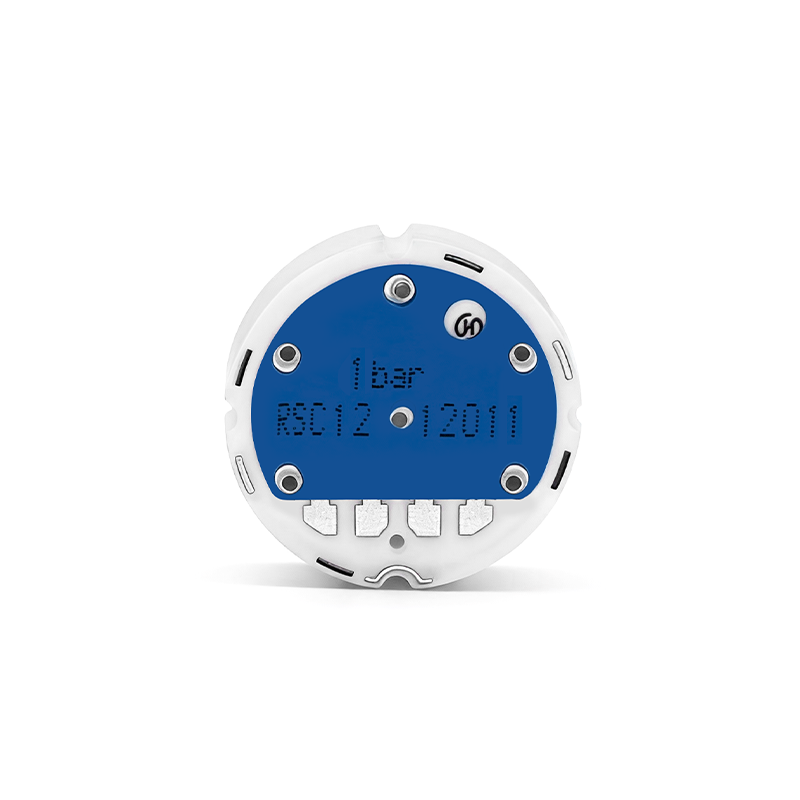

1bar High-accuracy Flush Diaphragm Piezoresisitive Ceramic Pressure Sensor

No.RS186
With its high cost-effectiveness, the temperature-compensated ceramic piezoresistive sensor core becomes the preferred choice for pressure sensing elements in IoT applications. It is widely used in measuring the pressure of air, water, oil, and other media. It has extensive applications in areas such as automotive, air compressors, firefighting water pipes, industry, and household appliances. We can customize various shapes and sizes of pressure-sensitive cores according to custom
$4.00
  • 1bar High-accuracy Flush Diaphragm Piezoresisitive Ceramic Pressure Sensor
  • 1bar High-accuracy Flush Diaphragm Piezoresisitive Ceramic Pressure Sensor
  • 1bar High-accuracy Flush Diaphragm Piezoresisitive Ceramic Pressure Sensor
  • 1bar High-accuracy Flush Diaphragm Piezoresisitive Ceramic Pressure Sensor
  • 1bar High-accuracy Flush Diaphragm Piezoresisitive Ceramic Pressure Sensor

Description

    • High-elasticity ceramic substrate for molds
    • Zero-point and full-scale laser calibration
    • Excellent corrosion and wear resistance
    • Shock and vibration resistance, wide operating temperature range
    • High sensitivity, high precision, high stability
    • Internal active temperature compensation, extremely low temperature drift coefficient
    • Compact size, easy to package
    • Patented circuit and graphic design

Produc Parameters

Series Name
RS186 1Bar
Type
Temperature-Compensated Flush Diaphragm Ceramic Piezoresistive Sensor Core
Measured pressure type
Gauge Pressure, Absolute Pressure
Size (diameter x height)
18 x6.17mm
Supply voltage
2-30V DC
Bridge road impedance
10.0KQ士30%
TCR
<100ppm/℃@-40℃~125℃
Working pressure
0~1. 0Bar
Overload pressure
>2Bar
Burst pressure
>10Bar
Operating temperature
-40°C~135°C
Storage temperature
-40°C~150°C
Temperature dirft
※Tco&Tcs 0.03%FSO/°C Max.
Nonlinearity
0.40%FS Max
Hysteresis & repeatability
0.40%FS Max
Zero offset
※0±0.2mV/V
Sensitivity
1.5-3.5mV/V/FS,典型值:2.5mV/V/FS
Response time
<2ms
Insulation resistance
>2KV
Zero-point long term stability@25℃
Zero@25℃:<0.2 FSO (no time accumulation)
Cycle life
>2 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃
Working medium
oil, water,gas,refrigerant,coolant, chemical solvents, detergents, etc
