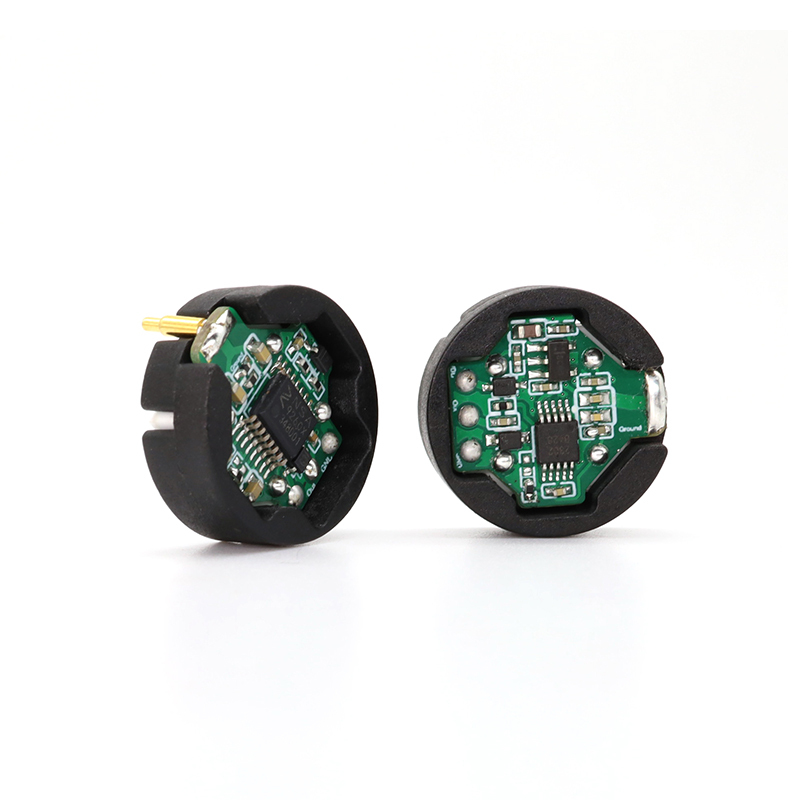

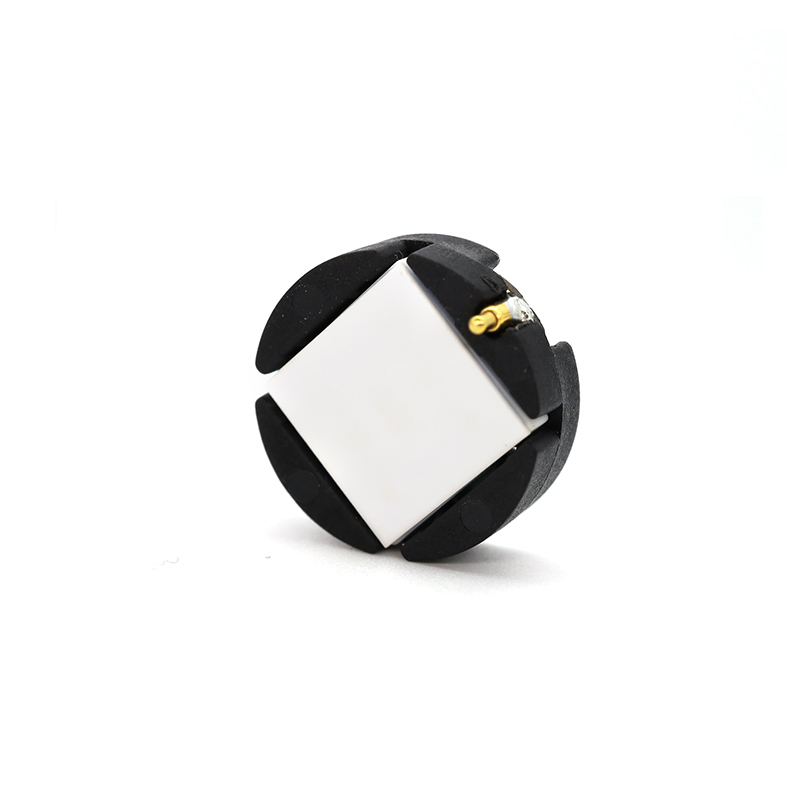

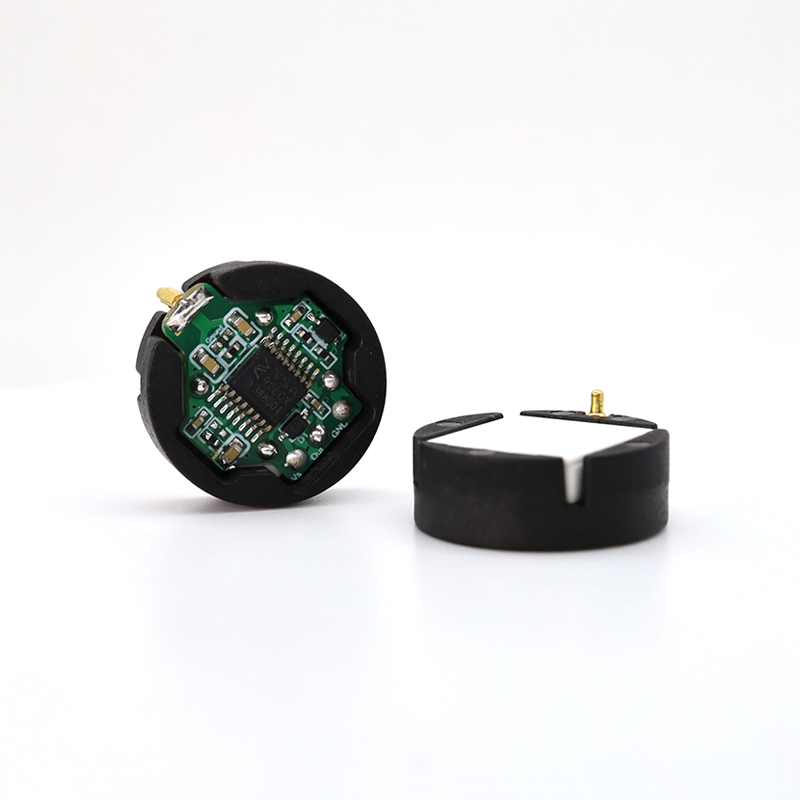

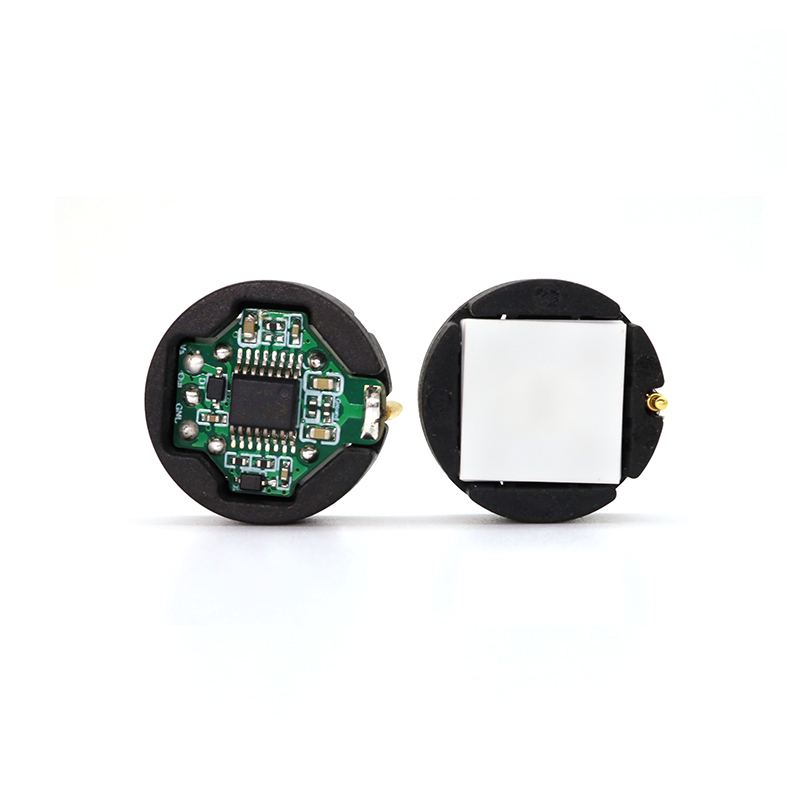

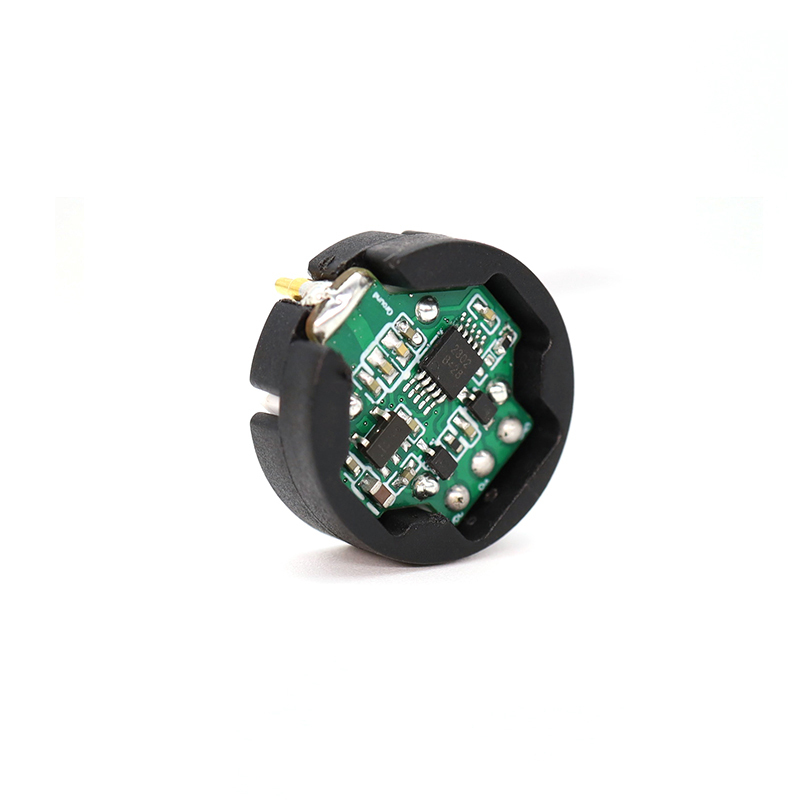

12mm 5Bar 12mm Flush Diaphragm Piezoresistive Ceramic IIC Digital Output Pressure Sensing Module for Air Water Oil

Name: 12mm 5Bar 12mm Flush Diaphragm Piezoresistive Ceramic IIC Digital Output Pressure Sensing Module for Air Water Oil
Brand: MY SHOP
SKU: RS123
Price: 35.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.RS123

Product Features

(1)Integrated design with high product stability
(2)Supports customization of various output signals such as voltage, IIC, etc.
(3)Easy and convenient to use
(4)Excellent EMC protection and reverse polarity protection

$35.00

Get The Latest Quote

Description

Working Voltage	3.0-5.5V DC
Withstand Voltage /Reverse Polarity Protection	Withstand Voltage:<6V DC / Reverse Polarity Protection
Working Current	＜5 mA (Typical: 1 mA)
0utput Voltage	I1C CCCCC-733333(HEX)/0.12~23-0.92~23(DEC)
Working Pressure	0-5 BarG
Overload Pressure	＞10Bar
Burst Pressure	＞40Bar
0perating Temperature	-40℃ ~125℃
Storage Temperature	-40℃~150℃
Output Accuracy	士0.5%FS@20-25℃
Zero Drift	0.03%FS/℃ Max.
Span Drift	0.015%FS/℃ Max.
Response Time	Pressure Response Time< 10 ms
Cycle Life	>2 Million Pressure Cycles@ 2-5Hz,0full scale Pressure 0,15-35'C
Long - term Stability	Zero @25'℃ : ＜0.25% FS0 (No Time Accumulation)
Working Medium	0il, Water, Gas, Refrigerant, Coolant, Chemical Solvents, etc.
