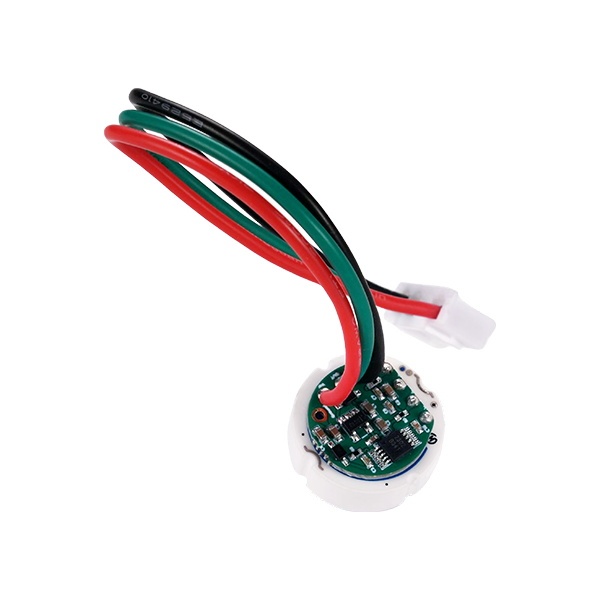

• CPS18635MV1、CPS18350MV1

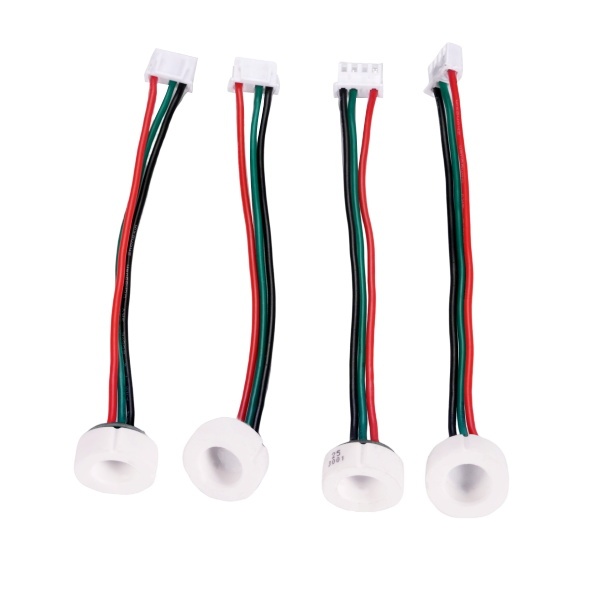

  • CPS18635MV1、CPS18350MV1

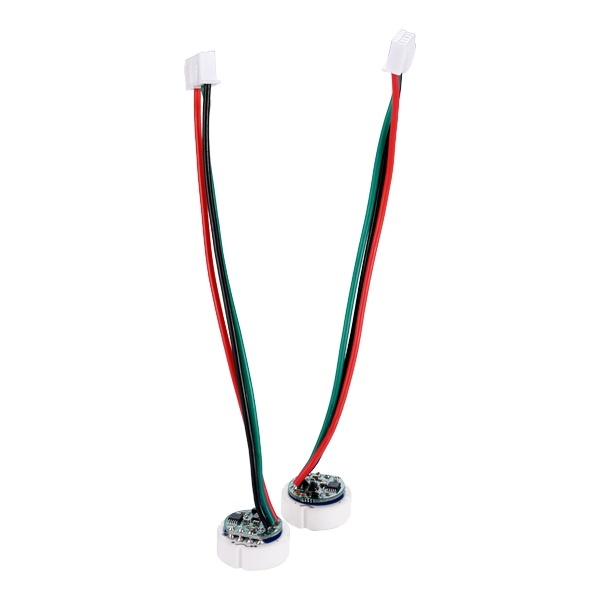

  • CPS18635MV1、CPS18350MV1

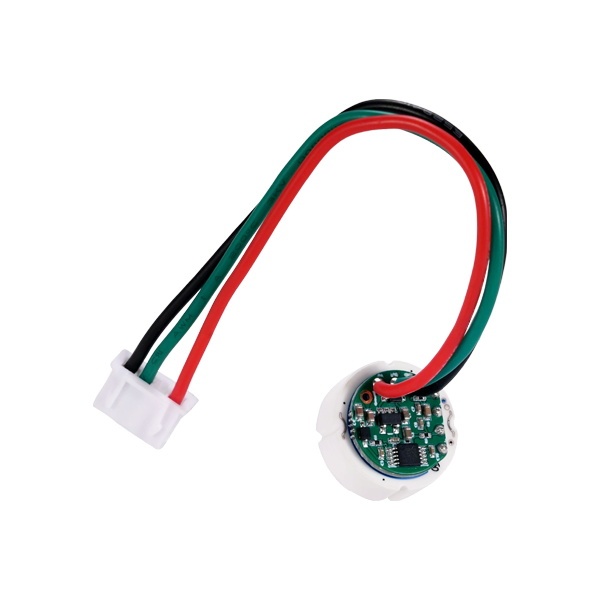

  • CPS18635MV1、CPS18350MV1

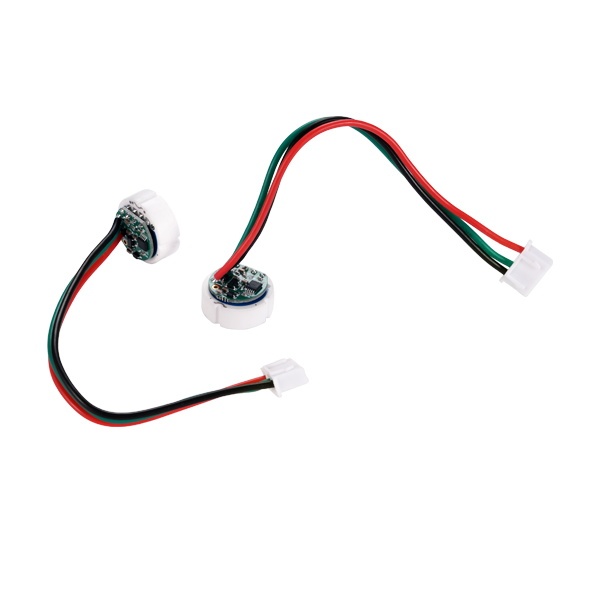

  • CPS18635MV1、CPS18350MV1

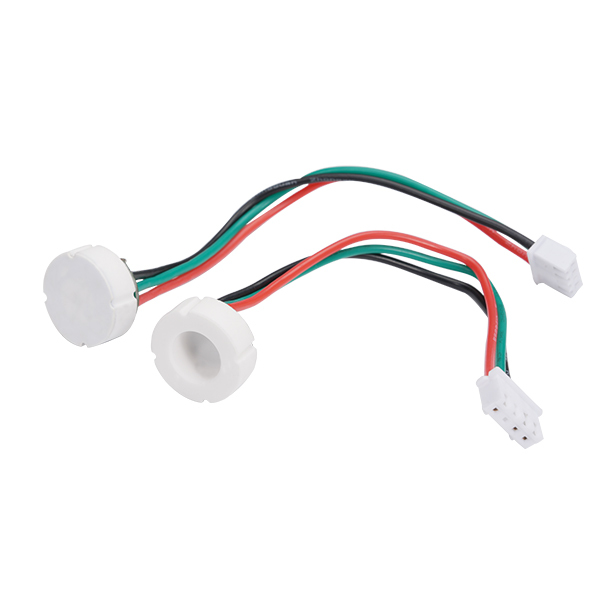

  • CPS18635MV1、CPS18350MV1

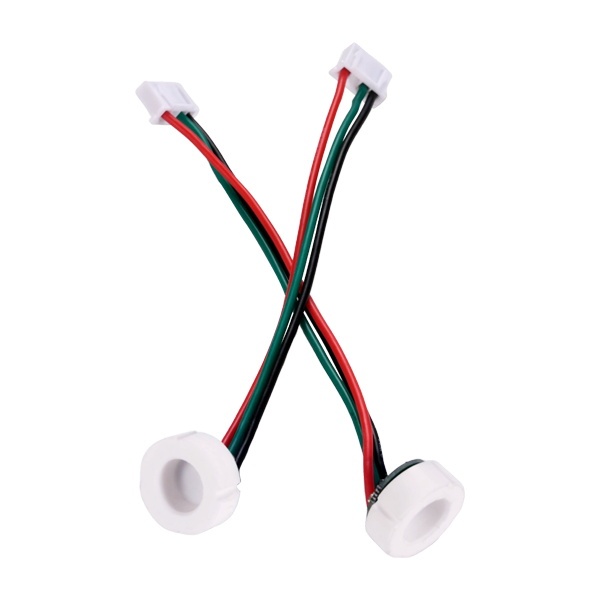

  • CPS18635MV1、CPS18350MV1

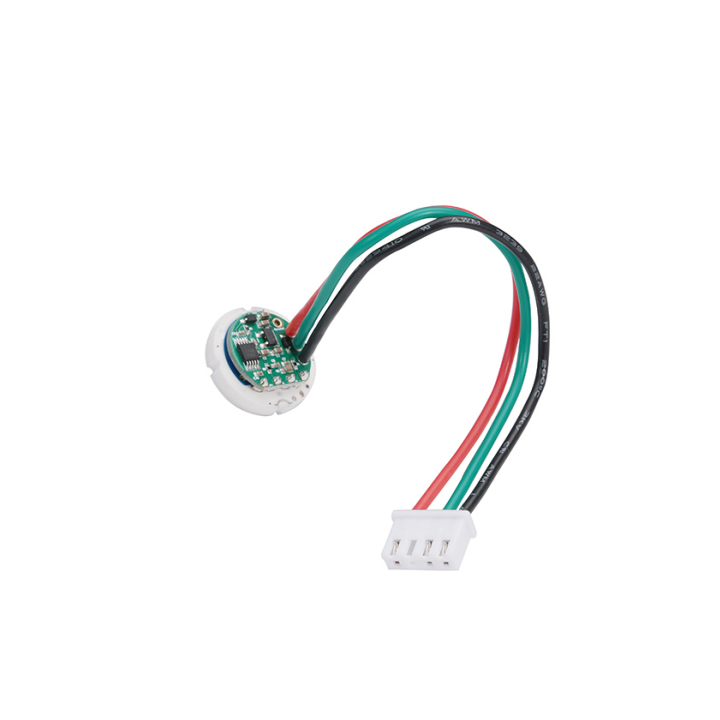

  • CPS18635MV1、CPS18350MV1

Description

  • Integrated design with high product stability
  • Supports customization of various output signals such as current, voltage, IIC, etc.
  • Easy and convenient to use
  • Excellent EMC protection and reverse polarity protection

    Produc Parameters

    Parameters

    Electrical Characterisitics

    Series Name

    CPS 18635MV1/CPS18350MV1

    Type

     Monolithic  module

    Size (diameter x height)

    φ18x6.35/φ18x3.5mm

    Supply voltage

    5.0V ±10% DC (optional 8-32V DC )

    Working current

    10 mA

    Output voltage

     0.5-4.5V DC

    Over voltage

     12V DC

    Operating temperature

    ‘-40 ~125

    Storage temperature

    ’-40~150

    Nonlinearity

    0.25% FS Max

    Hysteresis & repeatability

    0.25% FS Max

    Output accuracy

     ± 1.0% Vcc@0-70℃, ± 3.0% Vcc@-40 ~125

    Response time

     2mS

    Insulation resistance

     2KV

    Zero-point long term stability@25

    Zero@25℃:<0.25 FSO (no time accumulation

    Cycle life

    5 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35

    Working medium

    oil, water, gas, refrigerant, coolant, chemical solvents, detergents, etc



    Produc Range

    CPS18635MV1/CPS18350MV1  Series

    Range Parameters

    Thickness 18×6.35mm Series

    Product model

    Working pressure range

    Overload pressure

    Burst pressure (Bar)

    HXL-CPS18635G002MV1

    0-2Bar

    2

    4

    HXL-CPS18635G005MV1

    0-5Bar

    10

    15

    HXL-CPS18635G010MV1

    0-10Bar

    20

    30

    HXL-CPS18635G016MV1

    0-16Bar

    32

    48

    HXL-CPS18635G020MV1

    0-20Bar

    40

    60

    HXL-CPS18635G025MV1

    0-25Bar

    50

    75

    HXL-CPS18635G030MV1

    0-30Bar

    60

    90

    HXL-CPS18635G050MV1

    0-50Bar

    100

    150

    HXL-CPS18635G100MV1

    0-100Bar

    200

    300

    HXL-CPS18635G200MV1

    0-200Bar

    300

    500

    HXL-CPS18635G300MV1

    0-300Bar

    450

    600

    HXL-CPS18635G400MV1

    0-400Bar

    600

    /

    HXL-CPS18635G600MV1

    0-600Bar

    800

    /

    Thickness 18×3.50mm Series

    Product model

    Working pressure range

    Overload pressure

    Burst pressure(Bar)

    HXL-CPS18350G005MV1

    0-5Bar

    10

    15

    HXL-CPS18350G010MV1

    0-10Bar

    20

    30

    HXL-CPS18350G020MV1

    0-20Bar

    40

    60

    HXL-CPS18350G030MV1

    0-30Bar

    60

    90

    HXL-CPS18350G050MV1

    0-50Bar

    100

    150

    HXL-CPS18350G100MV1

    0-100Bar

    200

    300
