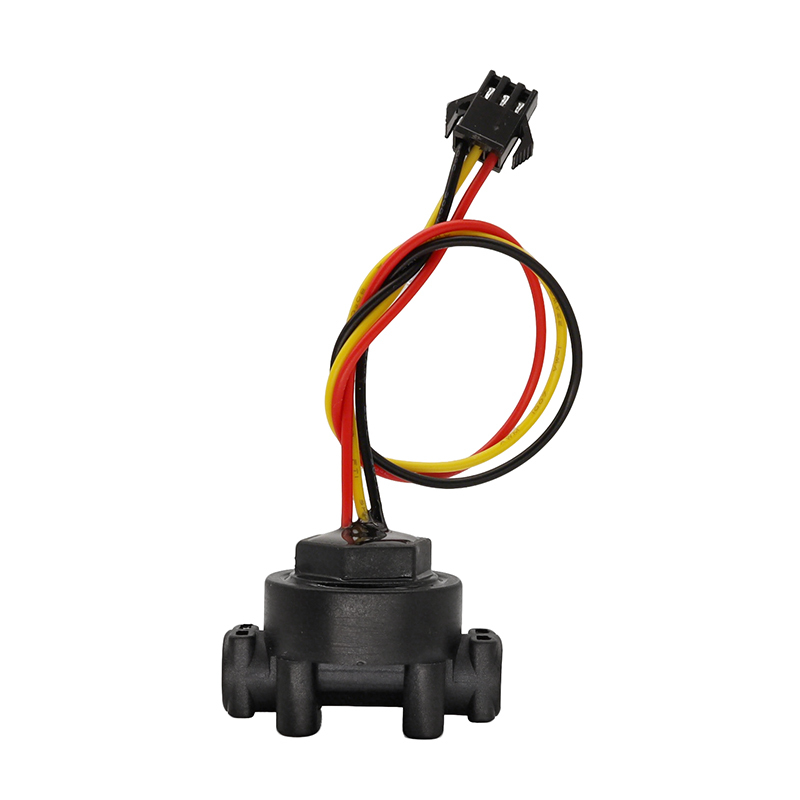

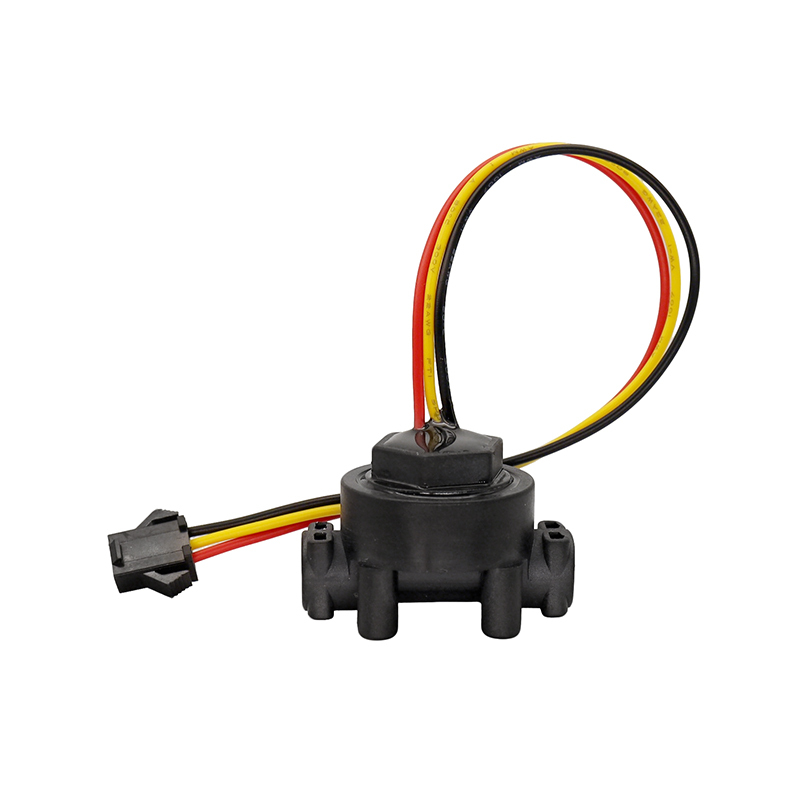

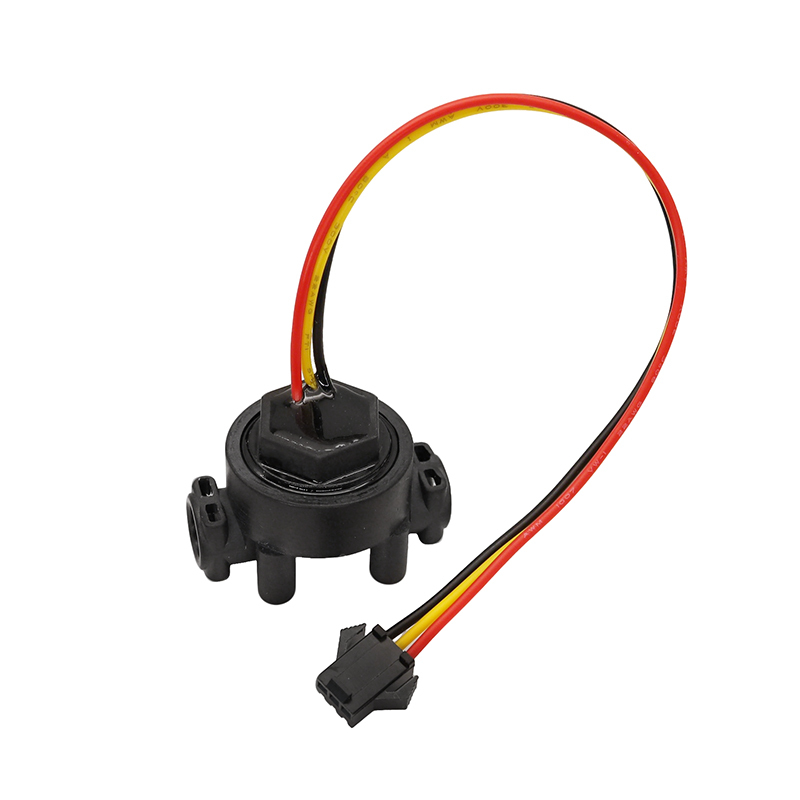

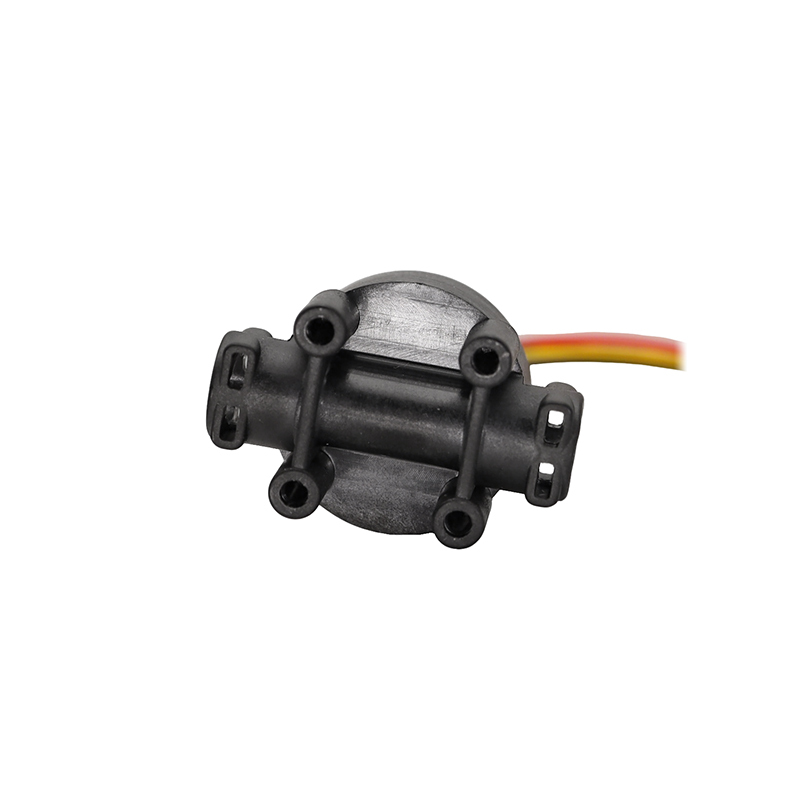

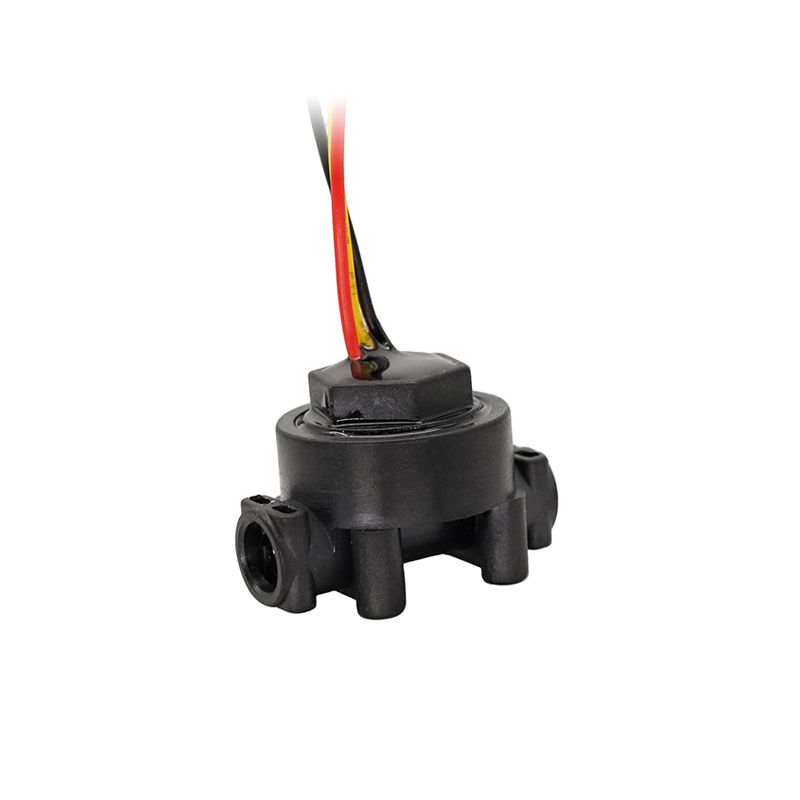

Coffee Machine Special Transmitter
* Wide Temperature Range,-20°c~150°C
* Compact Structure with Excellent Cost-Effectiveness
* Bayonet design for easy installation and removal
* Food-grade sealring, safe and reliable
* Responsive,ensuring consistent coffee quality

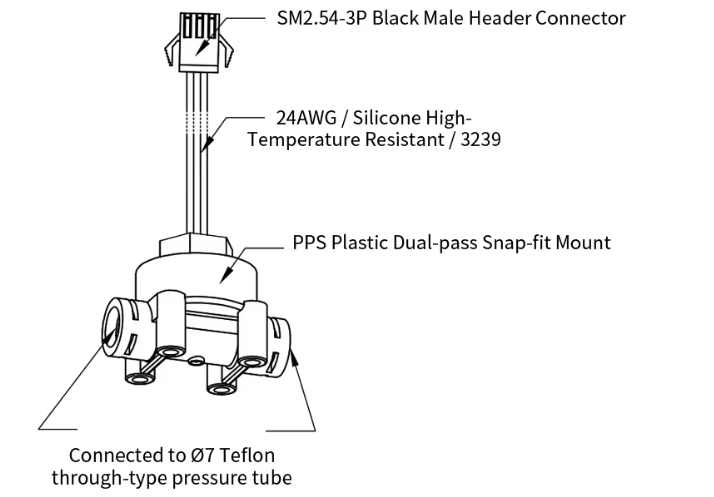

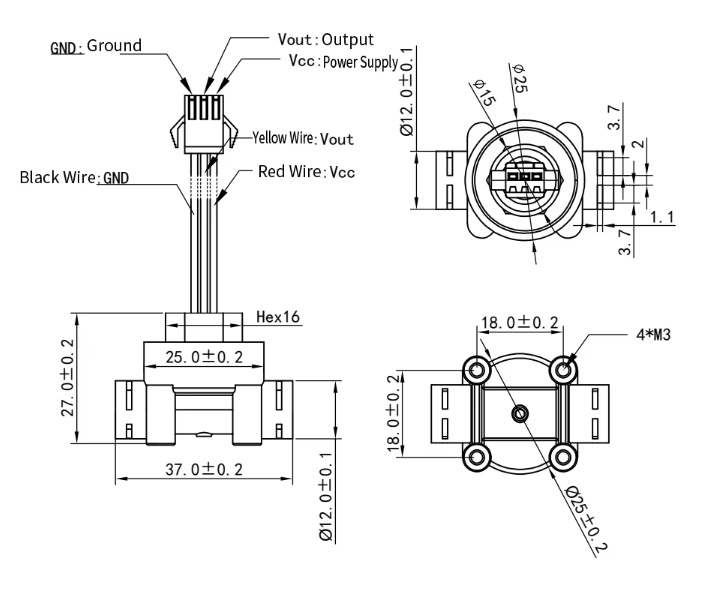

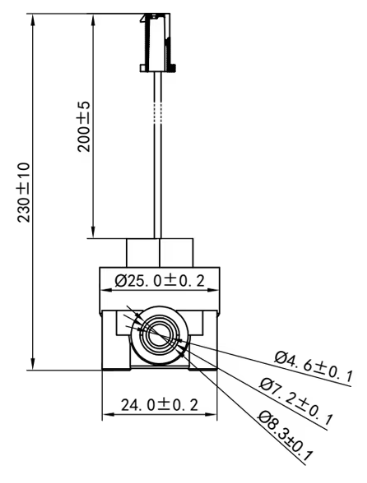

Product structure
Product Parameters
|
Pressure type
|
Gauge Pressure
|
|||
|
Range range
|
5-50 bar
|
|||
|
Accuracy
|
※士1.0%FS@15°C-35°C,2.0%FS@0-105°C,
3.0%FS@-40°C~150°C
|
|||
|
Electrical performance
|
Three wire system
|
|||
|
Output signal
|
※0.5-4.5VDC
|
|||
|
Power supply voltage
|
4.75-16.0V DC
|
|||
|
Working current
|
<5.0mA(Typ:1.5mA)
|
|||
|
Operating temperature
|
-20°C~150°C
|
|||
|
Storage temperature
|
-40°C~150°C
|
|||
|
Electrical connections
|
SM2.54-3P
|
|||
|
Pressure connection
|
Connected to 07 Teflon through-type pressure tube
|
|||
|
Sensor
|
Ceramic Flush Diaphragm(Standard)
|
|||
|
Housing
|
PPS plastic
|
|||
|
0-shaped sealing ring
|
Food-grade silicone rubber
|
|||
|
Clamping voltage
|
Low clamping voltage：0.25V; High clamping voltage:4.75V
|
|||
|
Withstand voltage
|
士20V DC
|
|||
|
Nonlinearity
|
0.25%FS Max
|
|||
|
Hysteresis&Repeatability
|
0.25%FS Max
|
|||
|
Pressure response time
|
<10ms
|
|||
|
Overload pressure
|
2xFS
|
|||
|
Burst pressure
|
5xFS
|
|||
|
Long term stability
|
Zero @25°C:<0.25%FS0(no time accumulation)
|
|||
|
Cycle life
|
>2 million pressure cycles @2-5Hz.0~full scale pressure~0.15~35°C
|
|||
|
Operating medium
|
Water,air,watervapor,coffee vapor,etc.
|
|||
|
Protection rating
|
IP6K8K
|
|||
FAQ
Q1: Are your company's products manufactured in-house? Is it a factory?
A: Yes, we have a fully automated production facility of over 4,000 square meters in Jiangxi.
Q2: What is the production capacity of the factory?
A: We produce up to 300,000 sets per month.
Q3: What is your typical lead time for delivery?
A: It ranges from 3 days to 30 days, depending on the order quantity and specific requirements.
Q4: What are the advantages of your products? How do they differ from others?
A: Our products have excellent consistency in quality due to our fully automated production lines, achieving a comprehensive TEB accuracy of up to 1%.
Q5: Do you have any R&D patents?
A: Yes, we have 25 proprietary patent applications, including 9 national patents.
Q6: Are your products specifically for gauge pressure?
A: We offer gauge pressure, absolute pressure, and sealed gauge pressure products.
Q7: Can your pressure transmitters be customized according to our requirements?
A: Yes, we support customization of parameters such as measurement range, output signal, thread interface and protection level to meet your personalized application needs.
Q8: What is the working principle of your ceramic pressure transmitter?
A: Our transmitter adopts a flush diaphragm ceramic pressure sensor as the core component. When the pressure acts on the ceramic diaphragm, it will produce a tiny deformation, which is converted into a standard electrical signal output through the Wheatstone bridge circuit, so that the pressure value can be measured accurately.
Q9: In addition to pressure transmitters, does your company manufacture any other products?
A: In addition to manufacturing transmitters, we also produce pressure sensor cells and modules.
