Product Parameters
| Parameters | Electrical Characterisitics | ||||

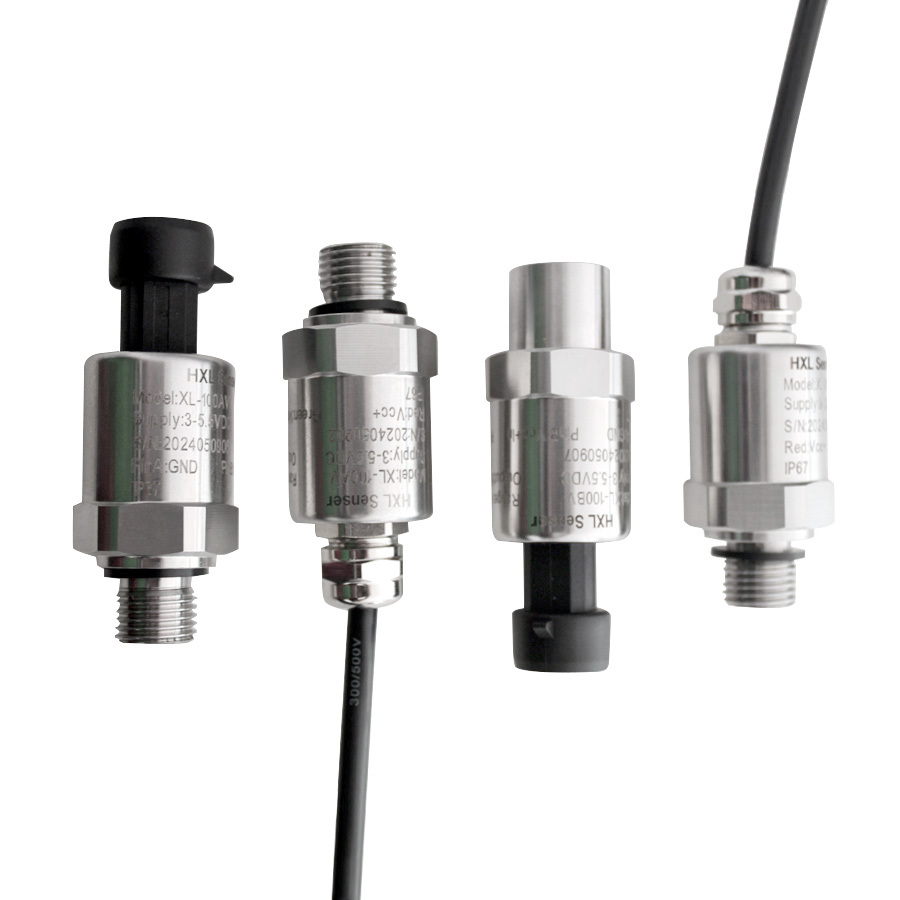

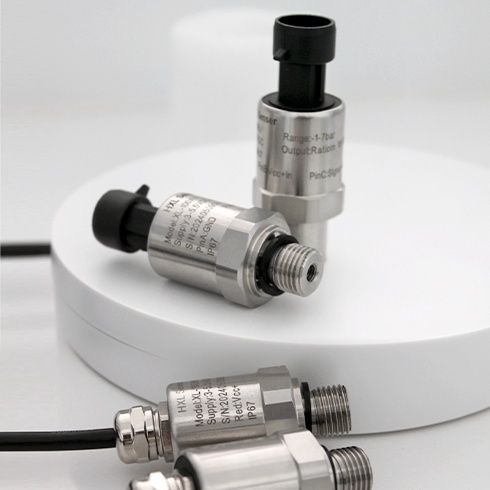

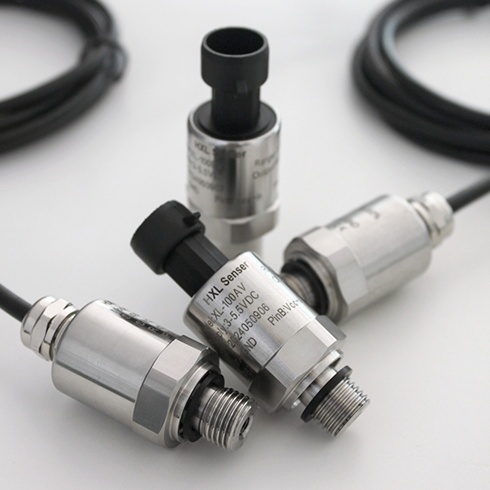

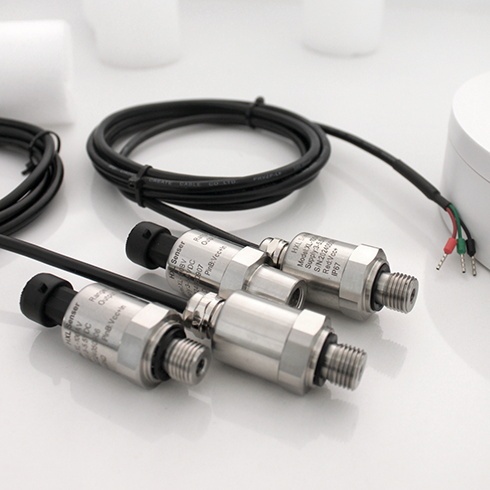

| Series Name | HXL-XL 100 | ||||
| Product Name | Pressure transducer | ||||
| Pressure Type | Gauge pressure/negative pressure, absolute pressure | ||||
| Range | -1-0-1...400 bar | ||||
| Accuracy | ≤ ± 0.5 % F.S(Routine); ≤ ±1%F.S; Customizable precision | ||||
| Electrical performance | Two wire system | Three wire system | |||
| Output signal | 4~20 mA | 0~5V | 0~10V | 0.5~4.5V | 10-90% ratio |
| Power supply voltage | 8-32V DC | 8~32V DC | 12~32V DC | 8~32V DC/5V DC | 3.3-5.5V DC |
| Operating temperature | -30 ℃~85℃ | ||||
| Storage temperature | -30 ℃~85℃ | ||||
| Electrical connections | Packard connector | 2L: IN=8/OUT=A | |||
| 3L:IN=B/ OUT=C/GND=A | |||||
| Straight connection | 2L:IN=VCC+ /IOUT=GND | ||||
| 3L:IN=VCC+/OUT=VOUT/GND | |||||
| Pressure connection | Internal thread | 7/16-20 UNF | |||
| 1/4'' NPT | |||||
| External thread | 7/16-20 UNF | ||||
| 1/4 -18 NPT | |||||
| 1/4''NPT | |||||
| G1/4'' | |||||
| 1/2'' NPT | |||||
| M20*1.5 | |||||
| Material quality | Housing | SUS304 SS | 316L SS (optional) | ||
| Sensor | Ceramics ( standard) | ||||
| O-shaped | NBR (standard) | ||||
| sealing ring | |||||
| Response time | ≤20 ms | ||||
| Overload pressure | 150% F.S. | ||||
| Long term stability | 0.1%F.S.±0.05%/Year | ||||
| Burst pressure | 400% F.S.(P ≤ 100 bar); 200% F.S. (P ≤ 400 bar) ; | ||||
| Insulation resistance | ＞ 100M Ω@50V DC | ||||
