Produc Parameters
| Parameters | Electrical Characterisitics |

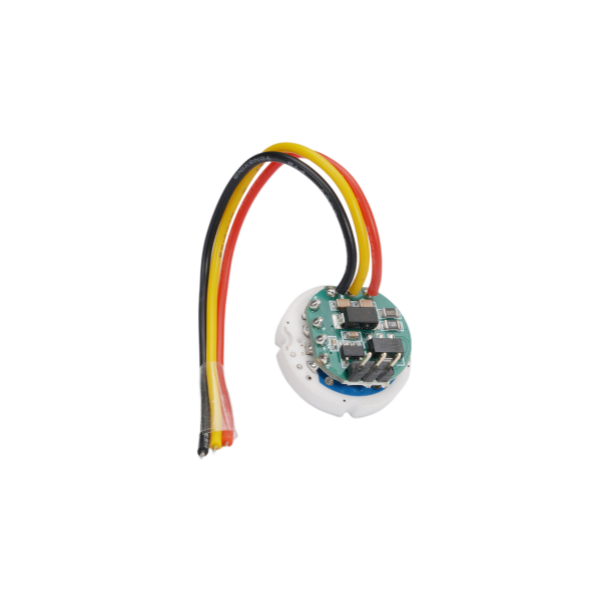

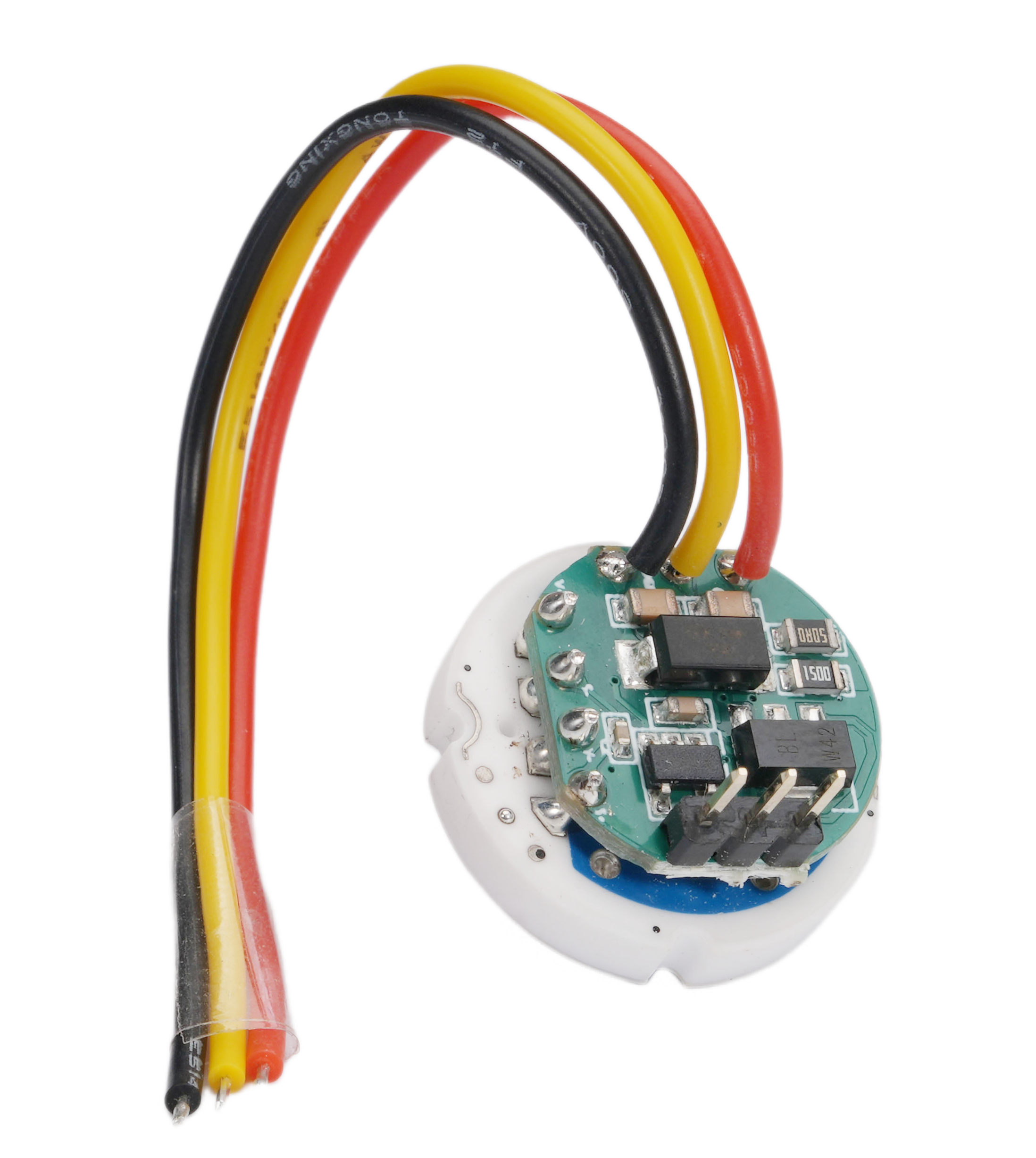

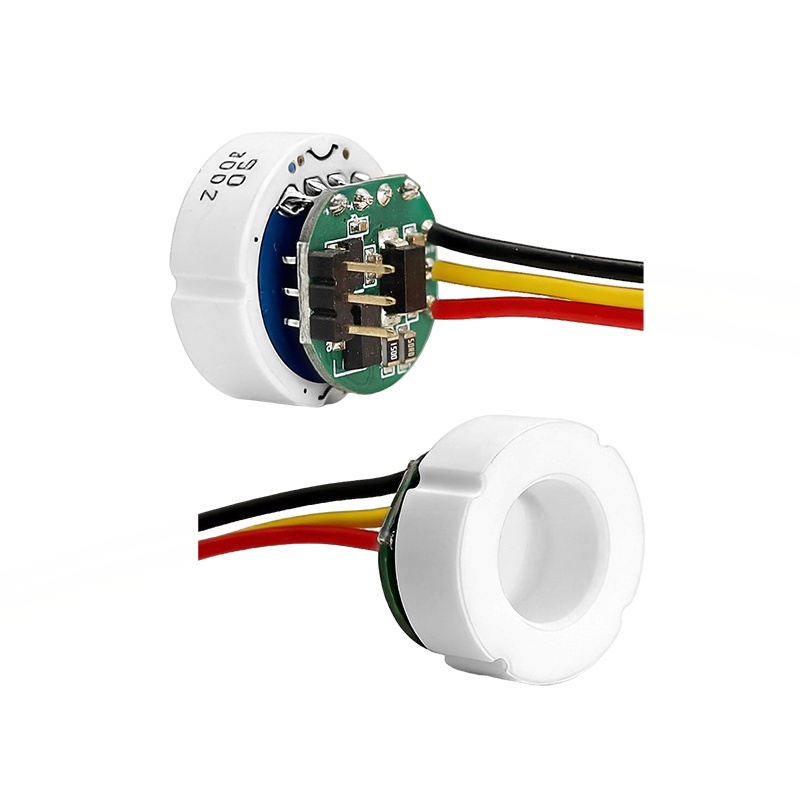

| Series Name | CPS 18635MI/CPS18350MI |
| Type | Monolithic module |
| Size (diameter x height) | φ18x6.35/φ18x3.5mm |
| Supply voltage | 12-30V DC |
| Working current | 4-20 mA |
| Operating temperature | ‘-40 ℃~125℃ |
| Storage temperature | ’-40℃~150 ℃ |
| Nonlinearity | 0.25% FS Max |
| Hysteresis & repeatability | 0.25% FS Max |
| Output accuracy | ※ ± 1.0% Vcc@0-70℃， ± 3.0% Vcc@-40 ℃~125℃ |
| Response time | ＜ 2mS |
| Insulation resistance | The voltage resistance between the Pin and housing is 250v AC, |
| insulation resisitance ＞ 100 MΩ | |
| Zero-point long term stability@25℃ | Zero@25℃：＜0.25 FSO (no time accumulation） |
| Cycle life | 2 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃ |
| Working medium | oil, water, gas, refrigerant, coolant, chemical solvents, detergents, etc |
| CPS18635MI/CPS18350MI | |||
| Range Parameters | |||
| Thickness 18×6.35mm Series | |||
| Product model | Working pressure range | Overload pressure | Burst pressure （Bar） |
| HXL-CPS18635G002MI | 0-2Bar | 2 | 4 |
| HXL-CPS18635G005MI | 0-5Bar | 10 | 15 |
| HXL-CPS18635G010MI | 0-10Bar | 20 | 30 |
| HXL-CPS18635G016MI | 0-16Bar | 32 | 48 |
| HXL-CPS18635G020MI | 0-20Bar | 40 | 60 |
| HXL-CPS18635G025MI | 0-25Bar | 50 | 75 |
| HXL-CPS18635G030MI | 0-30Bar | 60 | 90 |
| HXL-CPS18635G050MI | 0-50Bar | 100 | 150 |
| HXL-CPS18635G100MI | 0-100Bar | 200 | 300 |
| HXL-CPS18635G200MI | 0-200Bar | 300 | 500 |
| HXL-CPS18635G300MI | 0-300Bar | 450 | 600 |
| HXL-CPS18635G400MI | 0-400Bar | 600 | / |
| HXL-CPS18635G600MI | 0-600Bar | 800 | / |
| Thickness 18×3.50mm Series | |||
| Product model | Working pressure range | Overload pressure | Burst pressure(Bar) |
| HXL-CPS18350G005MI | 0-5Bar | 10 | 15 |
| HXL-CPS18350G010MI | 0-10Bar | 20 | 30 |
| HXL-CPS18350G020MI | 0-20Bar | 40 | 60 |
| HXL-CPS18350G030MI | 0-30Bar | 60 | 90 |
| HXL-CPS18350G050MI | 0-50Bar | 100 | 150 |
| HXL-CPS18350G100MI | 0-100Bar | 200 | 300 |
